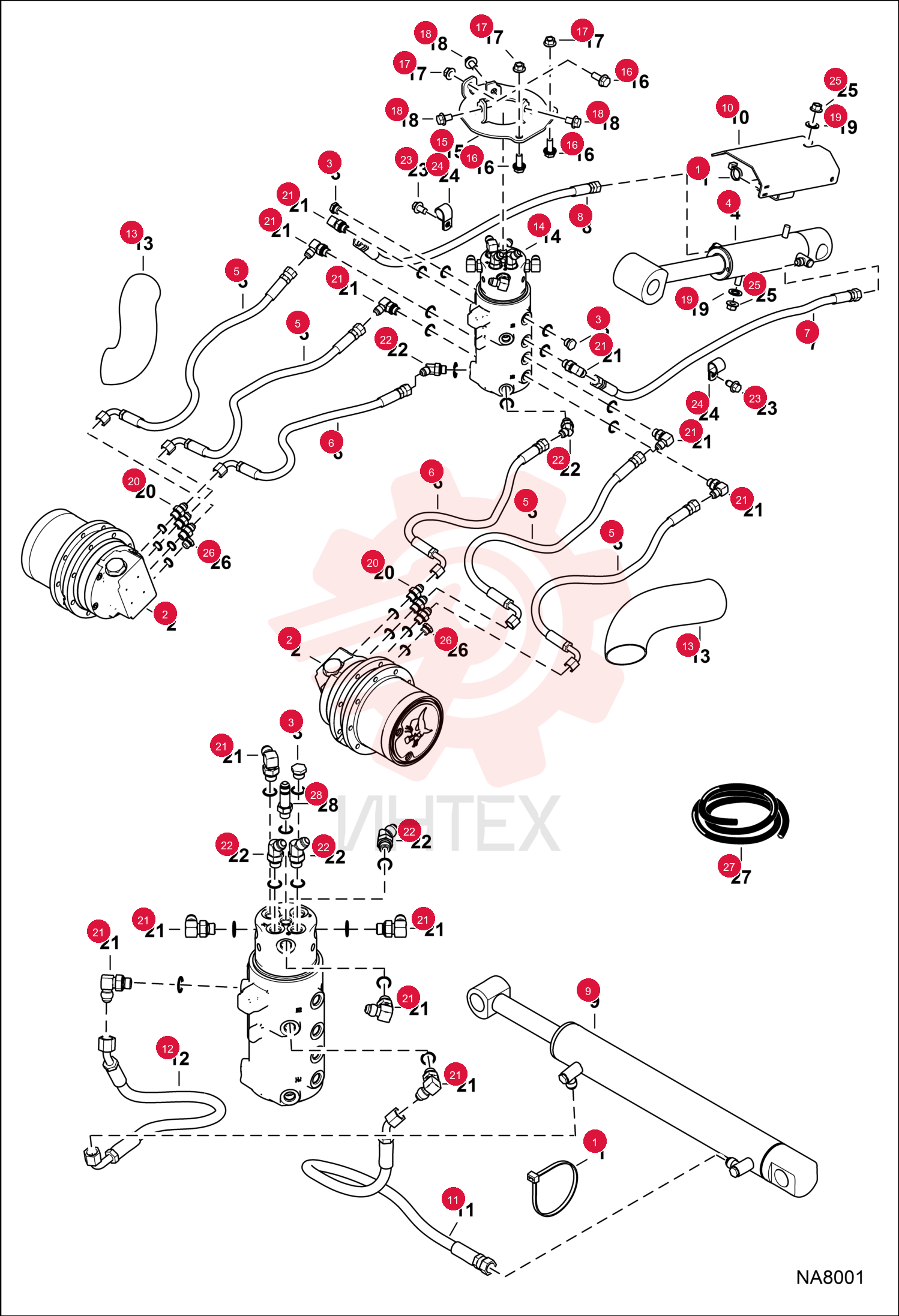

STRAP, TIE 6624289 (1)

STRAP, TIE 6624289 (1)

STRAP, TIE 6624289 (1)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6691106

  • 6691106 - MOTOR DRIVE
  • 1 speed

3 6812171

  • 6812171 - PLUG
  • W/ O-ring

4 75K6

  • 75K6 - O-RING

5 7103256

  • 7103256 - CYL ASSY 319 BLADE

6 7132564

  • 7132564 - HOSE ASSY

7 7132565

  • 7132565 - HOSE ASSY

8 7132568

  • 7132568 - HOSE HYDRAULIC ASSEMBLY

9 7132569

  • 7132569 - HOSE HYDRAULIC ASSEMBLY

10 7141954

  • 7141954 - CYLINDER ASSEMBLY

11 7142331

  • 7142331 - SHIELD CYL W/A

12 7150634

  • 7150634 - HOSE

13 7150635

  • 7150635 - HOSE

14 7156120

  • 7156120 - SWIVEL
  • HYD ASSY

15 7102237

  • 7102237 - SWIVEL

16 7164191

  • 7164191 - PLATE

17 7164841

  • 7164841 - SCREW

18 7164867

  • 7164867 - NUT

19 7183437

  • 7183437 - SCREW SELF LOCKING

20 15EM140

  • 15EM140 - WASHER

21 79K6

  • 79K6 - O RING 10

22 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR
  • Was 15KB606

23 79K6

  • 79K6 - O RING 10

24 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW
  • Was 17KB606

25 79K6

  • 79K6 - O RING 10

26 18KB0606

  • 18KB0606 - FITTING
  • HYD ELBOW
  • Was 18KB606

27 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

28 30H65

  • 30H65 - CLIP

29 43DM10

  • 43DM10 - NUT FLANGED HEX

30 79K6

  • 79K6 - O RING 10

31 24K5

  • 24K5 - PLUG

32 7154027

  • 7154027 - HOSE COVER BULK
  • sold per foot

33 79K6

  • 79K6 - O RING 10

34 16KB0606

  • 16KB0606 - FITTING
  • HYD CONNECTOR
  • - 1.56" length above nut - Use W/7226450 hose short drop

35 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR
  • - 0.56" length above nut - Use W/7199408 hose medium drop
