Bobcat
/
E08
/

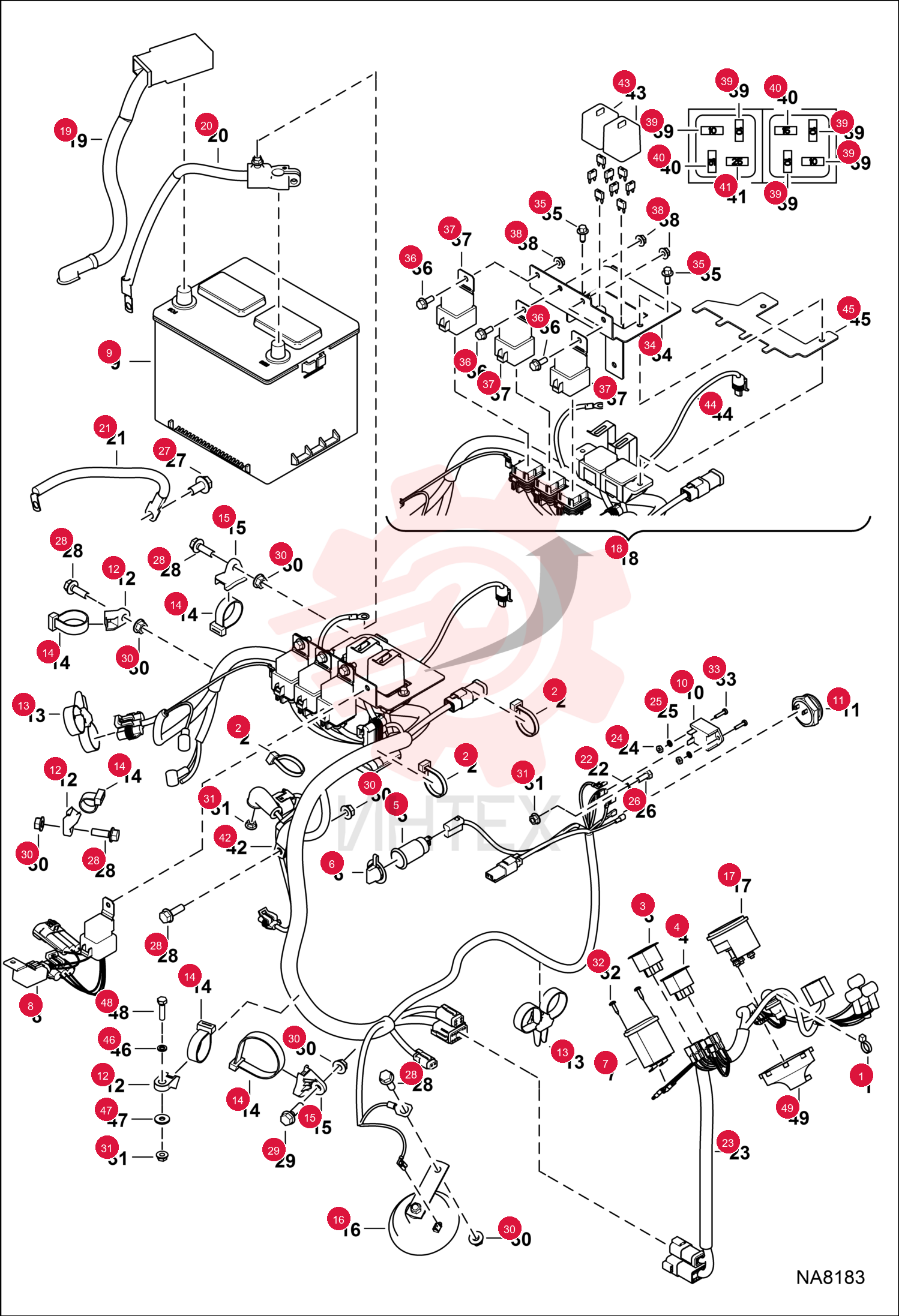

STRAP, TIE 10 6610510 (2)

STRAP, TIE 10 6610510 (2)

STRAP, TIE 10 6610510 (2)

1 6610510

  • 6610510 - STRAP
  • TIE 10

2 6624289

  • 6624289 - STRAP
  • TIE

3 6661598

  • 6661598 - LAMP

4 6661599

  • 6661599 - LAMP

5 6664223

  • 6664223 - OUTLET ELECTRICAL

6 6664224

  • 6664224 - CAP

7 6664886

  • 6664886 - METER HOUR

8 6669415

  • 6669415 - TIMER
  • SOLENOID

9 7304126

  • 7304126 - BATTERY DRY
  • - Was 6670251

10 6673122

  • 6673122 - REG.TIMER

11 6675705

  • 6675705 - ALARM

12 6678667

  • 6678667 - MOUNT

13 6678668

  • 6678668 - STRAP

14 6678669

  • 6678669 - STRAP T250 H/D

15 6678818

  • 6678818 - MOUNT

16 6691276

  • 6691276 - ALARM

17 7017075

  • 7017075 - GAUGE
  • FUEL

18 7141452

  • 7141452 - HARNESS
  • FRAME
  • W/Ref. 34-45

19 7247740

  • 7247740 - CABLE
  • POSITIVE
  • - Was 7141457

20 7224327

  • 7224327 - CABLE
  • NEGATIVE
  • - Was 7141458

21 7205941

  • 7205941 - CABLE
  • NEGATIVE
  • - Was 7141459

22 7156777

  • 7156777 - WASHER

23 7330651

  • 7330651 - HARNESS PANEL CONTROL
  • - Was 7181244

24 7193279

  • 7193279 - HARNESS PANEL
  • - Was 7181244

25 12D6

  • 12D6 - NUT HEX MACH SCREW

26 12E6

  • 12E6 - WASHER

27 1CM616

  • 1CM616 - SCREW HEX CAP

28 59CM1020

  • 59CM1020 - SCREW HX FLNG W/T8.8
  • - Was 29CM1020

29 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

30 29CM830

  • 29CM830 - SCREW HEX

31 43DM8

  • 43DM8 - NUT FLANGED HEX

32 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

33 58G610

  • 58G610 - SCREW PNH CRSEC TAP

34 87G610

  • 87G610 - SCREW

35 7134673

  • 7134673 - PLATE

36 6810157

  • 6810157 - SCREW

37 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

38 6670312

  • 6670312 - SWITCH
  • MAGNETIC

39 43DM6

  • 43DM6 - NUT FLANGED HEX

40 6707620

  • 6707620 - FUSE
  • 10A MINI 5
  • 10A

41 6707621

  • 6707621 - FUSE
  • 15A MINI 5
  • 15A

42 6707623

  • 6707623 - FUSE
  • 25A MINI 5
  • 25A

43 30H69

  • 30H69 - CLAMP
  • INSULATED

44 7255121

  • 7255121 - PLATE

45 15EM60

  • 15EM60 - WASHER

46 17EM60

  • 17EM60 - WASHER

47 1CM625

  • 1CM625 - BOLT

48 6679027

  • 6679027 - CLAMP GAUGE
