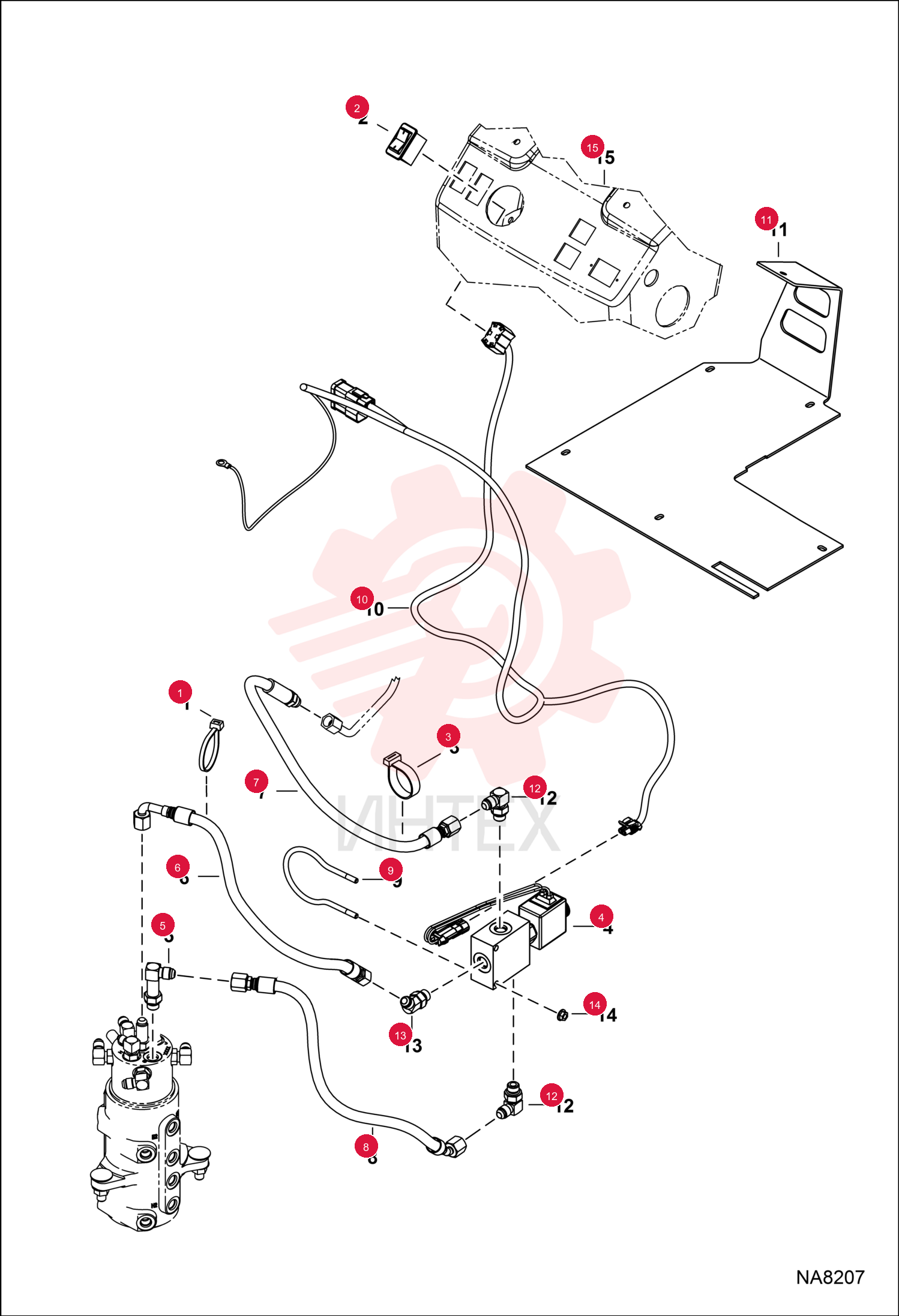

STRAP, TIE 6624289 (9)

STRAP, TIE 6624289 (9)

STRAP, TIE 6624289 (9)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6674025

  • 6674025 - SWITCH

3 6678669

  • 6678669 - STRAP T250 H/D

4 6686508

  • 6686508 - BLOCK

5 6812815

  • 6812815 - ADAPTER

6 7229263

  • 7229263 - HOSE
  • HYD

7 7229264

  • 7229264 - HOSE
  • HYD

8 7229265

  • 7229265 - HOSE
  • HYD

9 7230474

  • 7230474 - BRACKET

10 7230593

  • 7230593 - HARNESS
  • EXPANDER TRACK

11 7230652

  • 7230652 - FLOORBOARD
  • LEFT

12 79K6

  • 79K6 - O RING 10

13 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

14 79K6

  • 79K6 - O RING 10

15 18KB0606

  • 18KB0606 - FITTING
  • HYD ELBOW

16 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

17 7151904

  • 7151904 - COVER
