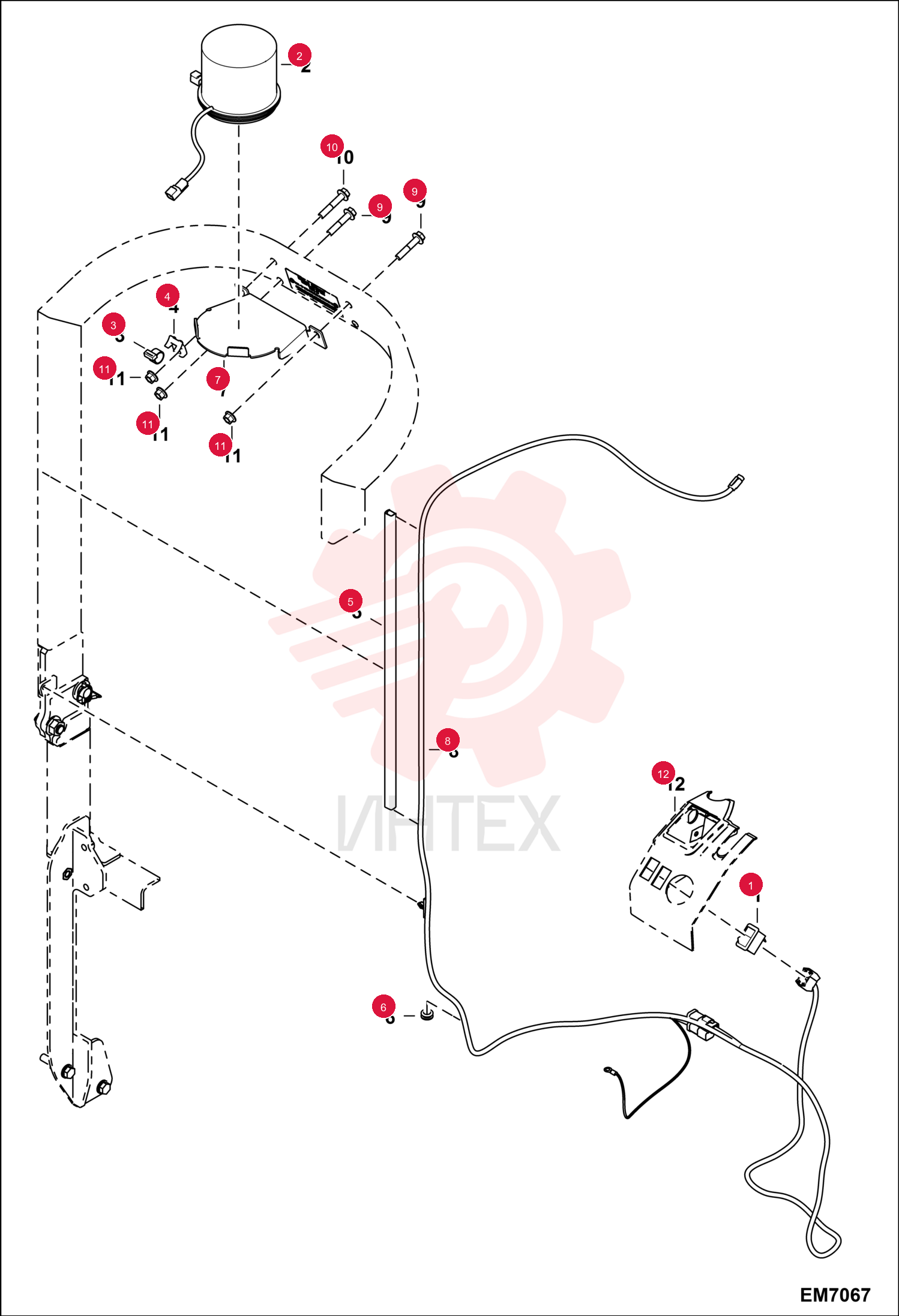

SWITCH 6668816 (4)

SWITCH 6668816 (4)

SWITCH 6668816 (4)

1 6668816

  • 6668816 - SWITCH

2 7241140

  • 7241140 - LIGHT
  • STROBE
  • Was 7219903

3 7256347

  • 7256347 - LENS
  • REFLECTIVE
  • Was 6697797

4 6678669

  • 6678669 - STRAP T250 H/D

5 6679034

  • 6679034 - MOUNT

6 6682741

  • 6682741 - RETAINER

7 7155871

  • 7155871 - HOLDER BEACON

8 7160072

  • 7160072 - HARNESS BEACON/STRB
  • W/Ref. 6

9 29CM1050

  • 29CM1050 - BOLT

10 29CM1055

  • 29CM1055 - BOLT

11 43DM10

  • 43DM10 - NUT FLANGED HEX

12 7234481

  • 7234481 - COVER
  • CONSOLE
