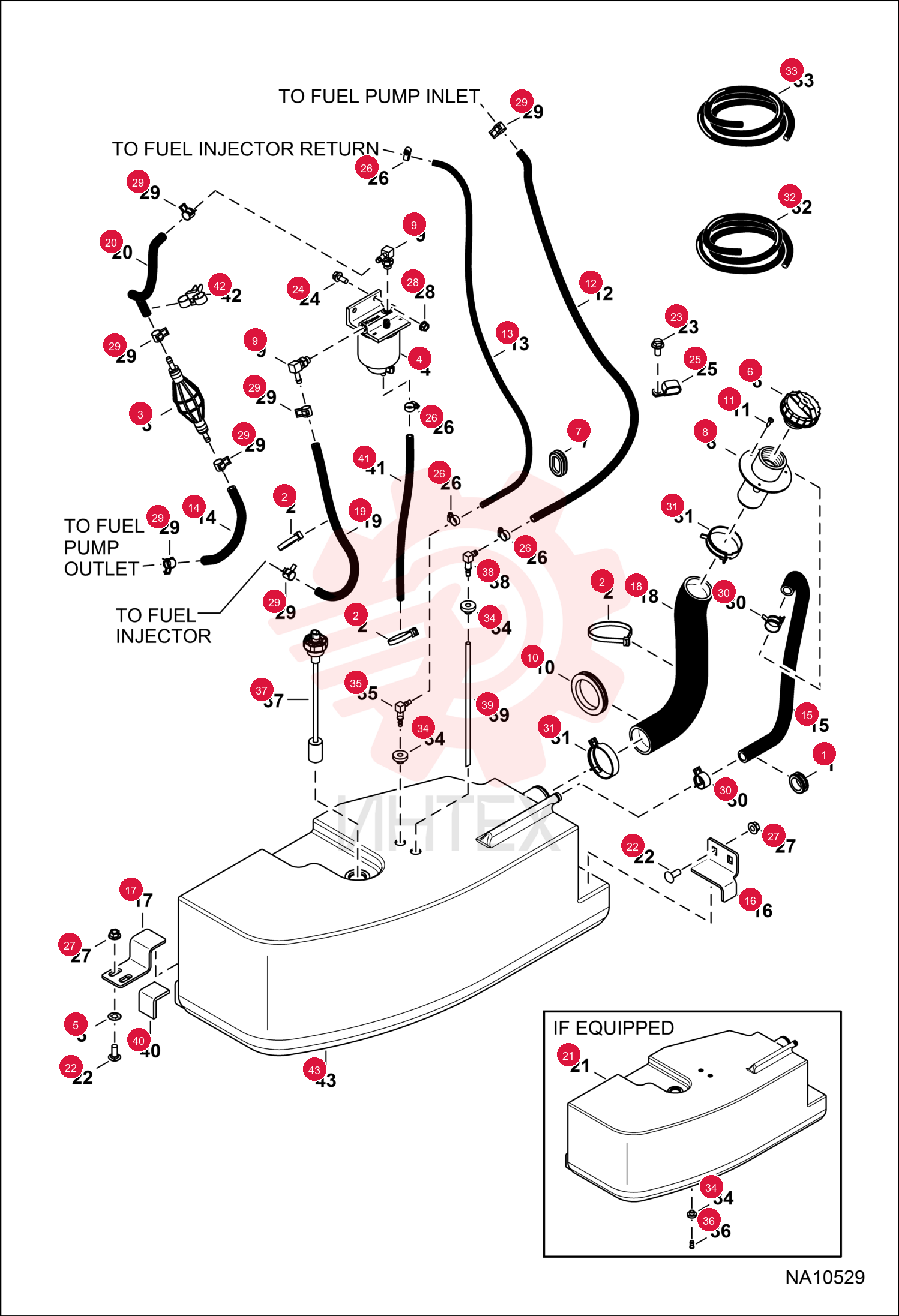

GROMMET 6515603 (3)

GROMMET 6515603 (3)

GROMMET 6515603 (3)

1 6515603

  • 6515603 - GROMMET

2 6624289

  • 6624289 - STRAP
  • TIE

3 6667170

  • 6667170 - PUMP
  • PRIMER HAND

4 6667352

  • 6667352 - FILTER
  • FUEL W/SEPARATOR 12

5 6667353

  • 6667353 - FILTER
  • FUEL ASSY

6 6674264

  • 6674264 - RETAINER BOLT

7 7023550

  • 7023550 - CAP
  • DIESEL LOCKING
  • black - key same as ignition

8 6681886

  • 6681886 - GROMMET

9 6701449

  • 6701449 - FLR.TUBE

10 79K5

  • 79K5 - O RING 10

11 6715183

  • 6715183 - ELBOW 90 STRTHD TUBE

12 6807283

  • 6807283 - GROMMET

13 7106279

  • 7106279 - SCREW

14 7148493

  • 7148493 - HOSE
  • FUEL

15 7163720

  • 7163720 - BRACKET
  • TANK FUEL

16 7163721

  • 7163721 - BRACKET
  • TANK FUEL

17 7164301

  • 7164301 - HOSE
  • FUEL FORMED

18 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

19 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

20 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

21 31H31

  • 31H31 - CLIP

22 42HS04

  • 42HS04 - CLAMP HOSE TYPE M

23 43DM10

  • 43DM10 - NUT FLANGED HEX

24 43DM8

  • 43DM8 - NUT FLANGED HEX

25 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

26 5HM23

  • 5HM23 - HOSE CLMP CONST TENS

27 5HM58

  • 5HM58 - CLAMP

28 6578169

  • 6578169 - HOSE BULK
  • sold per foot - 0.19" ID

29 6577822

  • 6577822 - HOSE BULK
  • sold per foot

30 7273691

  • 7273691 - GROMMET
  • Use W/ 19
  • 05 mm (0.75") dia hole

31 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5
  • Use W/ 13mm (.51") dia hole

32 6598908

  • 6598908 - ELBOW BARBED

33 6599645

  • 6599645 - PLUG
  • STEEL
  • if equipped

34 6717579

  • 6717579 - GASKET

35 7286464

  • 7286464 - SENSOR
  • FUEL
  • Was 7179839

36 6666302

  • 6666302 - ELBOW BARBED

37 6683892

  • 6683892 - TUBE
  • FUEL

38 6578278

  • 6578278 - BUMP.PAD

39 6678668

  • 6678668 - STRAP

40 7345450

  • 7345450 - TANK FUEL
  • Was 7320369
