Bobcat
/
E55
/

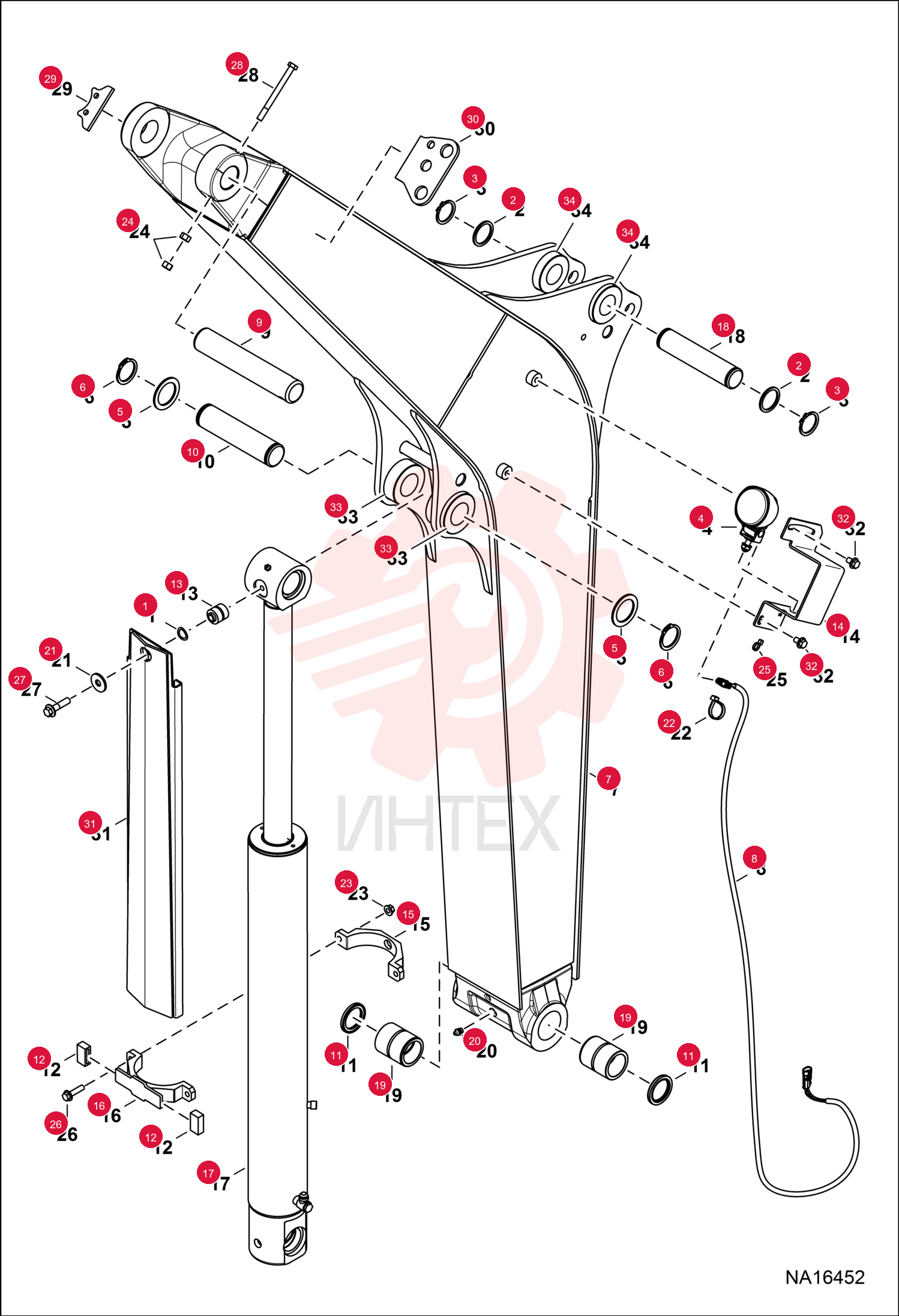

WASHER 6536803 (5)

WASHER 6536803 (5)

WASHER 6536803 (5)

1 6536803

  • 6536803 - WASHER

2 6628547

  • 6628547 - WASHER

3 6668787

  • 6668787 - RING
  • SNAP

4 7335876

  • 7335876 - LIGHT LED

5 6812687

  • 6812687 - WASHER

6 6812713

  • 6812713 - RING

7 7269991

  • 7269991 - BOOM
  • W/A
  • Also Order Ref. 11 & 20

8 7306924

  • 7306924 - HARNESS BOOM LIGHT

9 7143012

  • 7143012 - PIN
  • PIVOT

10 7270796

  • 7270796 - PIN

11 7143551

  • 7143551 - SEAL
  • DUST

12 7282910

  • 7282910 - SLIDE WEAR

13 7332829

  • 7332829 - SPACER SHIELD

14 7343746

  • 7343746 - BRACKET BOOM WORK LIGHT

15 7339010

  • 7339010 - CLAMP SHIELD
  • use with 7332828

16 7332828

  • 7332828 - CLAMP SHIELD
  • use with - 7339010

17 7270797

  • 7270797 - PIN

18 7188685

  • 7188685 - BUSHING
  • WEAR

19 10H25

  • 10H25 - FTG GREASE STRAIGHT

20 17EM120

  • 17EM120 - WASHER

21 6610510

  • 6610510 - STRAP
  • TIE 10

22 29CM1040

  • 29CM1040 - SCREW

23 4DM12

  • 4DM12 - NUT HEX

24 6624289

  • 6624289 - STRAP
  • TIE

25 43DM10

  • 43DM10 - NUT FLANGED HEX

26 29CM1250

  • 29CM1250 - BOLT

27 7CM12140

  • 7CM12140 - BOLT

28 7198271

  • 7198271 - BRACKET
  • MOUNTING
  • weld-on

29 7198270

  • 7198270 - PLATE
  • MOUNT COUPLER
  • weld-on

30 7332681

  • 7332681 - SHIELD CYLINDER

31 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

32 7269994

  • 7269994 - BUSHING
  • PIVOT
  • weld-on

33 7269995

  • 7269995 - BUSHING
  • PIVOT
  • weld-on
