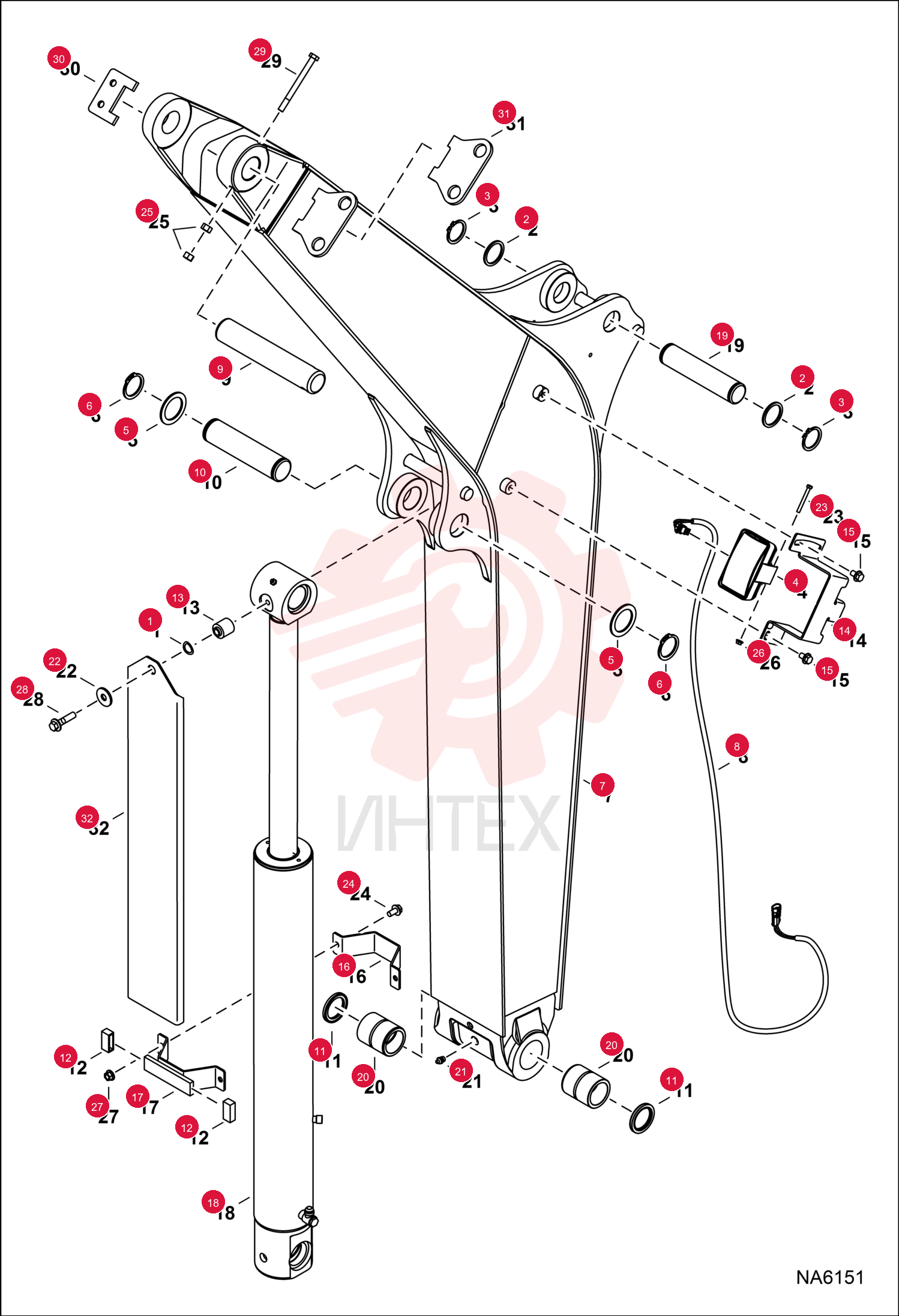

WASHER 6536803 (1)
1 6536803
- 6536803 - WASHER
2 7235285
- 7235285 - WASHER
- Was 6628547
3 6668787
- 6668787 - RING
- SNAP
4 6692400
- 6692400 - BULB
5 6675938
- 6675938 - LIGHT
- SEALED BEAM
- NLA - Was 7018038
6 7235285
- 7235285 - WASHER
- Use W/Ref. 10 7234086 PIN
7 6812687
- 6812687 - WASHER
- Use W/Ref. 10 7143038 PIN
8 6668787
- 6668787 - RING
- SNAP
- Use W/Ref. 10 7234086 PIN
9 6812713
- 6812713 - RING
- Use W/Ref. 10 7143038 PIN
10 7199697
- 7199697 - BOOM
- ARM DIPPER
- Also Order Ref. 11 & 20
11 7135895
- 7135895 - HARNESS
12 7143012
- 7143012 - PIN
- PIVOT
13 7234086
- 7234086 - PIN
- Was 7143038
14 7143551
- 7143551 - SEAL
- DUST
15 7144089
- 7144089 - COVER
16 7166239
- 7166239 - SPACER
17 7237068
- 7237068 - BRACKET
- EMEA Only - Was 7239093
18 7195369
- 7195369 - BRACKET
- LIGHT WORKING
- NA Only
19 29CM1016
- 29CM1016 - SCREW FLANGE HEX CAP
20 7165968
- 7165968 - CLAMP
- HALF
21 7165965
- 7165965 - CLAMP
- HALF
22 7179001
- 7179001 - PIN
- PIVOT
23 7188685
- 7188685 - BUSHING
- WEAR
24 10H25
- 10H25 - FTG GREASE STRAIGHT
25 17EM120
- 17EM120 - WASHER
26 1CM655
- 1CM655 - SCREW
27 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
28 4DM12
- 4DM12 - NUT HEX
29 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
30 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
31 59CM1250
- 59CM1250 - BOLT
- FLANGE
32 7CM12140
- 7CM12140 - BOLT
33 7198272
- 7198272 - PLATE
- MOUNT COUPLER
- bolt-on - Was 7153112
34 7198270
- 7198270 - PLATE
- MOUNT COUPLER
- weld-on - Was 7122584
35 7165962
- 7165962 - SHIELD
- CYL
