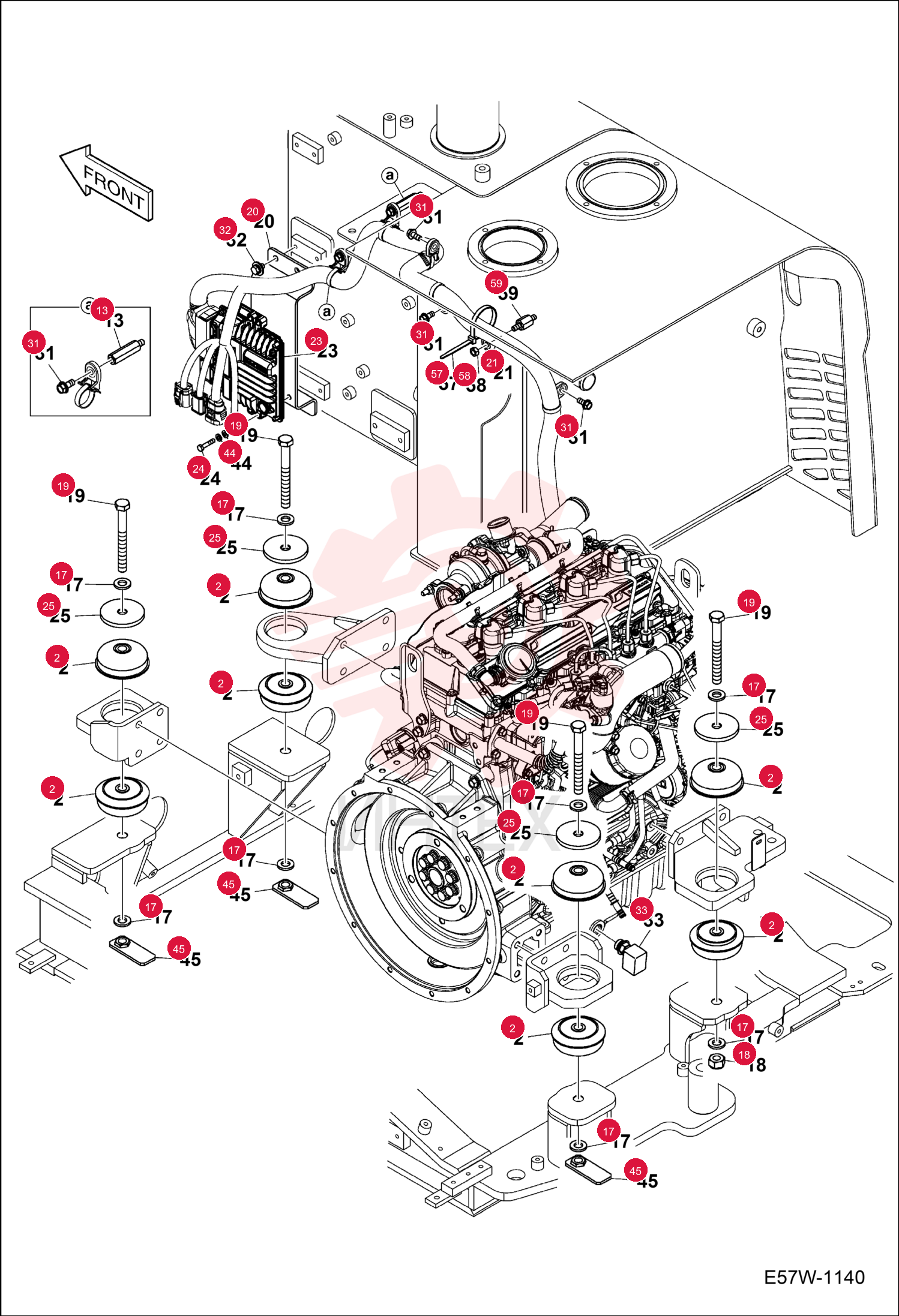

MOUNT ENGINE RUBBER 7006377

MOUNT ENGINE RUBBER 7006377

MOUNT ENGINE RUBBER 7006377

1 7006377

  • 7006377 - MOUNT ENGINE RUBBER

2 7004554

  • 7004554 - BOLT STUD

3 7288593

  • 7288593 - WASHER

4 7005141

  • 7005141 - NUT LOCK

5 7016952

  • 7016952 - BOLT

6 7287418

  • 7287418 - BRACKET
  • ENG

7 7030172

  • 7030172 - BRACKET

8 7335387

  • 7335387 - ECU ENGINE

9 7287661

  • 7287661 - ECU

10 7007610

  • 7007610 - BOLT

11 7006463

  • 7006463 - WASHER

12 7287330

  • 7287330 - BOLT

13 7005131

  • 7005131 - BOLT M8X1.25X15

14 7287662

  • 7287662 - FITTING
  • HYD ELBOW

15 7030042

  • 7030042 - WASHER

16 7288234

  • 7288234 - SUPPORT

17 7030173

  • 7030173 - STRAP
  • TIE

18 7007796

  • 7007796 - NUT

19 7287379

  • 7287379 - BOLT
  • STUD
