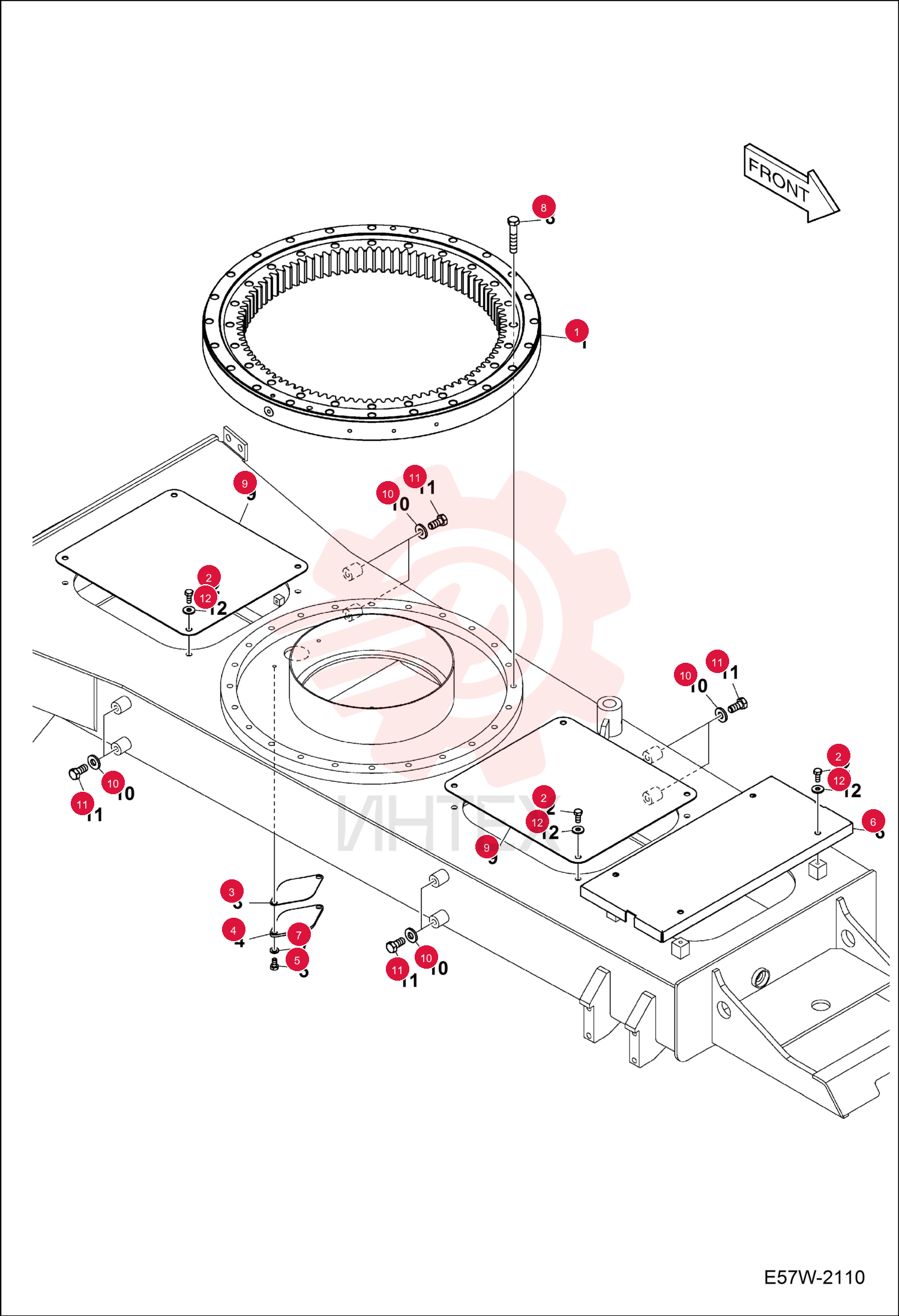

SLEW RING 7024759

SLEW RING 7024759

SLEW RING 7024759

1 7024759

  • 7024759 - SLEW RING

2 7024778

  • 7024778 - SEAL

3 7007628

  • 7007628 - BOLT

4 7004643

  • 7004643 - SEAL

5 7287569

  • 7287569 - COVER

6 7007626

  • 7007626 - BOLT

7 7287547

  • 7287547 - COVER

8 7007818

  • 7007818 - WASHER PLAIN M10

9 7288588

  • 7288588 - WASHER

10 7007705

  • 7007705 - BOLT

11 7287548

  • 7287548 - COVER

12 7004468

  • 7004468 - WASHER

13 7007647

  • 7007647 - BOLT M16X2.0X35

14 7288590

  • 7288590 - WASHER
