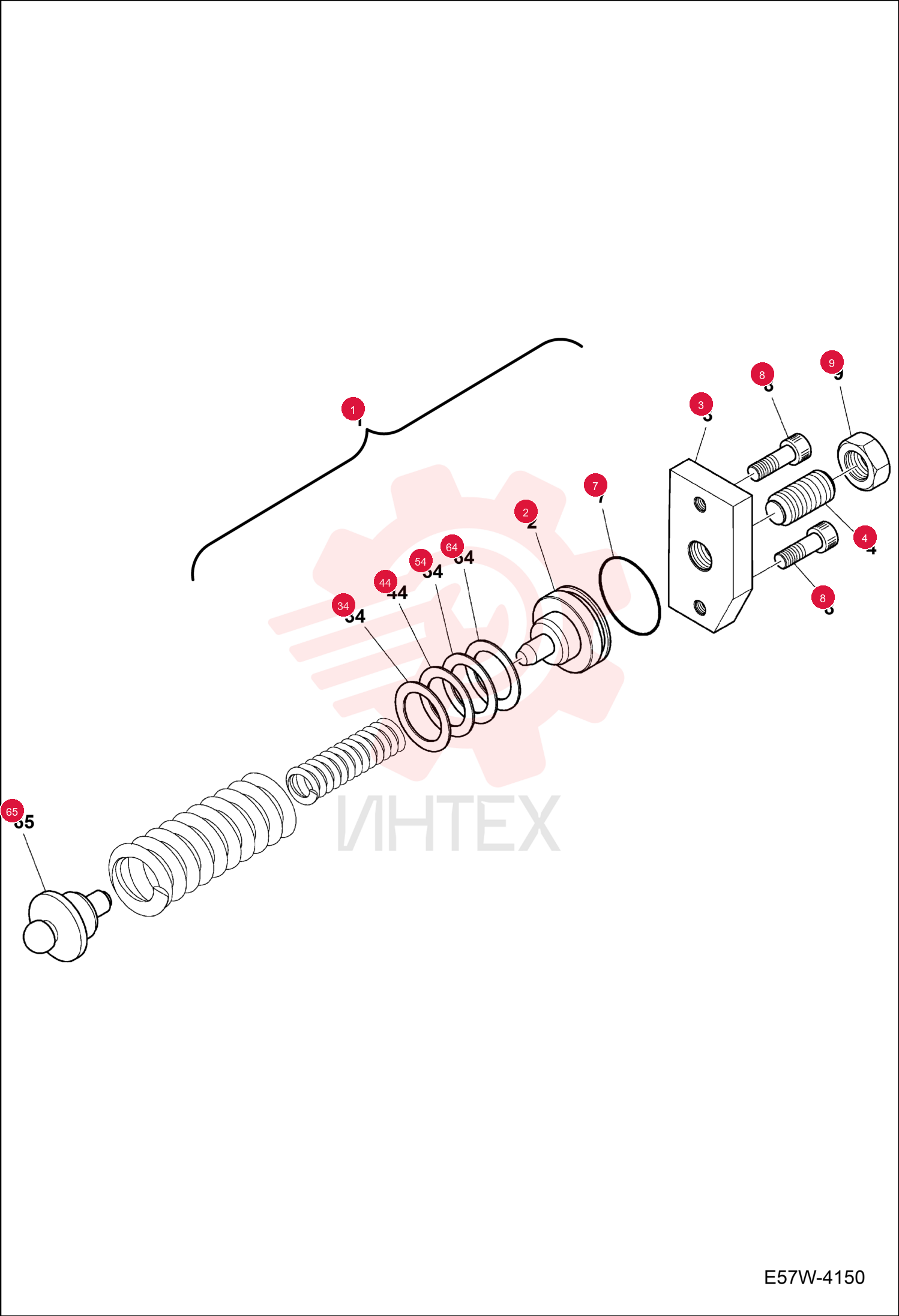

SPRING ASSEMBLY 7007447

SPRING ASSEMBLY 7007447

SPRING ASSEMBLY 7007447

1 7007447

  • 7007447 - SPRING ASSEMBLY
  • Ref. 2-65

2 7296305

  • 7296305 - SPRING
  • SEAT

3 7006956

  • 7006956 - COVER

4 7004106

  • 7004106 - SCREW ADJUSTING

5 7007923

  • 7007923 - O-RING

6 7007739

  • 7007739 - BOLT SOCKET M8X30

7 7007793

  • 7007793 - NUT M16X14

8 7296293

  • 7296293 - SHIM

9 7004008

  • 7004008 - SHIM 26.5X38X1

10 7006959

  • 7006959 - SHIM 26.5X38X0.5

11 7004009

  • 7004009 - SHIM 26.5X38X2

12 7004409

  • 7004409 - SEAT SPRING
