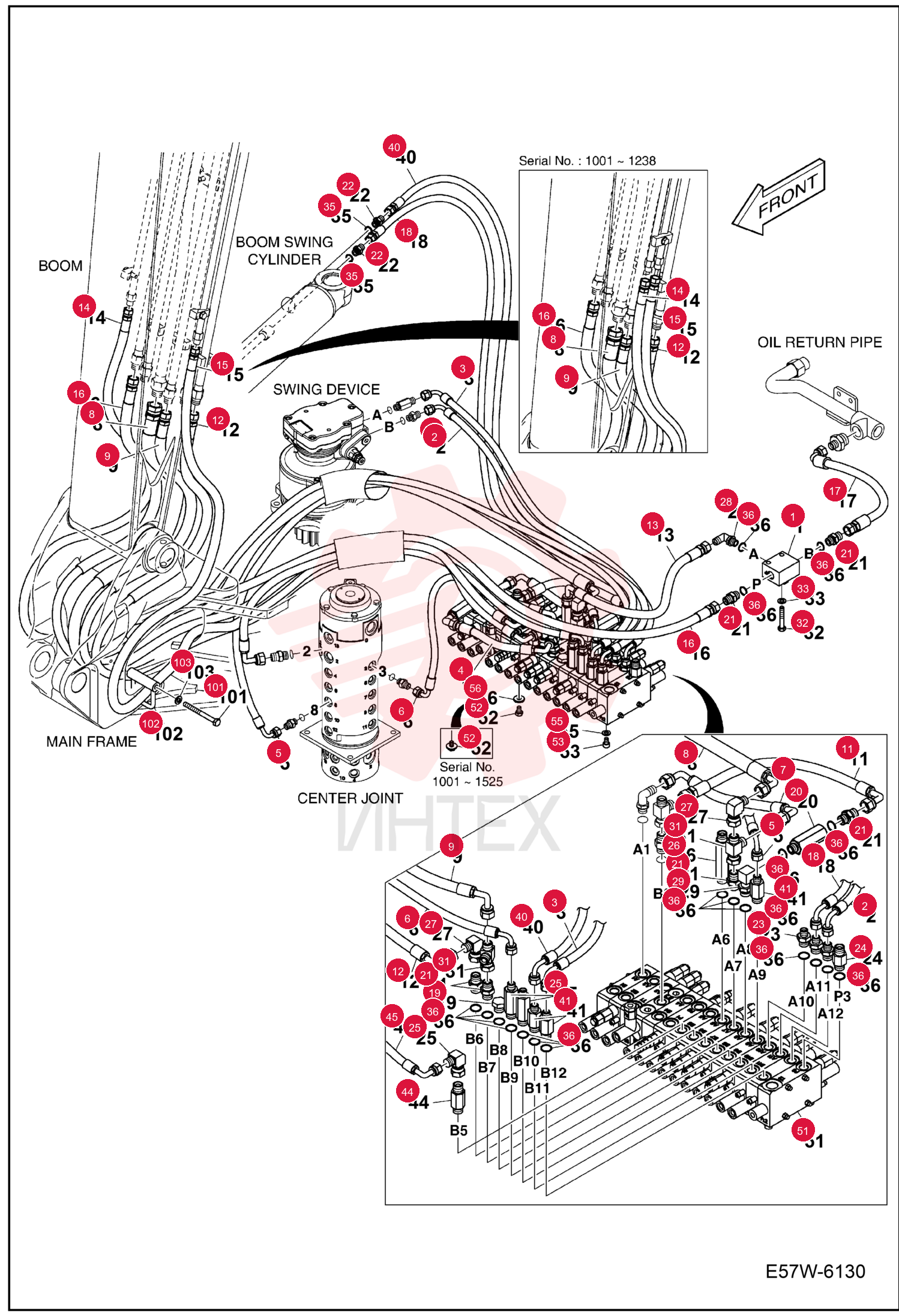

VALVE SWITCH 7004976 (1)

VALVE SWITCH 7004976 (1)

VALVE SWITCH 7004976 (1)

1 7004976

  • 7004976 - VALVE SWITCH

2 7287920

  • 7287920 - HOSE
  • HYD

3 7287921

  • 7287921 - HOSE
  • HYD

4 7287922

  • 7287922 - HOSE
  • HYD

5 7287833

  • 7287833 - HOSE
  • HYD

6 7287923

  • 7287923 - HOSE
  • HYD

7 7323553

  • 7323553 - HOSE HYDRAULIC

8 7287906

  • 7287906 - HOSE
  • HYD

9 7352662

  • 7352662 - HOSE HYDRAULIC

10 7352677

  • 7352677 - HOSE HYDRAULIC

11 7287908

  • 7287908 - HOSE
  • HYD

12 7352665

  • 7352665 - HOSE HYDRAULIC

13 7287909

  • 7287909 - HOSE
  • HYD

14 7287927

  • 7287927 - HOSE
  • HYD

15 7287928

  • 7287928 - HOSE
  • HYD

16 7287929

  • 7287929 - HOSE
  • HYD

17 7352676

  • 7352676 - HOSE HYDRAULIC

18 7287911

  • 7287911 - HOSE
  • HYD

19 7287930

  • 7287930 - HOSE
  • HYD

20 7004736

  • 7004736 - PLUG

21 7015589

  • 7015589 - VALVE
  • CHECK

22 7004699

  • 7004699 - ADAPTER

23 7004700

  • 7004700 - ADAPTER

24 7004685

  • 7004685 - ADAPTER

25 7004691

  • 7004691 - ADAPTER

26 7287274

  • 7287274 - ADAPTER

27 7287270

  • 7287270 - ADAPTER

28 7003958

  • 7003958 - ELBOW

29 7003958

  • 7003958 - ELBOW

30 7004710

  • 7004710 - ELBOW

31 7004753

  • 7004753 - ELBOW

32 7003961

  • 7003961 - TEE UNION

33 7007675

  • 7007675 - BOLT

34 7288588

  • 7288588 - WASHER

35 7007909

  • 7007909 - O-RING

36 7007911

  • 7007911 - O-RING

37 7287912

  • 7287912 - HOSE
  • HYD

38 7287289

  • 7287289 - ADAPTER

39 7287271

  • 7287271 - ADAPTER

40 7287825

  • 7287825 - HOSE
  • HYD

41 7288567

  • 7288567 - VALVE
  • CONTROL

42 7287359

  • 7287359 - BOLT

43 7323554

  • 7323554 - BOLT HEX

44 7007744

  • 7007744 - BOLT

45 7288588

  • 7288588 - WASHER

46 7288590

  • 7288590 - WASHER

47 7287350

  • 7287350 - BOLT

48 7287501

  • 7287501 - CLAMP

49 7288588

  • 7288588 - WASHER
