Bobcat
/
E57W
/

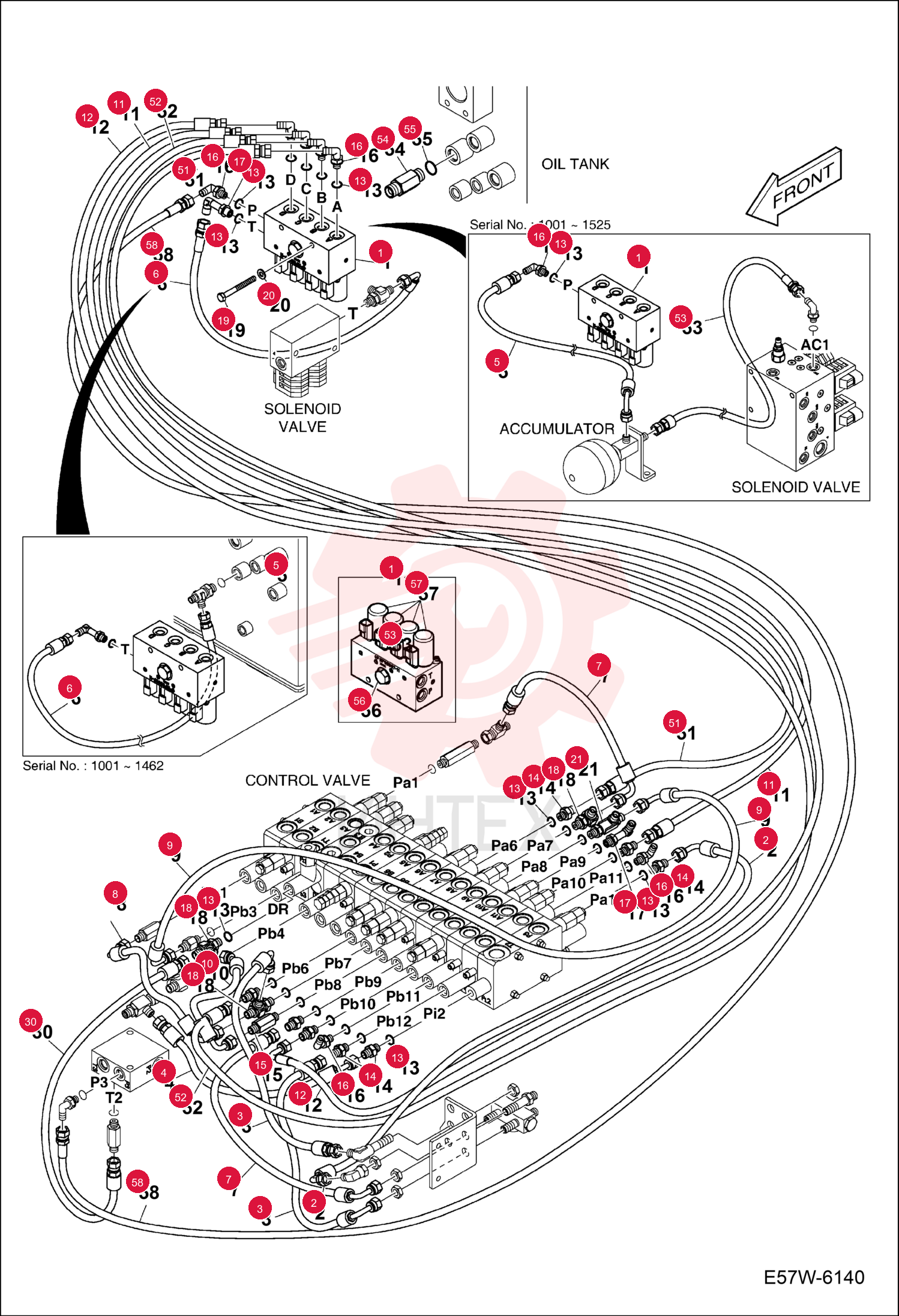

VALVE PRESSURE REDUCING 7028846

VALVE PRESSURE REDUCING 7028846

VALVE PRESSURE REDUCING 7028846

1 7028846

  • 7028846 - VALVE PRESSURE REDUCING
  • W/Ref. 56 & 57

2 7287913

  • 7287913 - HOSE
  • HYD

3 7005352

  • 7005352 - HOSE

4 7352670

  • 7352670 - HOSE HYDRAULIC

5 7005263

  • 7005263 - HOSE

6 7287855

  • 7287855 - HOSE
  • HYD

7 7313835

  • 7313835 - HOSE HYDRAULIC

8 7019193

  • 7019193 - HAMMER

9 7005358

  • 7005358 - HOSE PF1/4-330L

10 7005251

  • 7005251 - HOSE 310L

11 7287852

  • 7287852 - HOSE
  • HYD

12 7352669

  • 7352669 - HOSE HYDRAULIC

13 7287915

  • 7287915 - HOSE
  • HYD

14 7287931

  • 7287931 - HOSE
  • HYD

15 7005319

  • 7005319 - HOSE

16 7007906

  • 7007906 - O-RING

17 7004683

  • 7004683 - ADAPTER

18 7004692

  • 7004692 - ADAPTER

19 7004713

  • 7004713 - ELBOW

20 7022863

  • 7022863 - ELBOW

21 7004738

  • 7004738 - TEE

22 7007665

  • 7007665 - BOLT

23 7278246

  • 7278246 - WASHER
  • Was 7288582

24 7288535

  • 7288535 - FITTING
  • HYD TEE

25 7005475

  • 7005475 - HOSE

26 7287916

  • 7287916 - HOSE
  • HYD

27 7287917

  • 7287917 - HOSE
  • HYD

28 7287857

  • 7287857 - HOSE
  • HYD

29 7287271

  • 7287271 - ADAPTER

30 7007911

  • 7007911 - O-RING

31 7028873

  • 7028873 - SCREEN

32 7020878

  • 7020878 - PROPORTIONAL SOLENOID
  • Was 7028845

33 7323555

  • 7323555 - HOSE HYDRAULIC
