Bobcat
/
E57W
/

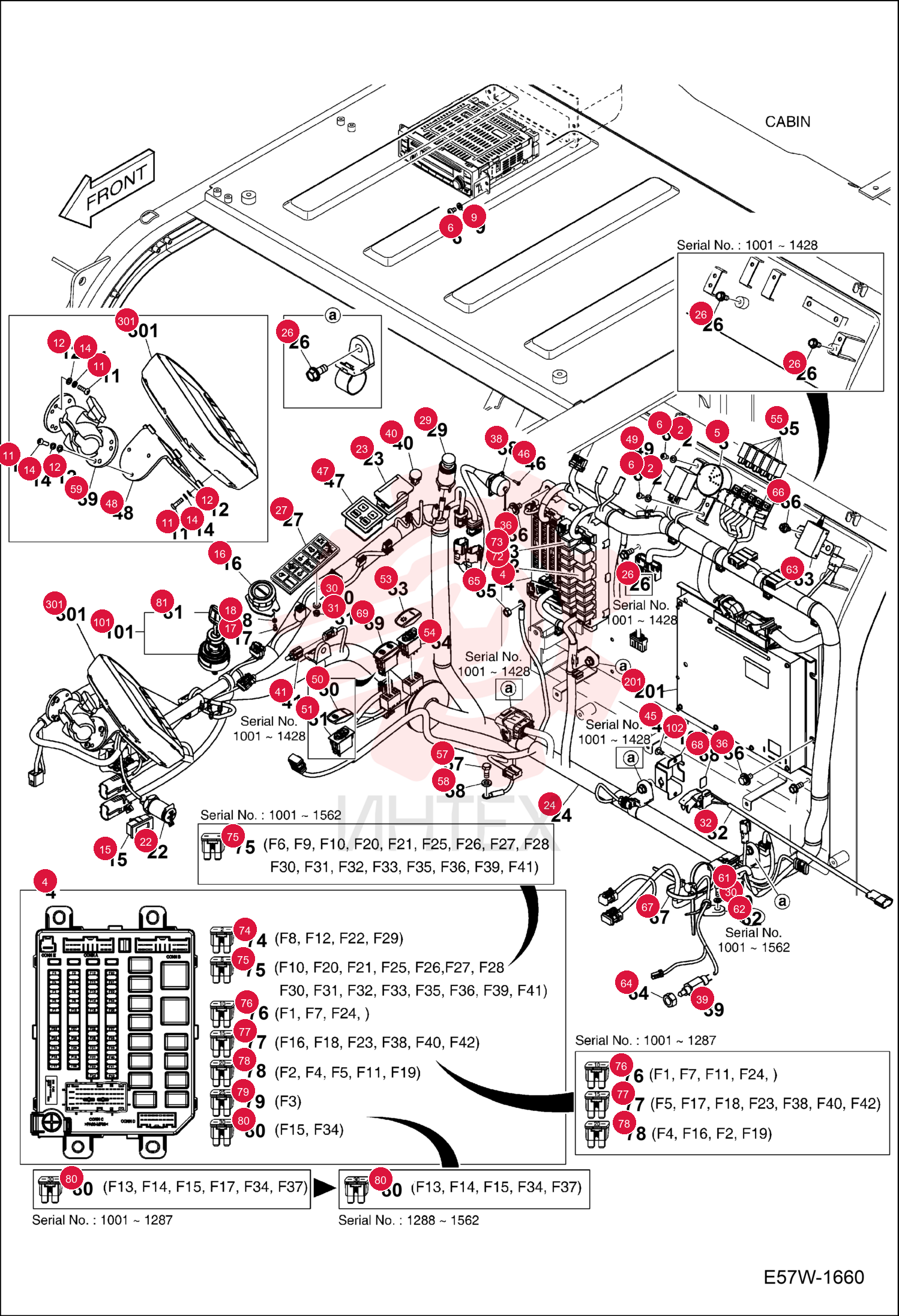

WASHER, SPRING 7007833 (1)

WASHER, SPRING 7007833 (1)

WASHER, SPRING 7007833 (1)

1 7007833

  • 7007833 - WASHER
  • SPRING

2 7312077

  • 7312077 - BOX FUSE

3 7287385

  • 7287385 - BOX
  • FUSE
  • Ref. 72-80

4 7319355

  • 7319355 - BOX FUSE

5 7004890

  • 7004890 - ALARM PILOT

6 7007784

  • 7007784 - SCREW M6X1.0X10

7 7007828

  • 7007828 - WASHER SPRING

8 7007782

  • 7007782 - BOLT

9 7007810

  • 7007810 - WASHER

10 7007832

  • 7007832 - WASHER SPRING

11 7296221

  • 7296221 - HOURMETER

12 7287643

  • 7287643 - CONTROL

13 7007777

  • 7007777 - BOLT

14 7007826

  • 7007826 - WASHER SPRING

15 7029399

  • 7029399 - SOCKET
  • POWER

16 7029010

  • 7029010 - CONNECTOR
  • ELECTRICAL

17 7287776

  • 7287776 - HARNESS
  • CAB

18 7312078

  • 7312078 - HARNESS CAB

19 7325847

  • 7325847 - HARNESS CAB

20 7287330

  • 7287330 - BOLT

21 7287330

  • 7287330 - BOLT

22 7288245

  • 7288245 - SWITCH

23 7023173

  • 7023173 - LIGHTER
  • CIGAR

24 7007814

  • 7007814 - WASHER

25 7007795

  • 7007795 - NUT

26 7288238

  • 7288238 - SWITCH
  • EMERGENCY

27 7005129

  • 7005129 - BOLT SET

28 7327839

  • 7327839 - HARNESS JUMPER
  • Was 7287770

29 7288527

  • 7288527 - SWITCH

30 7288184

  • 7288184 - SENSOR

31 7288179

  • 7288179 - SENSOR

32 7004547

  • 7004547 - BOLT

33 7288168

  • 7288168 - SCREW

34 7288044

  • 7288044 - PANEL
  • CAB

35 7287437

  • 7287437 - BRACKET
  • MONITOR

36 7296198

  • 7296198 - CONTROL

37 7287264

  • 7287264 - ACTUATOR

38 7288523

  • 7288523 - SWITCH
  • ROCKER

39 7029445

  • 7029445 - SWITCH ROCKER

40 7029451

  • 7029451 - SWITCH
  • ROCKER

41 7017375

  • 7017375 - RELAY

42 7004546

  • 7004546 - BOLT

43 7004515

  • 7004515 - WASHER

44 7287408

  • 7287408 - BRACKET
  • MOUNTING

45 7288165

  • 7288165 - SCREW

46 7287515

  • 7287515 - CLIP

47 7287299

  • 7287299 - MODULE

48 7368833

  • 7368833 - NUT HEX
  • Was 7007800

49 7007796

  • 7007796 - NUT

50 7275655

  • 7275655 - BOLT

51 7288539

  • 7288539 - STRAP
  • TIE

52 7327840

  • 7327840 - PLATE NAME

53 7335399

  • 7335399 - SWITCH BRAKE SAFETY

54 7288135

  • 7288135 - RELAY

55 7288135

  • 7288135 - RELAY

56 7017375

  • 7017375 - RELAY

57 7288507

  • 7288507 - FUSE
  • 2 AMP

58 7287719

  • 7287719 - FUSE
  • 5 AMP

59 7287719

  • 7287719 - FUSE
  • 5 AMP

60 7287713

  • 7287713 - FUSE
  • 10 AMP

61 7287713

  • 7287713 - FUSE
  • 10 AMP

62 7287714

  • 7287714 - FUSE
  • 15 AMP

63 7287714

  • 7287714 - FUSE
  • 15 AMP

64 7287715

  • 7287715 - FUSE
  • 20 AMP

65 7287718

  • 7287718 - FUSE
  • 30 AMP

66 7287716

  • 7287716 - FUSE
  • 25 AMP

67 7287718

  • 7287718 - FUSE
  • 30 AMP

68 7287718

  • 7287718 - FUSE
  • 30 AMP

69 7287718

  • 7287718 - FUSE
  • 30 AMP

70 7006802

  • 7006802 - KEY SWITCH STARTER

71 7006801

  • 7006801 - SWITCH STARTER
  • W/Ref. 81

72 7287416

  • 7287416 - BRACKET

73 7287534

  • 7287534 - CONTROLLER

74 7325848

  • 7325848 - CONTROLLER DRIVE

75 7325849

  • 7325849 - PANEL CONTROL
