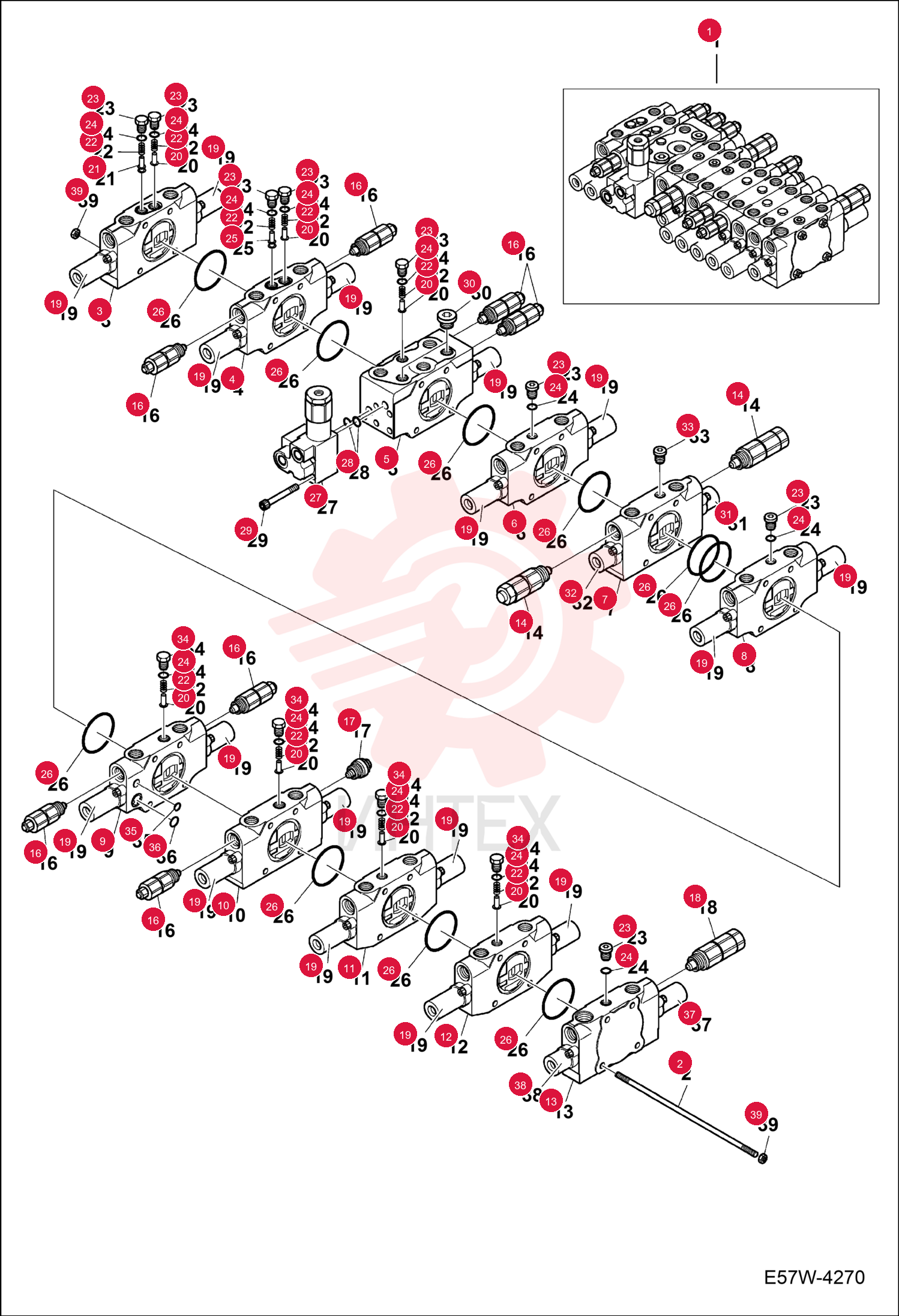

VALVE, CONTROL 7300048

VALVE, CONTROL 7300048

VALVE, CONTROL 7300048

1 7300048

  • 7300048 - VALVE
  • CONTROL
  • Ref. 2-39

2 7296306

  • 7296306 - ROD
  • TIE

3 7296153

  • 7296153 - SECTION
  • VALVE
  • Ref. 19-24

4 7296158

  • 7296158 - SECTION
  • VALVE
  • Ref. 25 & 26

5 7296156

  • 7296156 - SECTION
  • VALVE
  • Ref. 27-30

6 7296162

  • 7296162 - SECTION
  • VALVE

7 7007010

  • 7007010 - BLOCK ASSY-INLET
  • Ref. 31-33

8 7296161

  • 7296161 - SECTION
  • VALVE

9 7296154

  • 7296154 - SECTION
  • VALVE
  • Ref. 34-36

10 7296157

  • 7296157 - SECTION
  • VALVE

11 7296159

  • 7296159 - SECTION
  • VALVE

12 7296160

  • 7296160 - SECTION
  • VALVE

13 7020839

  • 7020839 - SECTION
  • VALVE
  • Ref. 37 & 38

14 7296312

  • 7296312 - VALVE
  • RELIEF

15 7296314

  • 7296314 - VALVE
  • RELIEF

16 7006944

  • 7006944 - VALVE SHUT OFF

17 7296313

  • 7296313 - VALVE
  • RELIEF

18 7300036

  • 7300036 - BONNET
  • NSS

19 7006935

  • 7006935 - ORIFICE POPPET

20 7296343

  • 7296343 - POPPET

21 7006936

  • 7006936 - SPRING

22 7006939

  • 7006939 - PLUG

23 7006934

  • 7006934 - ORING

24 7296342

  • 7296342 - POPPET

25 7007937

  • 7007937 - O-RING

26 7006938

  • 7006938 - VALVE ANTI-DRIFT

27 7006937

  • 7006937 - ORING

28 7296349

  • 7296349 - BOLT

29 7003956

  • 7003956 - PLUG

30 7300037

  • 7300037 - BONNET
  • NSS

31 7300038

  • 7300038 - BONNET
  • NSS

32 7006894

  • 7006894 - PLUG

33 7006942

  • 7006942 - PLUG

34 7296350

  • 7296350 - O-RING

35 7007913

  • 7007913 - O-RING

36 7300039

  • 7300039 - BONNET
  • NSS

37 7300040

  • 7300040 - BONNET
  • NSS

38 7006925

  • 7006925 - NUT
