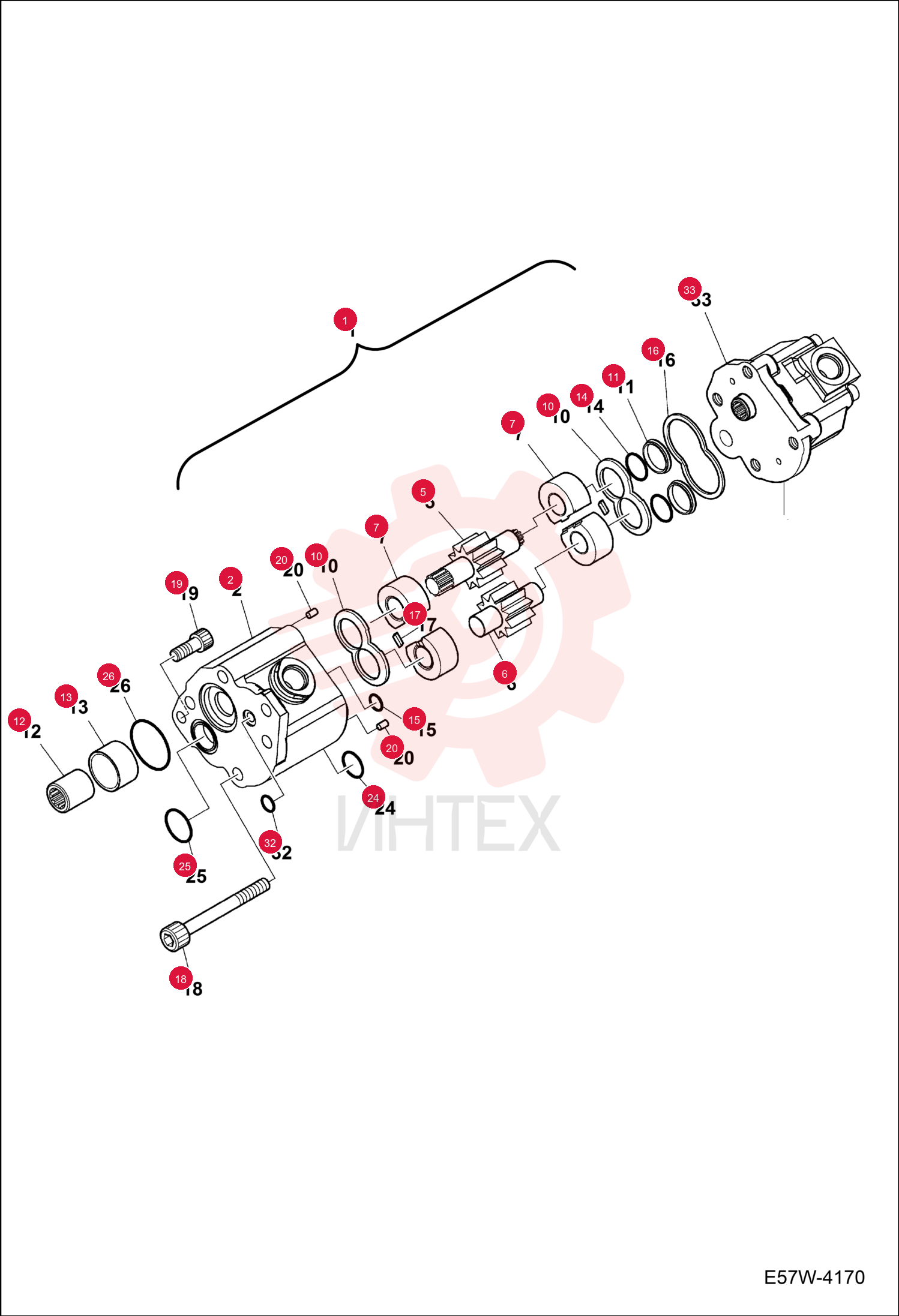

PUMP, GEAR 7296267

PUMP, GEAR 7296267

PUMP, GEAR 7296267

1 7296267

  • 7296267 - PUMP
  • GEAR
  • Ref. 2-33

2 7296194

  • 7296194 - HOUSING

3 7006955

  • 7006955 - GEAR DRIVING

4 7006954

  • 7006954 - GEAR IDLE

5 7004391

  • 7004391 - PLATE

6 7004416

  • 7004416 - GUIDE

7 7296199

  • 7296199 - COUPLING

8 7004369

  • 7004369 - BUSHING

9 7004220

  • 7004220 - O-RING 2.5X6

10 7296226

  • 7296226 - O-RING

11 7004240

  • 7004240 - RING COUPLER

12 7004241

  • 7004241 - RING COUPLER

13 7007756

  • 7007756 - BOLT M10X90

14 7007746

  • 7007746 - BOLT HEX SOCKET M10X5L

15 7007849

  • 7007849 - PIN PARALLEL

16 7296227

  • 7296227 - O-RING

17 7296228

  • 7296228 - O-RING

18 7296229

  • 7296229 - O-RING

19 7296350

  • 7296350 - O-RING
  • Was 7004447

20 7003806

  • 7003806 - PUMP GEAR
