Bobcat
/
E57W
/

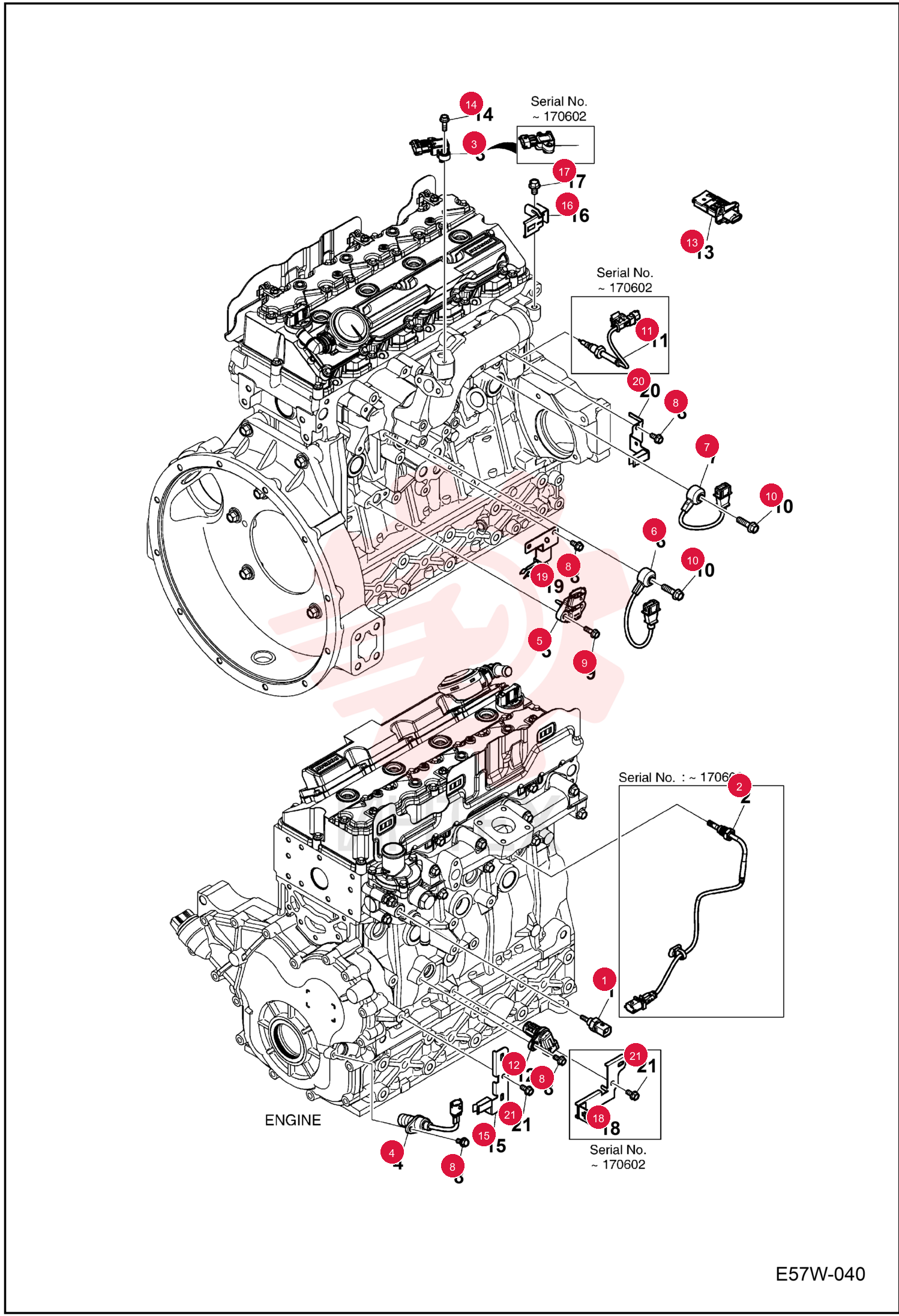

SENSOR TEMP COOLANT 7319352

SENSOR TEMP COOLANT 7319352

SENSOR TEMP COOLANT 7319352

1 7319352

  • 7319352 - SENSOR TEMP COOLANT
  • Was 7331986

2 7030440

  • 7030440 - SENSOR
  • TURBO EXHAUST GAS TEMP
  • Was 7288181

3 7030441

  • 7030441 - SENSOR
  • PRESS INTAKE

4 7331987

  • 7331987 - SENSOR PRESSURE

5 7030444

  • 7030444 - SENSOR
  • CRANKSHAFT

6 7030445

  • 7030445 - SENSOR
  • PRESS OIL ENG

7 7030438

  • 7030438 - SENSOR
  • KNOCK

8 7030438

  • 7030438 - SENSOR
  • KNOCK

9 7030282

  • 7030282 - BOLT

10 7030273

  • 7030273 - BOLT

11 7030265

  • 7030265 - BOLT

12 7030442

  • 7030442 - SENSOR
  • TEMP AIR INTAKE
  • Was 7288180

13 7030437

  • 7030437 - SENSOR
  • POSITION CAMSHAFT

14 7230439

  • 7230439 - SENSOR
  • FLOW AIR MASS
  • Was 7030439

15 7030273

  • 7030273 - BOLT

16 7287451

  • 7287451 - BRACKET HARNESS

17 7030293

  • 7030293 - BRACKET
  • HARNESS

18 7030278

  • 7030278 - BOLT

19 7030773

  • 7030773 - BRACKET
  • HARNESS

20 7287452

  • 7287452 - BRACKET
  • HARNESS

21 7287453

  • 7287453 - BRACKET
  • HARNESS

22 7256717

  • 7256717 - BOLT
