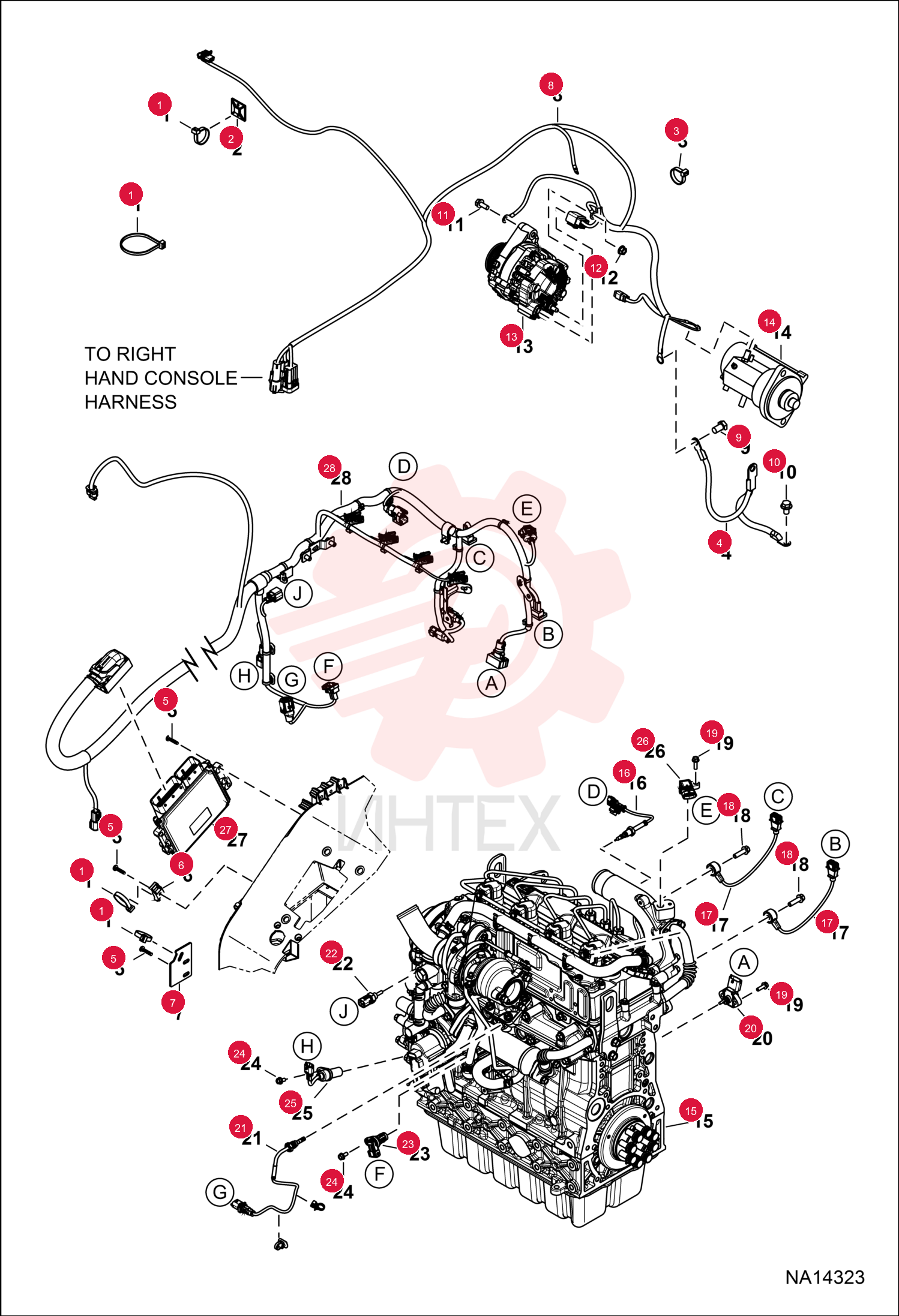

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6693924

  • 6693924 - MOUNT

3 7009540

  • 7009540 - STRAP
  • DOUBLE

4 7209624

  • 7209624 - CABLE
  • GROUND

5 7223129

  • 7223129 - SCREW

6 7240966

  • 7240966 - CLIP
  • HARNESS

7 7306919

  • 7306919 - CLAMP ACCUMULATOR

8 7306921

  • 7306921 - HARNESS ENGINE

9 1CM1220

  • 1CM1220 - BOLT

10 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

11 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

12 43DM8

  • 43DM8 - NUT FLANGED HEX

13 7030442

  • 7030442 - SENSOR
  • TEMP AIR INTAKE

14 7030438

  • 7030438 - SENSOR
  • KNOCK

15 7030265

  • 7030265 - BOLT

16 7030273

  • 7030273 - BOLT

17 7030445

  • 7030445 - SENSOR
  • PRESS OIL ENG

18 7030440

  • 7030440 - SENSOR
  • TURBO EXHAUST GAS TEMP

19 7319352

  • 7319352 - SENSOR TEMP COOLANT

20 7030437

  • 7030437 - SENSOR
  • POSITION CAMSHAFT

21 7030282

  • 7030282 - BOLT

22 7030444

  • 7030444 - SENSOR
  • CRANKSHAFT

23 7331987

  • 7331987 - SENSOR PRESSURE

24 7030329

  • 7030329 - ECU
  • programming by dealer required

25 7338850

  • 7338850 - HARNESS ENGINE
