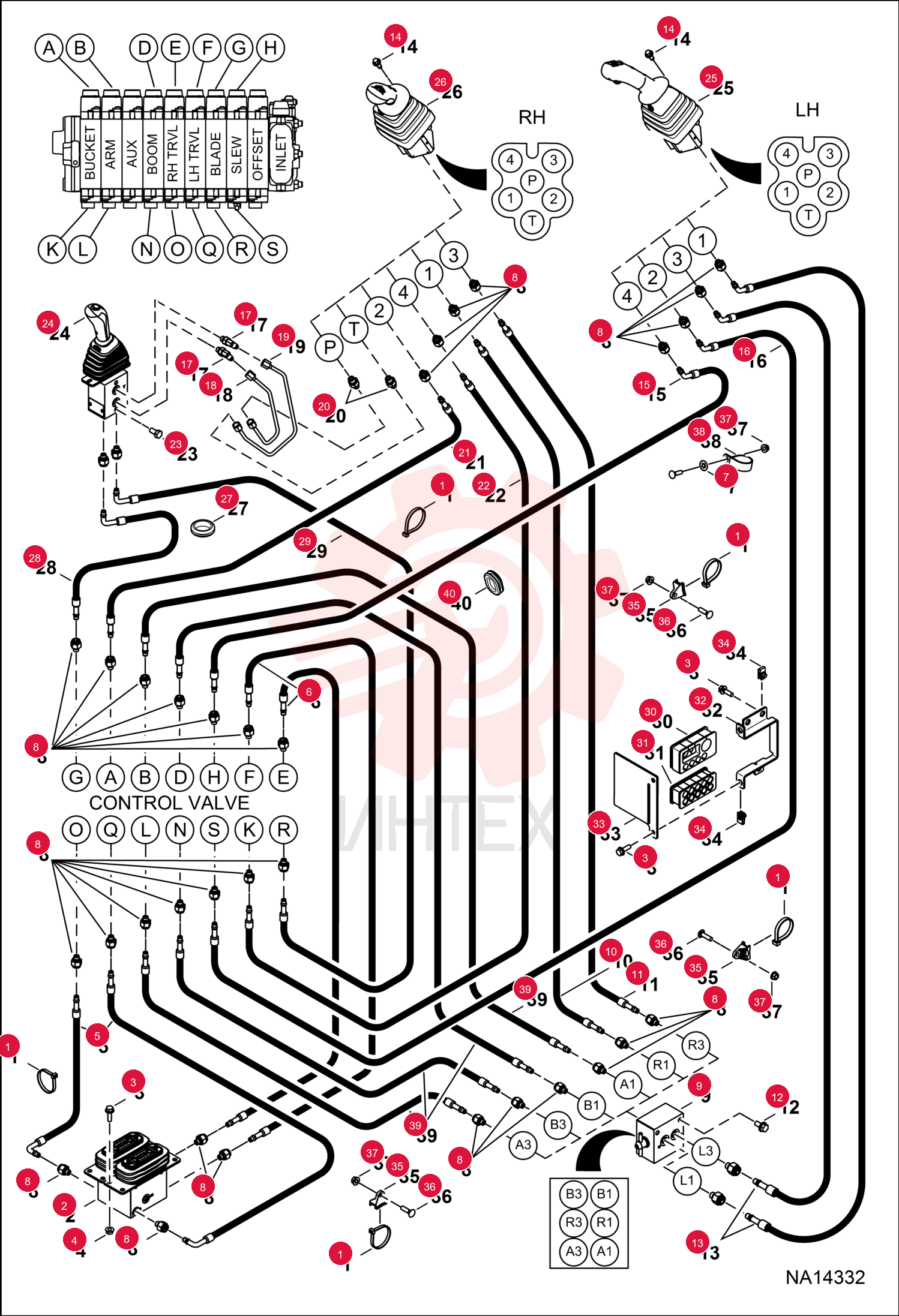

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

1 6624289

  • 6624289 - STRAP
  • TIE

2 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

3 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

4 7301040

  • 7301040 - HOSE HYDRAULIC ASSY

5 7301108

  • 7301108 - HOSE HYDRAULIC ASSY

6 6675859

  • 6675859 - RETAINER

7 10L604

  • 10L604 - CONNECTOR JT

8 7164903

  • 7164903 - HOSE
  • HYD ASSY

9 7164904

  • 7164904 - HOSE
  • HYD ASSY

10 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

11 7273366

  • 7273366 - HOSE HYDRAULIC ASSY

12 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

13 7301039

  • 7301039 - HOSE HYDRAULIC ASSY

14 7301102

  • 7301102 - HOSE HYDRAULIC ASSY

15 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW

16 7191228

  • 7191228 - TUBELINE
  • HYD

17 7191229

  • 7191229 - TUBELINE
  • HYD

18 15KB404

  • 15KB404 - FITTING
  • HYD CONNECTOR

19 7301103

  • 7301103 - HOSE HYDRAULIC ASSY

20 7301038

  • 7301038 - HOSE HYDRAULIC ASSY

21 1CM816

  • 1CM816 - BOLT

22 7310747

  • 7310747 - LEVER JOYSTICK W/PWM
  • LH - W/O secondary aux

23 7310748

  • 7310748 - LEVER JOYSTICK W/PWM
  • RH - W/O secondary aux

24 6806443

  • 6806443 - GROMMET

25 7301106

  • 7301106 - HOSE HYDRAULIC ASSY

26 7301107

  • 7301107 - HOSE HYDRAULIC ASSY

27 7223146

  • 7223146 - GUIDE
  • HOSE

28 7175013

  • 7175013 - GUIDE
  • HOSE

29 7279152

  • 7279152 - MOUNT HOSE

30 7178989

  • 7178989 - PLATE

31 6676169

  • 6676169 - NUT

32 6678818

  • 6678818 - MOUNT

33 28CM830

  • 28CM830 - BOLT

34 43DM8

  • 43DM8 - NUT FLANGED HEX

35 30H45

  • 30H45 - CLIP

36 7301125

  • 7301125 - HOSE HYDRAULIC ASSY

37 6681886

  • 6681886 - GROMMET
