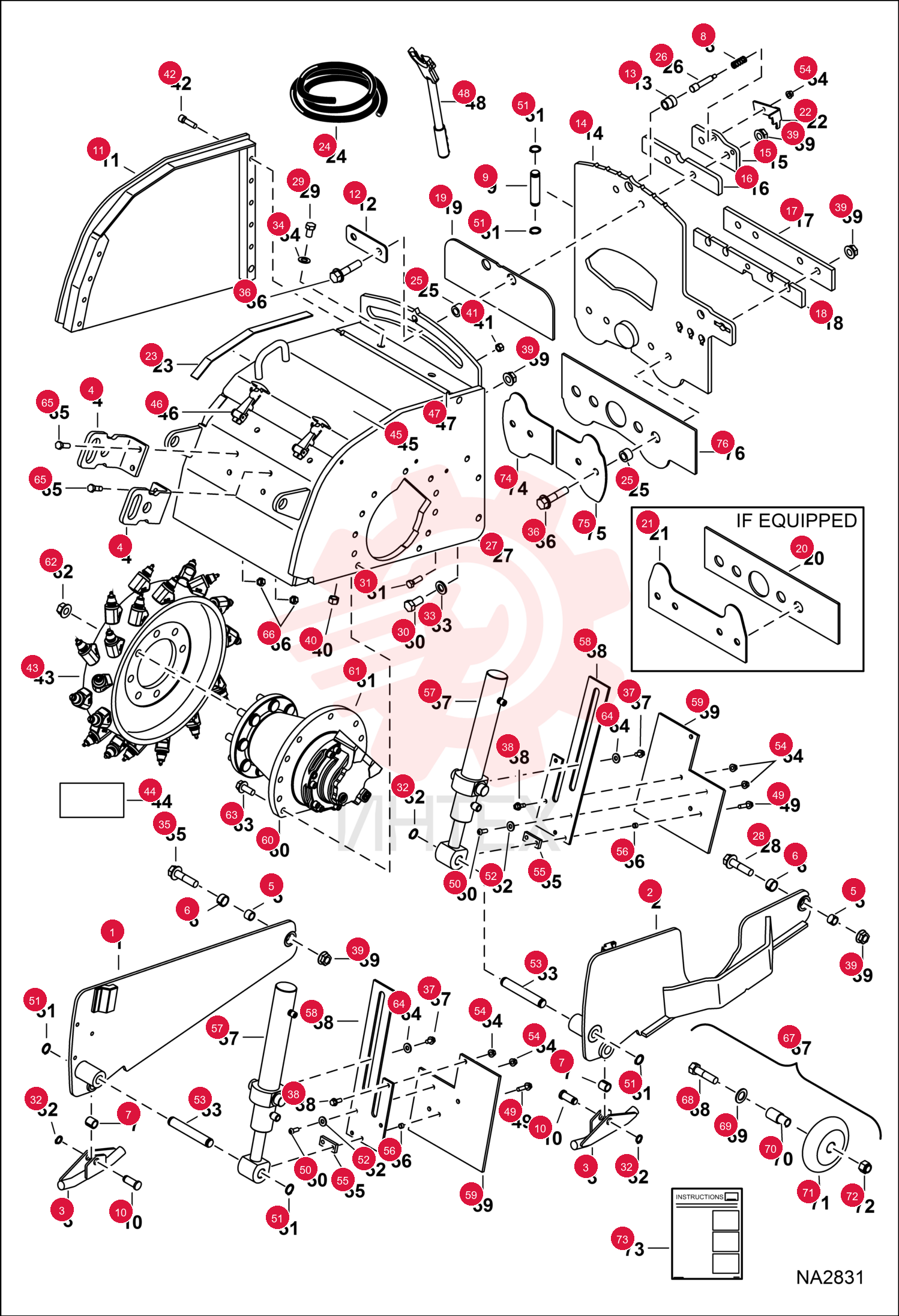

MOUNT 6713574
1 6713574
- 6713574 - MOUNT
2 6713575
- 6713575 - MOUNT
- SKI
3 6713578
- 6713578 - BAR
- SKID
4 6713580
- 6713580 - MOUNT
5 6713583
- 6713583 - BUSHING
6 6713667
- 6713667 - BUSHING
7 6713700
- 6713700 - BUSHING
8 6714639
- 6714639 - SPRING
9 6714997
- 6714997 - PIN
10 6714998
- 6714998 - PIN
11 7255969
- 7255969 - COVER
- SIDE
- Was 6905641
12 7176924
- 7176924 - PLATE
- RETAINER
13 7176948
- 7176948 - BUSHING
14 7184382
- 7184382 - MOUNT
15 7184736
- 7184736 - PLATE
- RETAINER
16 7184737
- 7184737 - SPACER
17 7184738
- 7184738 - PLATE
- RETAINER
18 7184739
- 7184739 - SPACER
19 7184784
- 7184784 - SLIDE
20 7189380
- 7189380 - HANDLE
21 6906931
- 6906931 - TAPE
- FOAM BULK
- bulk - sold per foot
22 7189905
- 7189905 - BUSHING
- SPACER
23 7241005
- 7241005 - BUSHING
- SPACER
24 7189954
- 7189954 - PIN
- LOCK
25 7192293
- 7192293 - HOUSING
- W/A
- 18" planer
26 7184770
- 7184770 - HOUSING
- W/A
- 24" planer
27 17C1236
- 17C1236 - BOLT
28 17C1016
- 17C1016 - BOLT
29 17C1224
- 17C1224 - BOLT
30 17C824
- 17C824 - BOLT 5
31 22J12
- 22J12 - RING
- SNAP
32 28E12
- 28E12 - WASHER
33 29E10
- 29E10 - WASHER
34 31C1248
- 31C1248 - BOLT
35 31C1256
- 31C1256 - BOLT
- Was 31C1252
36 31C610
- 31C610 - BOLT
37 31C616
- 31C616 - SCREW
38 53D12
- 53D12 - NUT
39 61D10
- 61D10 - NUT
40 61D8
- 61D8 - NUT 5
41 73G828
- 73G828 - BOLT
42 7192295
- 7192295 - COVER
- 18" planer
43 7189804
- 7189804 - COVER
- 24" planer
44 7252462
- 7252462 - LATCH
- Was 1547283
45 1F308
- 1F308 - PIN
- COTTER
- if equipped
46 6713560
- 6713560 - HINGE
- 18" planer
47 6716202
- 6716202 - HINGE
- 24" planer
48 7280510
- 7280510 - TOOL
- BIT
- NA - bit removal - Was 6685015
49 6650154
- 6650154 - TOOL SPECIAL
- EMEA - bit removal
50 31C624
- 31C624 - BOLT
51 25G616
- 25G616 - SCREW SKT BTN HD CAP
52 22J16
- 22J16 - SNAP RING
53 25E18
- 25E18 - WASHER FLAT PLAIN
54 6713964
- 6713964 - PIN
- PIVOT
55 83D6
- 83D6 - LKNUT HEX FLG GR8
56 6713581
- 6713581 - SPACER
57 6544654
- 6544654 - BUSHING
58 6713579
- 6713579 - SHIELD
59 6905168
- 6905168 - SHIELD
60 6713582
- 6713582 - SHIELD
61 84D12
- 84D12 - NUT
62 49C1024
- 49C1024 - BOLT
63 619021
- 619021 - WASHER
64 31C824
- 31C824 - BOLT 10
65 53D8
- 53D8 - NUT
66 6905612
- 6905612 - KIT
- WHEEL PLANER
- Ref. 68-73
67 17C1464
- 17C1464 - BOLT
68 25E29
- 25E29 - WSHR
69 6905607
- 6905607 - BUSHING
70 6905610
- 6905610 - WHEEL
71 85D14
- 85D14 - NUT
72 6901027
- 6901027 - INSTRUCTIONS
73 7275583
- 7275583 - PLATE
- RETAINER
- 18" planer only - use W/Ref. 76
74 7275580
- 7275580 - PLATE
- SLIDE
- 24" planer only - use W/Ref. 76
75 7275582
- 7275582 - SLIDE
- use W/Ref. 74 or 75
