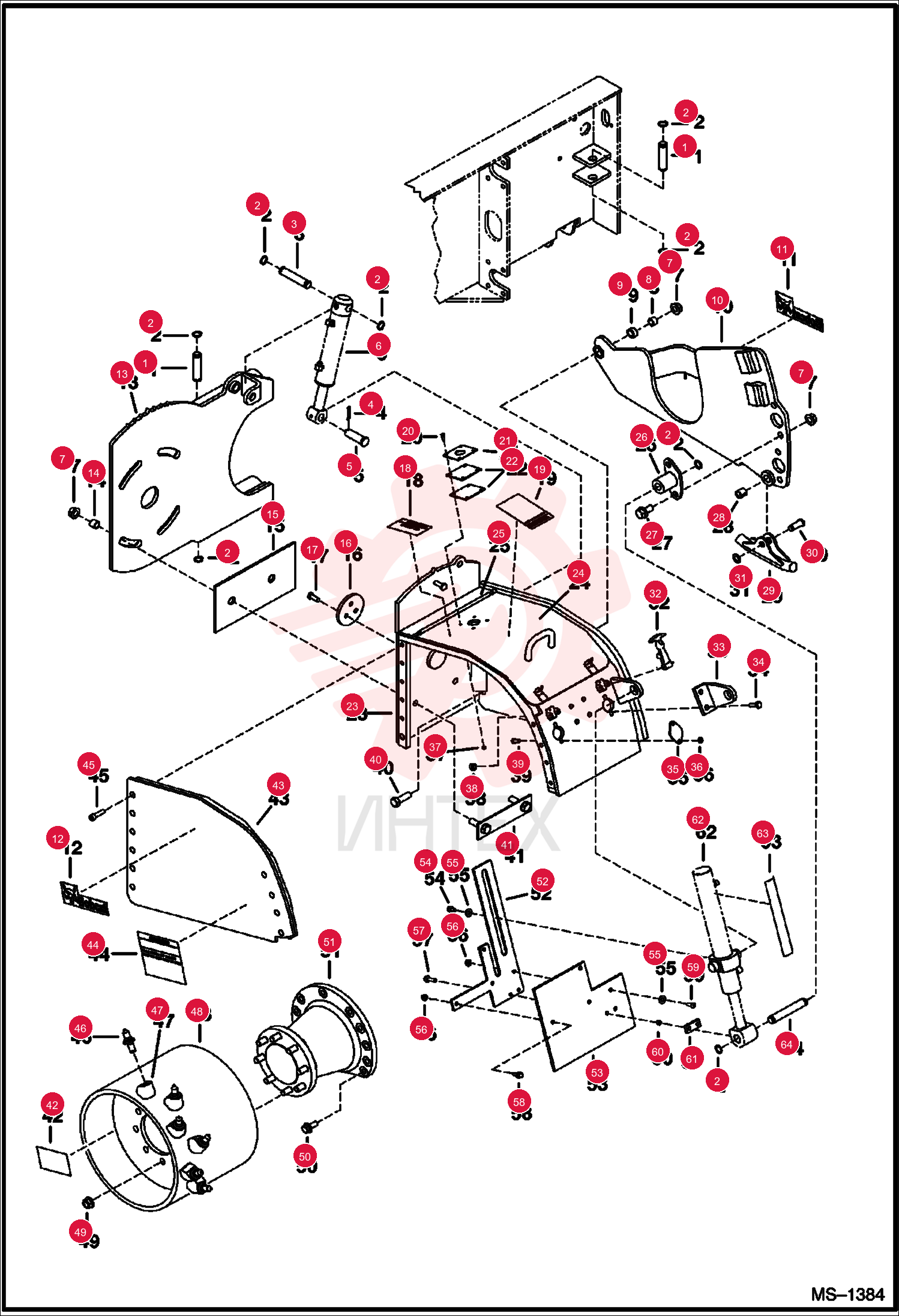

PIN 6714997
1 6714997
- 6714997 - PIN
2 22J16
- 22J16 - SNAP RING
- Was 1320431
3 6906958
- 6906958 - PIN
4 1F624
- 1F624 - PIN
5 6906959
- 6906959 - PIN
6 53D12
- 53D12 - NUT
7 6713667
- 6713667 - BUSHING
8 6713583
- 6713583 - BUSHING
9 6906964
- 6906964 - MOUNT
- SKI
10 6727323
- 6727323 - DECAL
- LOGO BOBCAT AND HEAD
- LH
11 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- RH
12 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
- Use on both sides
13 6906949
- 6906949 - MOUNT
- PIVOT
14 6713965
- 6713965 - BUSHING
15 6905384
- 6905384 - PLATE
- BEARING
16 6713557
- 6713557 - BRACKET
17 17C820
- 17C820 - BOLT 5
18 6594488
- 6594488 - DECAL
- WARNING
19 6578779
- 6578779 - DECAL
- WARNING
20 17C412
- 17C412 - BOLT 5
21 6628902
- 6628902 - PLATE
22 6664146
- 6664146 - SEAL
23 6906954
- 6906954 - HOUSING
- DRUM
24 6905372
- 6905372 - DOOR
25 6905375
- 6905375 - HINGE
26 6906966
- 6906966 - BUSHING
27 31C1228
- 31C1228 - BOLT
28 6713700
- 6713700 - BUSHING
29 6958144
- 6958144 - SKID BAR
30 6714998
- 6714998 - PIN
31 6662745
- 6662745 - SNAP RING
32 7252462
- 7252462 - LATCH
- Was 1547283
33 1F308
- 1F308 - PIN
- COTTER
- if equipped
34 6905385
- 6905385 - MOUNT
35 17C824
- 17C824 - BOLT 5
36 6667551
- 6667551 - COVER
37 61D6
- 61D6 - NUT HEX FINISHED GR5
38 97D4
- 97D4 - NUT HEX FLNG W/T GR5
39 61D8
- 61D8 - NUT 5
40 17C616
- 17C616 - BOLT 5
41 17C1236
- 17C1236 - BOLT
42 6905383
- 6905383 - MOUNT
43 6958134
- 6958134 - DECAL
- DRUM
- Use W/Ref. 48
44 7255969
- 7255969 - COVER
- SIDE
- Was 6905641
45 6708822
- 6708822 - DECAL
- WARNING
46 7130144
- 7130144 - DECAL
- WARNING
- - no-text
47 73G828
- 73G828 - BOLT
48 7370901
- 7370901 - BIT TOOTH CARBIDE
- EMEA
49 7010631EF
- 7010631EF - BIT
- EF TOOTH CARBIDE
- standard - high impact & abrasive applications - 20 mm (.75") dia bit shank
50 7338748
- 7338748 - BIT TOOTH CARBIDE
- standard - high impact & abrasive applications - 20 mm (.75") dia bit shank - Was 7020521
51 7010631
- 7010631 - BIT
- TOOTH CARBIDE
- standard - high impact & abrasive applications - 20 mm (.75") dia bit shank
52 7311788
- 7311788 - HOLDER TOOTH ROCK AUGER
- EMEA
53 7280509
- 7280509 - BLOCK
- NA - Was 6634443
54 6958132
- 6958132 - DRUM
- PLANER
- W/Ref. 47
55 84D12
- 84D12 - NUT
56 49C1024
- 49C1024 - BOLT
57 6958270
- 6958270 - BRACKET
58 6958271
- 6958271 - SHIELD
59 35C610
- 35C610 - BOLT 5
60 25E18
- 25E18 - WASHER FLAT PLAIN
61 97D6
- 97D6 - NUT 10
62 35C624
- 35C624 - SCREW FLGD HEX CAP
63 35C616
- 35C616 - SCREW FLGD HEX CAP
64 25G616
- 25G616 - SCREW SKT BTN HD CAP
65 6544654
- 6544654 - BUSHING
66 6713581
- 6713581 - SPACER
67 6801313
- 6801313 - CYLINDER
- DEPTH CONTROL
- DEPTH CONTROL
68 6905571
- 6905571 - DECAL
- DEPTH
69 6713964
- 6713964 - PIN
- PIVOT
