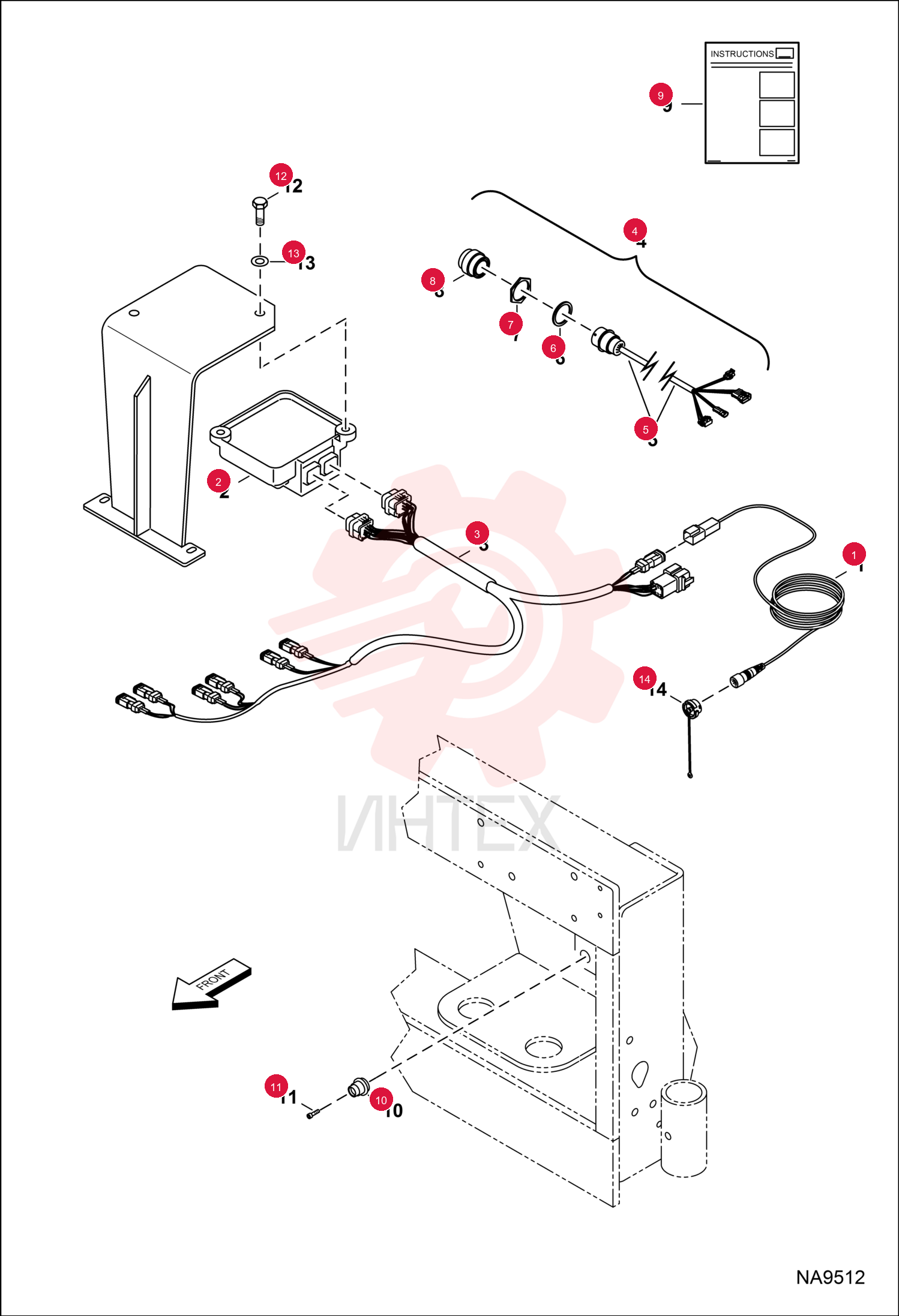

HARNESS, INPUT 7-PIN 7194131 (2)

HARNESS, INPUT 7-PIN 7194131 (2)

HARNESS, INPUT 7-PIN 7194131 (2)

1 7194131

  • 7194131 - HARNESS
  • INPUT 7-PIN

2 7260950

  • 7260950 - CONTROLLER GACD
  • Was 6697951

3 7177288

  • 7177288 - HARNESS
  • PLANER

4 7196479

  • 7196479 - KIT
  • HARNESS 14-PIN
  • conversion - converts 7-pin planer to use W/ 14-pin loader - Ref. 5 (7194132 harness) & 6-9

5 6727456

  • 6727456 - KIT
  • 14-PIN HARNESS
  • conversion - converts 7-pin planer to Use W/ 14-pin loader - Ref. 5 (6727404 harness) & 6-9

6 7194132

  • 7194132 - HARNESS
  • 14-PIN
  • conversion - Use W/Ref. 4 (7196479 kit)

7 6727404

  • 6727404 - HARN
  • 14-PIN
  • conversion - Use W/Ref. 4 (6727456 kit)

8 6664037

  • 6664037 - WASHER

9 6664036

  • 6664036 - NUT

10 6673680

  • 6673680 - RECEPTACLE
  • TWIST-LOC

11 6901005ENUS

  • 6901005ENUS - INSTRUCTIONS
  • Was 6901005

12 7029599

  • 7029599 - BOLT

13 6677722

  • 6677722 - BOLT

14 6676786

  • 6676786 - WASHER

15 7240957

  • 7240957 - CAP CONNECTOR
