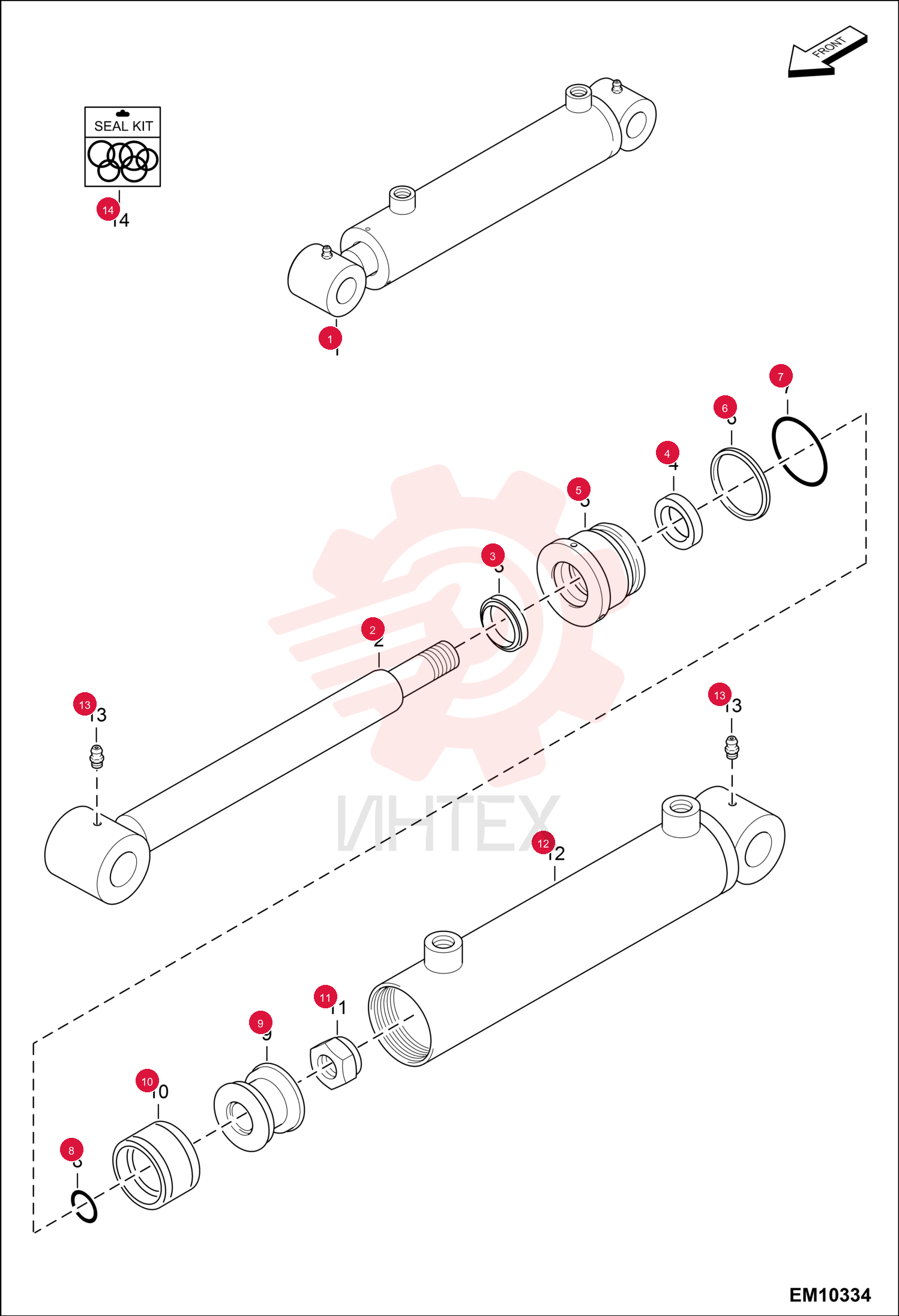

CYLINDER, DEPTH CONTROL 6676838 (1)

CYLINDER, DEPTH CONTROL 6676838 (1)

CYLINDER, DEPTH CONTROL 6676838 (1)

1 6676838

  • 6676838 - CYLINDER
  • DEPTH CONTROL
  • Ref. 2-13

2 6676829

  • 6676829 - ROD

3 6676817

  • 6676817 - SEAL

4 6676819

  • 6676819 - SEAL

5 6676830

  • 6676830 - HEAD

6 6676831

  • 6676831 - SEAL

7 6676832

  • 6676832 - O-RING

8 6676834

  • 6676834 - O-RING

9 6676833

  • 6676833 - PISTON

10 6676835

  • 6676835 - SEAL

11 7020504

  • 7020504 - NUT

12 6676837

  • 6676837 - CASE

13 6676775

  • 6676775 - FITTING
  • GREASE

14 6676839

  • 6676839 - SEAL KIT
