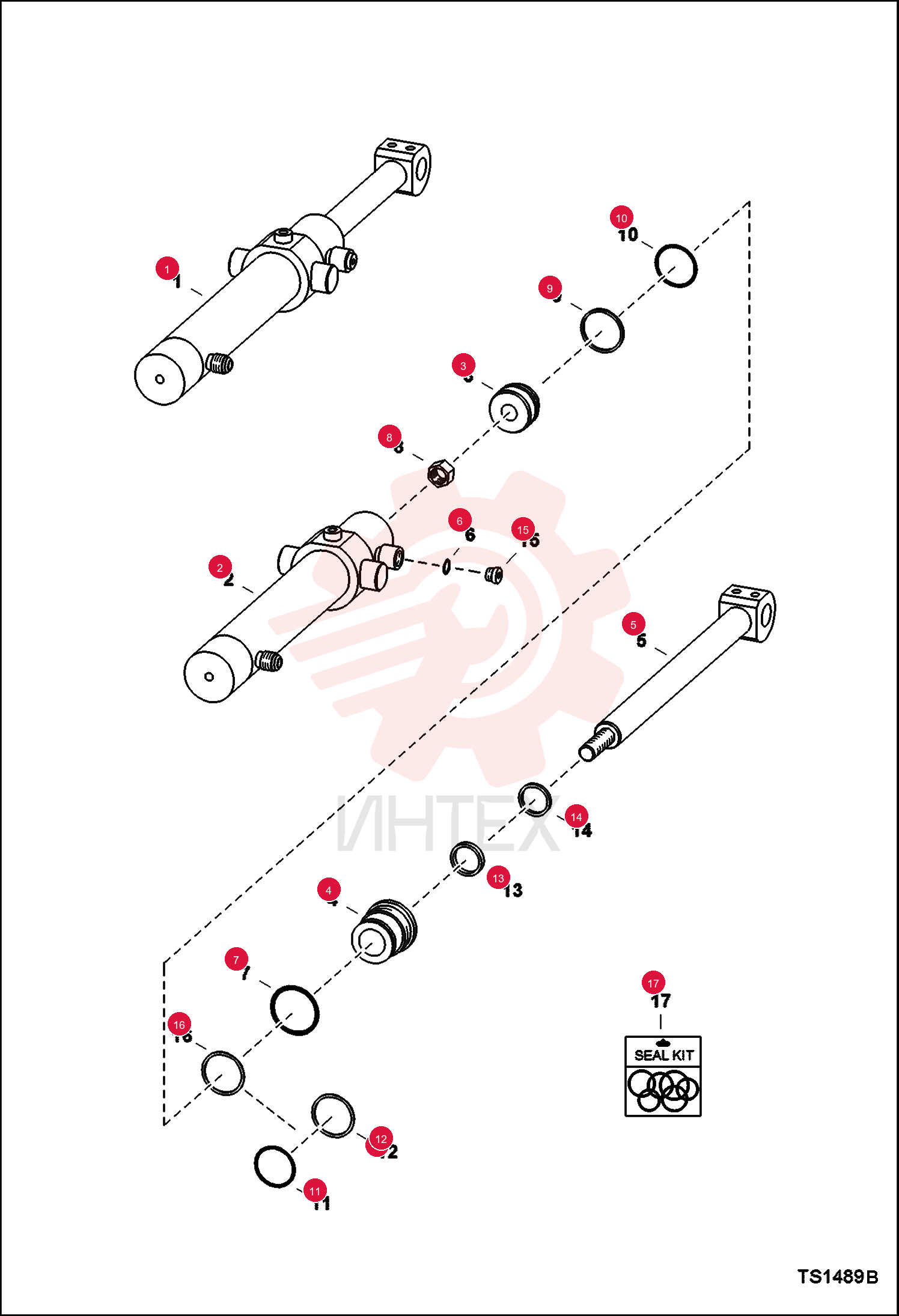

CYLINDER, DEPTH CONTROL 6801313 (4)
1 6801313
- 6801313 - CYLINDER
- DEPTH CONTROL
- Ref. 2-15
2 6801318
- 6801318 - CASE
3 6661694
- 6661694 - PISTON
- W/Ref. 9 & 10 - with non - replaceable wear sleeves
4 6539323
- 6539323 - HEAD
- CYL LIFT
5 6801319
- 6801319 - SHAFT
6 95K6
- 95K6 - O'RING
7 82K136
- 82K136 - O-RING
- Was 58K136
8 92D12
- 92D12 - NUT 5
9 6516231
- 6516231 - SEAL
10 54K30118
- 54K30118 - O-RING
11 54K40124
- 54K40124 - O-RING
12 73K224
- 73K224 - O-RING
- back-up
13 6667324
- 6667324 - SEAL
14 6665208
- 6665208 - WIPER
- ROD CYL
- wiper
15 24K5
- 24K5 - PLUG
- W/Ref. 6 - Was 90KV5
16 7137769
- 7137769 - KIT
- SEAL
- Ref. 7-14 - Was 6803329
