Bobcat
/
Planer
/

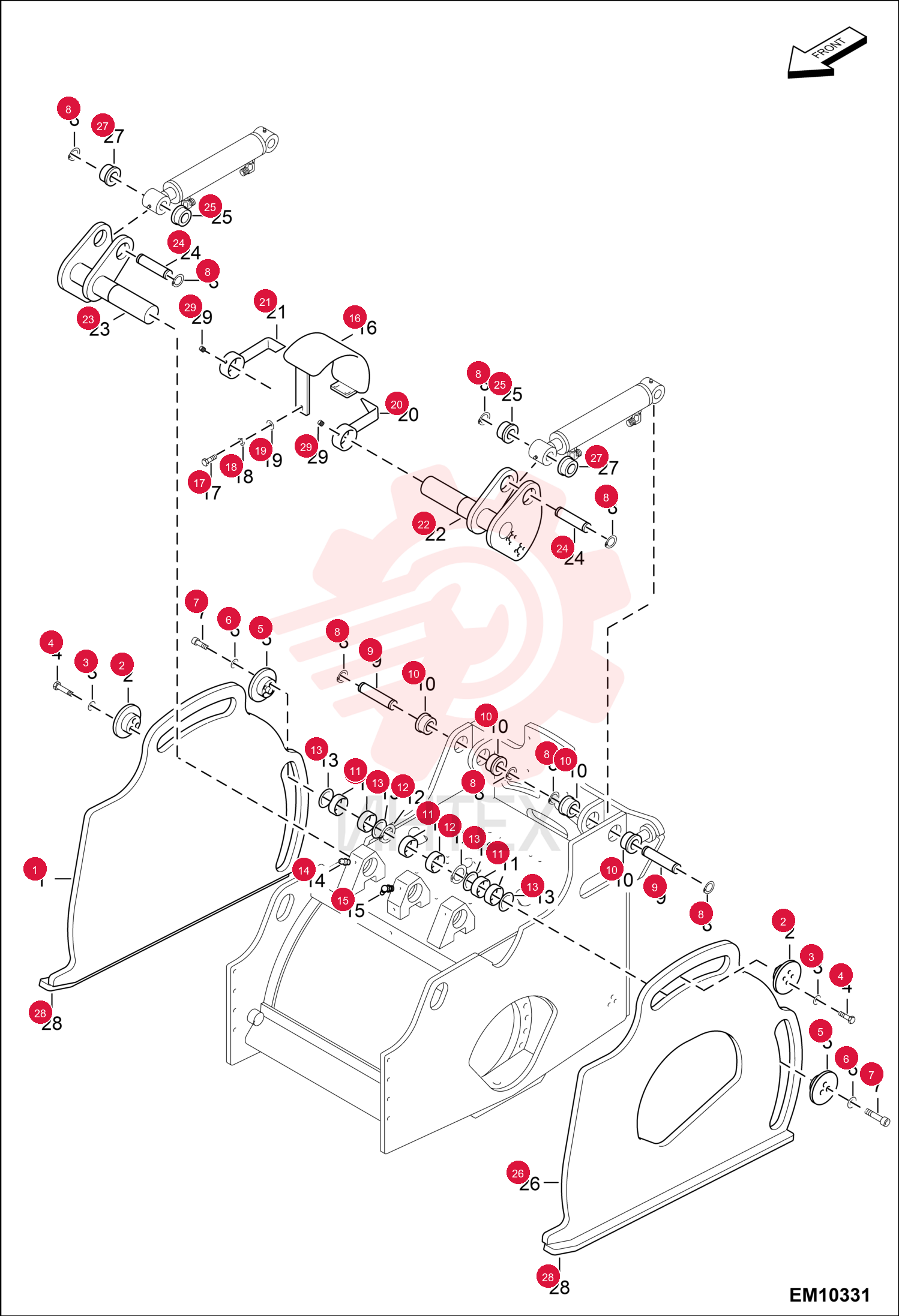

SUPPORT 7245729

SUPPORT 7245729

SUPPORT 7245729

1 7245729

  • 7245729 - SUPPORT

2 7245747

  • 7245747 - SUPPORT

3 7245763

  • 7245763 - GUIDE

4 6676755

  • 6676755 - WASHER

5 6676754

  • 6676754 - BOLT

6 6676756

  • 6676756 - FLANGE

7 7248766

  • 7248766 - BOLT

8 7029596

  • 7029596 - BOLT
  • Was 6676753

9 6676810

  • 6676810 - RING
  • RETAINING

10 6676811

  • 6676811 - PIN

11 6676812

  • 6676812 - BUSHING

12 6676747

  • 6676747 - SPACER

13 6676770

  • 6676770 - RING
  • RETAINING

14 7245762

  • 7245762 - SHIM

15 6676775

  • 6676775 - FITTING
  • GREASE

16 6676773

  • 6676773 - FITTING
  • GREASE

17 6676780

  • 6676780 - BRACKET

18 7245726

  • 7245726 - GAUGE
  • DEPT

19 6676781

  • 6676781 - BOLT

20 6676755

  • 6676755 - WASHER

21 6677758

  • 6677758 - WASHER

22 6676771

  • 6676771 - MOUNT

23 6676774

  • 6676774 - MOUNT

24 7245746

  • 7245746 - SHAFT

25 7346601

  • 7346601 - SHAFT LEFT

26 7245728

  • 7245728 - SHAFT

27 7245745

  • 7245745 - SHAFT

28 7346600

  • 7346600 - SHAFT RIGHT

29 7245727

  • 7245727 - SHAFT

30 7245767

  • 7245767 - PIN

31 7245765

  • 7245765 - BUSHING

32 7245748

  • 7245748 - SUPPORT

33 7245730

  • 7245730 - SUPPORT

34 7245766

  • 7245766 - BUSHING

35 7245764

  • 7245764 - PLATE WEAR
  • weld-on

36 7350551

  • 7350551 - PLATE WEAR
  • weld-on

37 7245732

  • 7245732 - PLATE WEAR
  • weld-on

38 7245768

  • 7245768 - SCREW
  • SET
