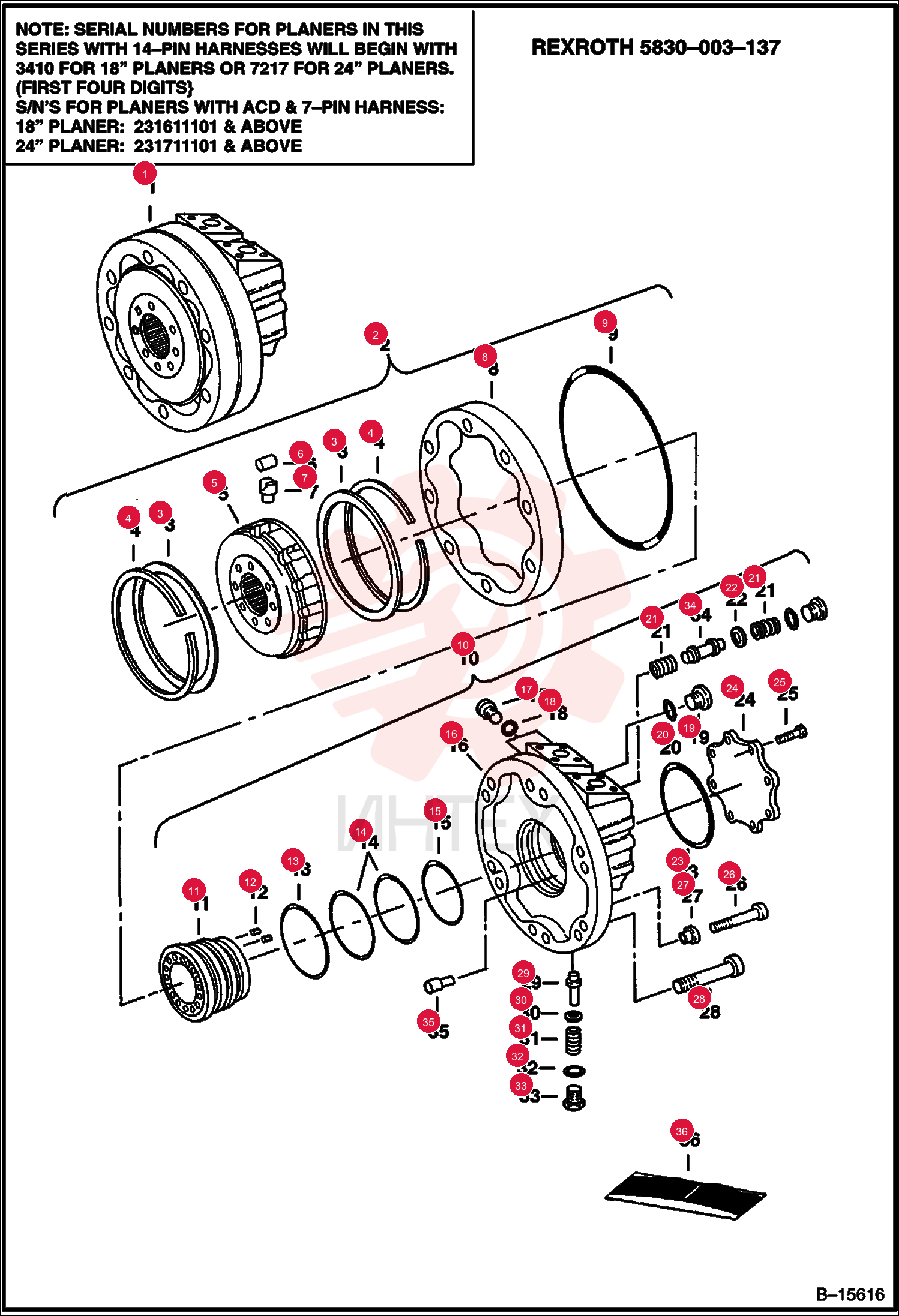

ROTOR GROUP 6690158 (2)
1 6690158
- 6690158 - ROTOR GROUP
- Was 6675222 W/Ref 3
- 4
- 5
- 6
- &7 does not include Ref 8
2 6674036
- 6674036 - RING
- RETAINER
3 6674031
- 6674031 - ROLLER
4 6674032
- 6674032 - PISTON
5 6675091
- 6675091 - CAM ROTOR
6 6674029
- 6674029 - SEAL
- QUAD RING
- square
7 6675223
- 6675223 - HOUSING ASSY
- W/Ref. 11-35
8 6674184
- 6674184 - PISTON
- Was 6674185
9 6674037
- 6674037 - SPRING
10 6675227
- 6675227 - SEAL
11 6675228
- 6675228 - SEAL
12 6675229
- 6675229 - SEAL
13 7021029
- 7021029 - HOUSING
- rear - also order 6689683 & (2) of 6691100 - Was 6678140
14 6671783
- 6671783 - PLUG
15 6671784
- 6671784 - O-RING
16 6671749
- 6671749 - O-RING
17 6674841
- 6674841 - SPRING
- Was 6674339
18 6674338
- 6674338 - WASHER
19 6675195
- 6675195 - SEAL
- QUAD RING
20 6905865
- 6905865 - COVER
- thick
21 1CM1025
- 1CM1025 - BOLT
- Use with 6905865 thick cover
22 6675225
- 6675225 - BOLT
23 6675022
- 6675022 - BUSHING
24 6687080
- 6687080 - BOLT
- Was 6675020
25 6675868
- 6675868 - POPPET
- Was 6675224
26 6674343
- 6674343 - SHIM
27 6674344
- 6674344 - SPRING
28 6671784
- 6671784 - O-RING
29 6674345
- 6674345 - PLUG
30 6675866
- 6675866 - SPOOL
- Was 6674337
31 6675189
- 6675189 - STOP PIN
32 6675226
- 6675226 - SEAL KIT
- W/Ref. 9
- 13
- 14
- 15
- 18
- 20
- 23 & 32
