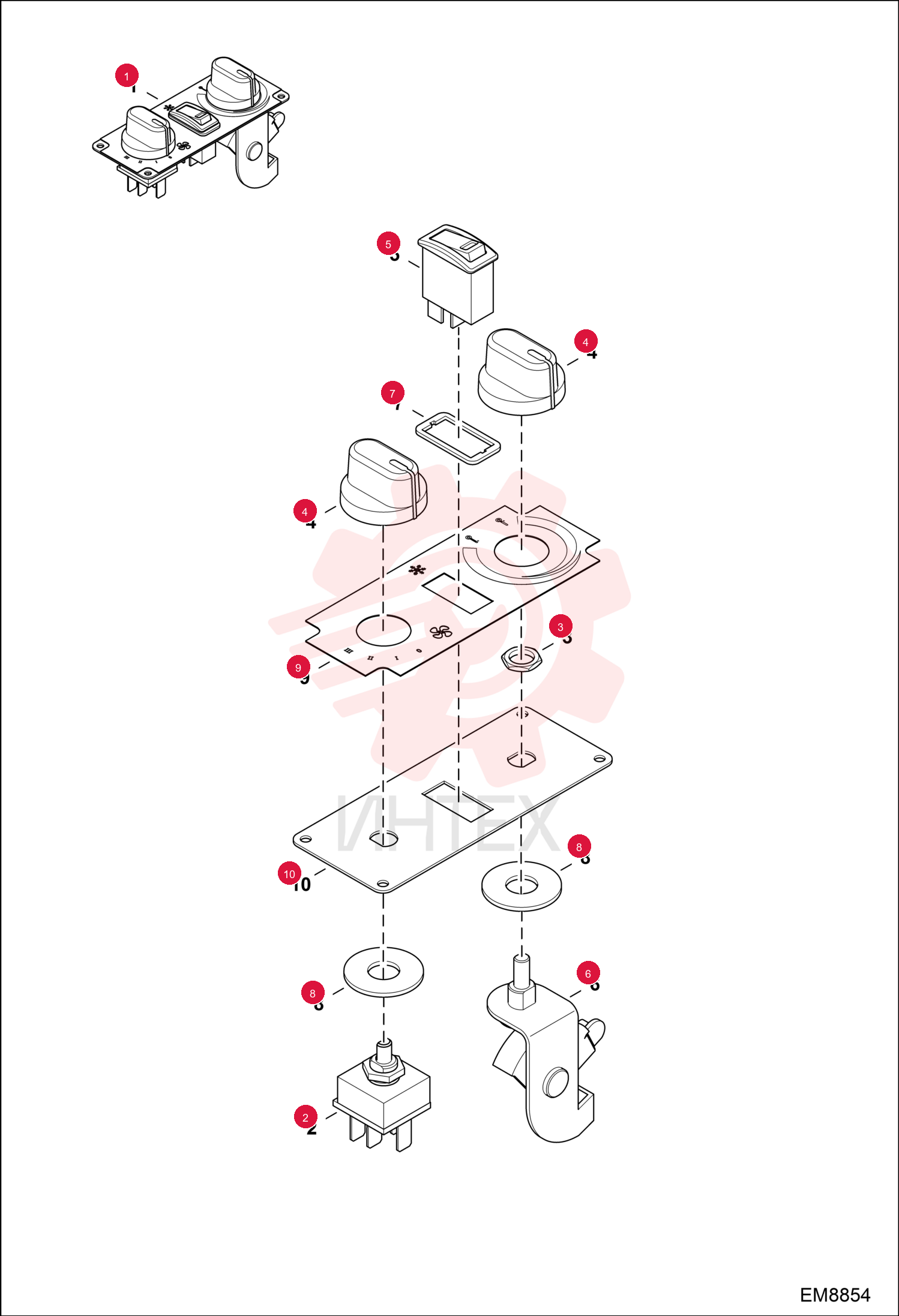

PANEL HVAC 7147197

PANEL HVAC 7147197

PANEL HVAC 7147197

1 7147197

  • 7147197 - PANEL HVAC

2 6675176

  • 6675176 - SWITCH

3 7015436

  • 7015436 - JAM NUT

4 6684940

  • 6684940 - KNOB

5 7169112

  • 7169112 - SWITCH
  • ROCKER A/C

6 6676622

  • 6676622 - CONTROL

7 7015439

  • 7015439 - PANEL GASKET

8 7022122

  • 7022122 - WASHER

9 7022150

  • 7022150 - OVERLAY

10 7015437

  • 7015437 - CONTROL PLATE
