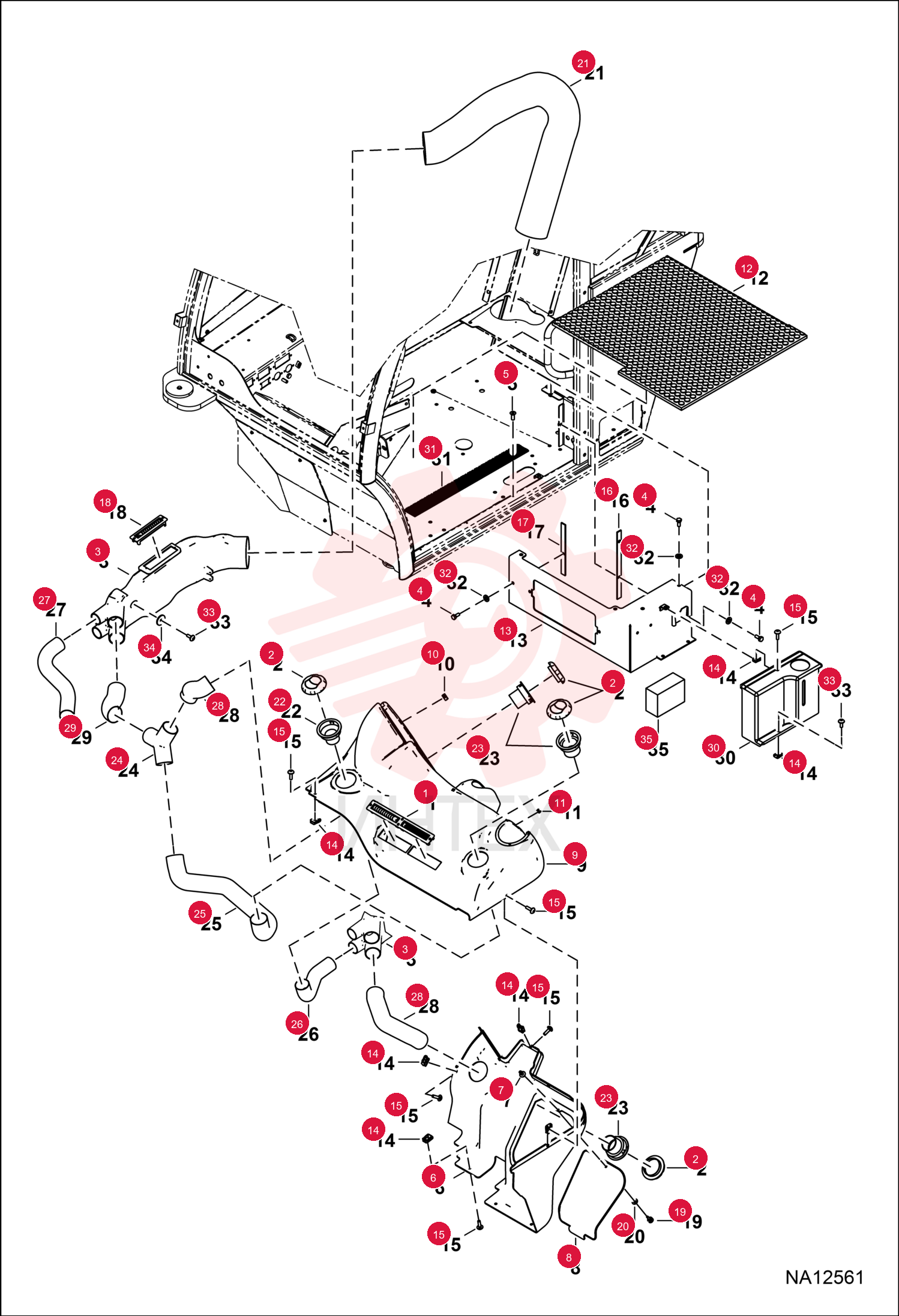

LOUVER HEATER 7146839

LOUVER HEATER 7146839

LOUVER HEATER 7146839

1 7146839

  • 7146839 - LOUVER HEATER

2 7146840

  • 7146840 - LOUVER HEATER

3 7146850

  • 7146850 - DUCT HEATER ASSEMBLY

4 4CM820

  • 4CM820 - SCREW HEX HD 8.8

5 23GM516

  • 23GM516 - SCREW

6 7146947

  • 7146947 - COVER LOW DASHBOARD

7 7147126

  • 7147126 - NUT LOCK

8 7146949

  • 7146949 - PANEL FUSE

9 7146950

  • 7146950 - COVER HIGH DASHBOARD

10 7147206

  • 7147206 - NUT SQUARE

11 7186162

  • 7186162 - NUT

12 7146993

  • 7146993 - FLOORMAT CAB

13 7147033

  • 7147033 - SUPPORT

14 7147099

  • 7147099 - CLIP NUT

15 7147106

  • 7147106 - SCREW HEX

16 7147107

  • 7147107 - SEAL RUBBER

17 7147108

  • 7147108 - SEAL RUBBER

18 7147127

  • 7147127 - LOUVER HEATER

19 7147128

  • 7147128 - LOCK PIN

20 7147129

  • 7147129 - SPRING WASHER

21 7147134

  • 7147134 - PIPE AIR

22 7147135

  • 7147135 - SUPPORT LOUVER

23 7147136

  • 7147136 - SUPPORT LOUVER

24 7147137

  • 7147137 - CONNECTOR Y

25 7147138

  • 7147138 - PIPE AIR

26 7147139

  • 7147139 - PIPE AIR

27 7147140

  • 7147140 - PIPE AIR

28 7147141

  • 7147141 - PIPE AIR

29 7147142

  • 7147142 - PIPE AIR

30 7209349

  • 7209349 - COVER TANK

31 7186153

  • 7186153 - PLATE

32 18EM816

  • 18EM816 - WASHER

33 7186146

  • 7186146 - SCREW HEX

34 7147211

  • 7147211 - WASHER DUST

35 7308989

  • 7308989 - INSULATION FOAM
