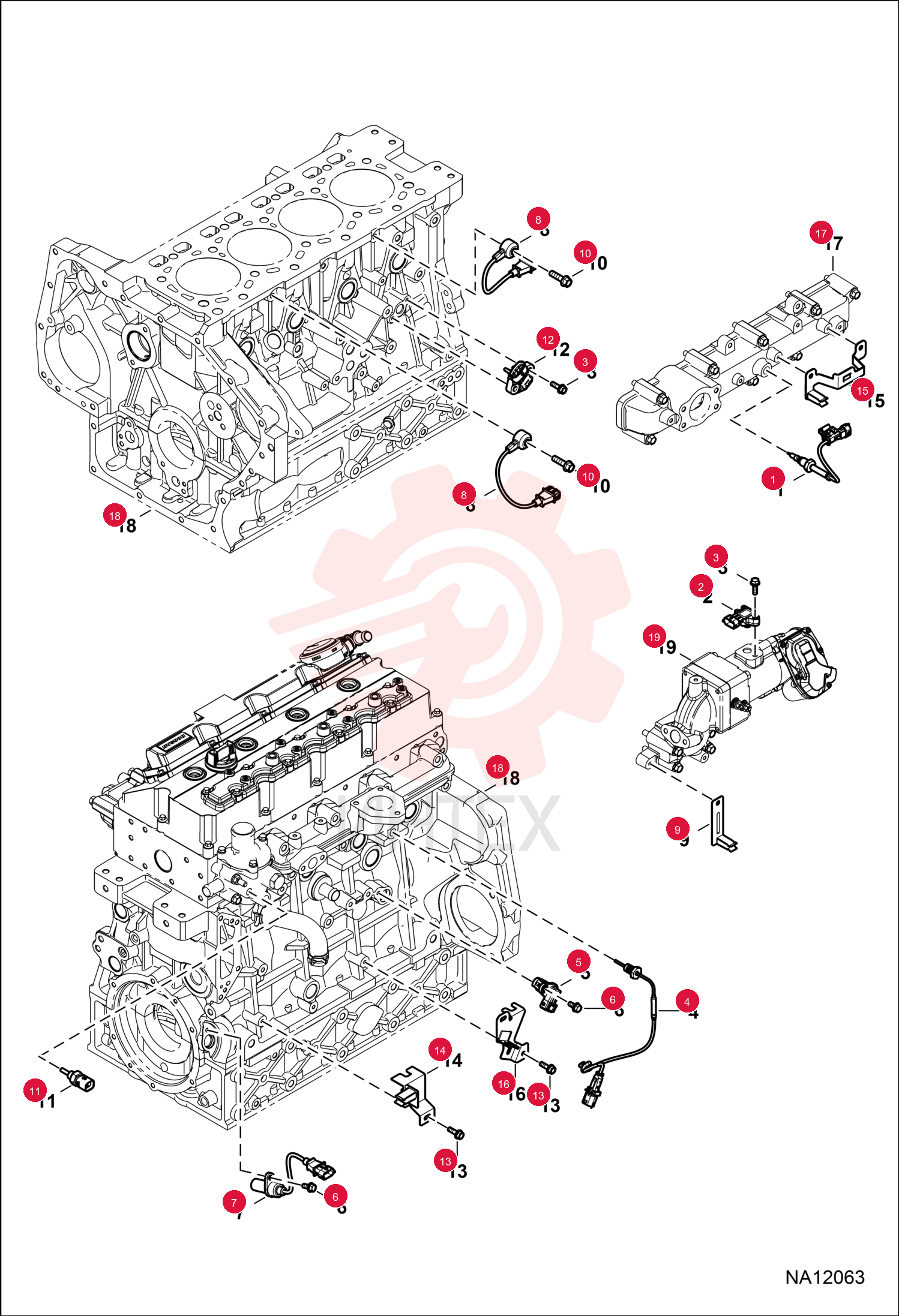

SENSOR, TEMP AIR INTAKE 7030442

SENSOR, TEMP AIR INTAKE 7030442

SENSOR, TEMP AIR INTAKE 7030442

1 7030442

  • 7030442 - SENSOR
  • TEMP AIR INTAKE

2 7030441

  • 7030441 - SENSOR
  • PRESS INTAKE

3 7331987

  • 7331987 - SENSOR PRESSURE

4 7030273

  • 7030273 - BOLT

5 7030440

  • 7030440 - SENSOR
  • TURBO EXHAUST GAS TEMP

6 7030437

  • 7030437 - SENSOR
  • POSITION CAMSHAFT

7 7030282

  • 7030282 - BOLT

8 7030444

  • 7030444 - SENSOR
  • CRANKSHAFT

9 7030438

  • 7030438 - SENSOR
  • KNOCK

10 7256702

  • 7256702 - BRACKET
  • HARNESS

11 7030265

  • 7030265 - BOLT

12 7319352

  • 7319352 - SENSOR TEMP COOLANT

13 7030445

  • 7030445 - SENSOR
  • PRESS OIL ENG

14 7256717

  • 7256717 - BOLT

15 7256703

  • 7256703 - BRACKET
  • HARNESS

16 7256704

  • 7256704 - BRACKET
  • HARNESS

17 7298820

  • 7298820 - BRACKET
  • HARNESS
