Bobcat
/
V723
/

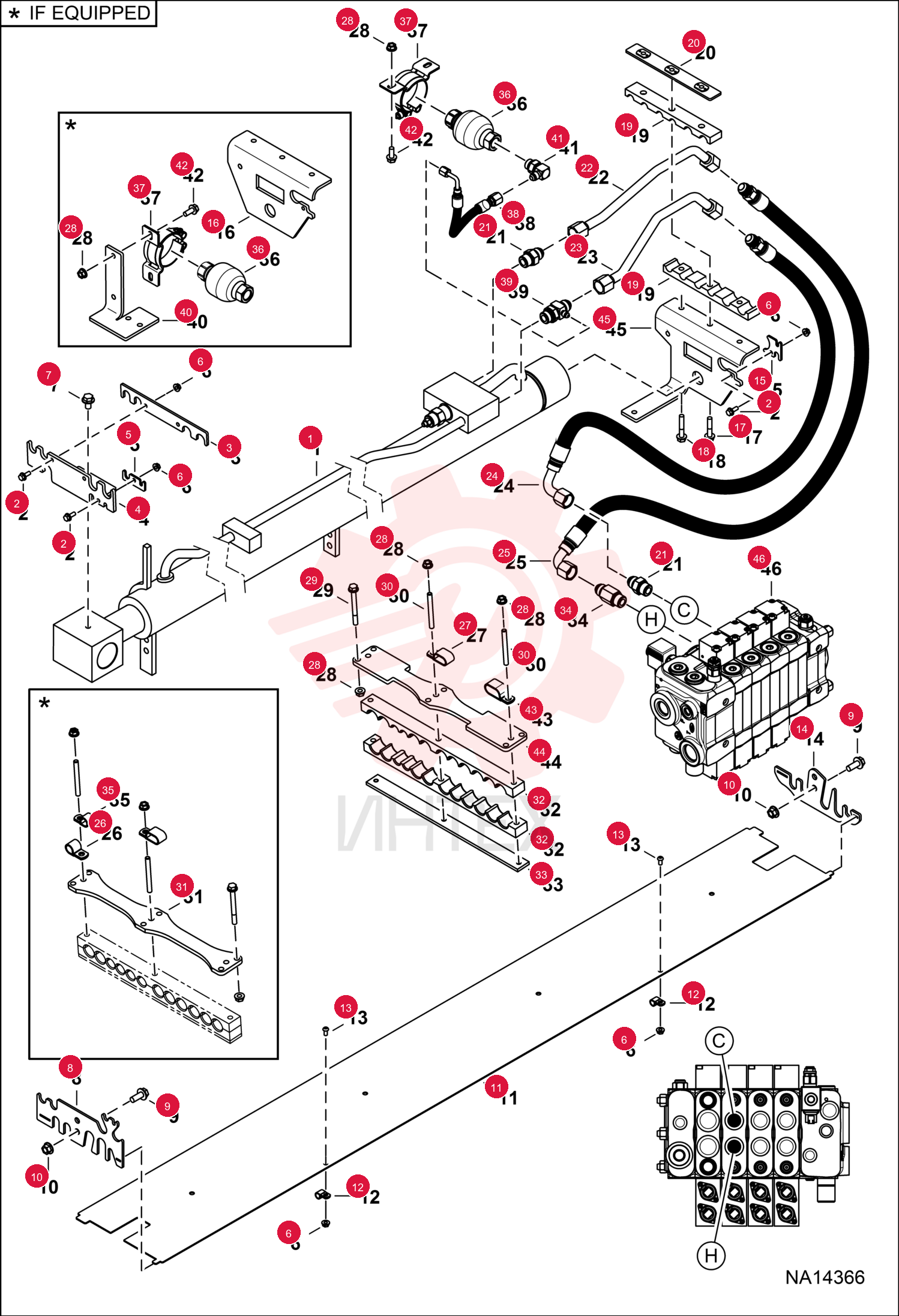

CYL HYDR EXT 7M

CYL HYDR EXT 7M

CYL HYDR EXT 7M

1 7336084

  • 7336084 - CYL HYDR EXT 7M

2 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

3 7182981

  • 7182981 - PLATE HOLDER

4 7182980

  • 7182980 - PLATE HOLDER

5 7182927

  • 7182927 - PLATE

6 43DM6

  • 43DM6 - NUT FLANGED HEX

7 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

8 7183137

  • 7183137 - PLATE

9 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

10 43DM10

  • 43DM10 - NUT FLANGED HEX

11 7182979

  • 7182979 - PLATE

12 30H21

  • 30H21 - CLAMP 10

13 27CM612

  • 27CM612 - SCREW

14 7183136

  • 7183136 - PLATE

15 7183140

  • 7183140 - PLATE

16 7182970

  • 7182970 - BRACKET

17 29CM840

  • 29CM840 - SCREW FLGD HEX CAP

18 29CM845

  • 29CM845 - SCREW HEX FLANGE

19 29CM840

  • 29CM840 - SCREW FLGD HEX CAP

20 7166682

  • 7166682 - CLAMP PIPE

21 7195505

  • 7195505 - PLATE

22 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR

23 79K10

  • 79K10 - O RING 10

24 7270990

  • 7270990 - TUBELINE HYDRAULIC

25 7335893

  • 7335893 - TUBELINE HYDRAULIC

26 7156121

  • 7156121 - HOSE HYDRAULIC ASSY

27 7345234

  • 7345234 - HOSE HYDRAULIC

28 7156110

  • 7156110 - HOSE HYDRAULIC ASSY

29 7345235

  • 7345235 - HOSE HYDRAULIC

30 30H38

  • 30H38 - CLIP

31 31H31

  • 31H31 - CLIP

32 43DM8

  • 43DM8 - NUT FLANGED HEX

33 29CM880

  • 29CM880 - BOLT

34 7361227

  • 7361227 - SCREW HEX

35 7251258

  • 7251258 - CLAMP

36 7349243

  • 7349243 - CLAMP HOSE

37 7169265

  • 7169265 - PLATE

38 7169182

  • 7169182 - FITTING HYDRAULIC

39 79K10

  • 79K10 - O RING 10

40 30H30

  • 30H30 - CLIP

41 7202916

  • 7202916 - ACCUMULATOR HYDRAULIC

42 7293816

  • 7293816 - CLAMP ACCUMULATOR

43 7335933

  • 7335933 - HOSE HYDRAULIC ASSY

44 7335934

  • 7335934 - FITTING HYDRAULIC TEE

45 79K10

  • 79K10 - O RING 10

46 7336069

  • 7336069 - ACCUMULATOR HOLDER

47 17KB0608

  • 17KB0608 - FITTING
  • HYD ELBOW

48 79K8

  • 79K8 - O RING 10

49 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

50 31H38

  • 31H38 - CLAMP

51 7355602

  • 7355602 - PLATE COVER

52 7350494

  • 7350494 - BRACKET TUBELINE
