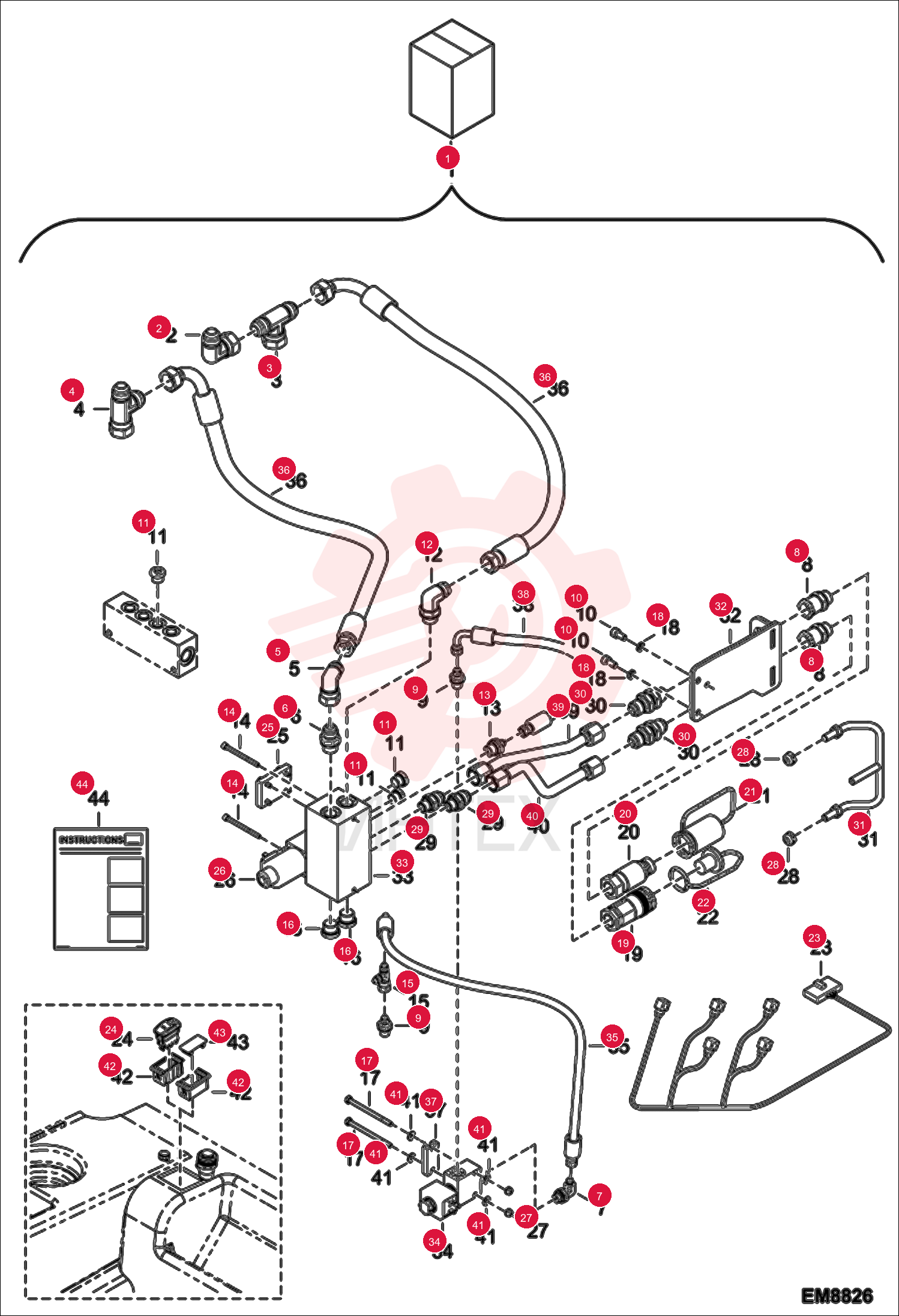

REAR AUXILIARY KIT (TIER 3)

REAR AUXILIARY KIT (TIER 3)

REAR AUXILIARY KIT (TIER 3)

1 6933413

  • 6933413 - REAR AUXILIARY KIT (TIER 3)

2 008372-14Q

  • 008372-14Q - ELBOW

3 008372-21X

  • 008372-21X - TEE

4 008372-34M

  • 008372-34M - UNION

5 010370-90W

  • 010370-90W - ELBOW PIECE

6 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

7 015370-11P

  • 015370-11P - ELBOW PIECE

8 7225156

  • 7225156 - FITTING
  • HYD

9 022375-28V

  • 022375-28V - UNION

10 6GM816

  • 6GM816 - SCREW HEX SOCKT 10.9

11 56029-2

  • 56029-2 - PLUG MALE 3/8 BSP ALLEN

12 7244882

  • 7244882 - FITTING HYDRAULIC

13 65614-0

  • 65614-0 - UNION

14 68566-9

  • 68566-9 - SCREW

15 69485-1

  • 69485-1 - TEE

16 78743-2

  • 78743-2 - PLUG

17 80643-0

  • 80643-0 - SCREX

18 89519-3

  • 89519-3 - WASHER

19 7225158

  • 7225158 - COUPLER

20 7225159

  • 7225159 - COUPLER

21 7225160

  • 7225160 - CAP

22 7225161

  • 7225161 - CAP

23 96589-7

  • 96589-7 - WIRE HARNESS

24 6927725

  • 6927725 - SWITCH
  • REAR HYD

25 98353-6

  • 98353-6 - PLATE

26 98360-1

  • 98360-1 - VALVE
  • CONTROL

27 100345-06W

  • 100345-06W - NUT

28 7252655

  • 7252655 - NUT LOCK

29 100375-39T

  • 100375-39T - UNION 7/8 JIC 3/8 BSP

30 100375-52H

  • 100375-52H - UNION

31 6910517

  • 6910517 - PROTECTOR

32 6910523

  • 6910523 - SUPPORT

33 6911079

  • 6911079 - HYDRAULIC BLOCK

34 6911845

  • 6911845 - SOLENOID 2-2

35 6933605

  • 6933605 - HOSE
  • HYD

36 6913675

  • 6913675 - FLEXIBLE

37 6915305

  • 6915305 - SPACER

38 6933606

  • 6933606 - HOSE
  • HYD

39 6922003

  • 6922003 - HYDRAULIC TUBE

40 6922004

  • 6922004 - HYDRAULIC TUBE

41 000350-01U

  • 000350-01U - WASHER

42 7178511

  • 7178511 - SOCKET
  • END

43 7178513

  • 7178513 - CAP
  • SOCKET

44 6986655

  • 6986655 - INSTRUCTION
  • INSTALLATION
