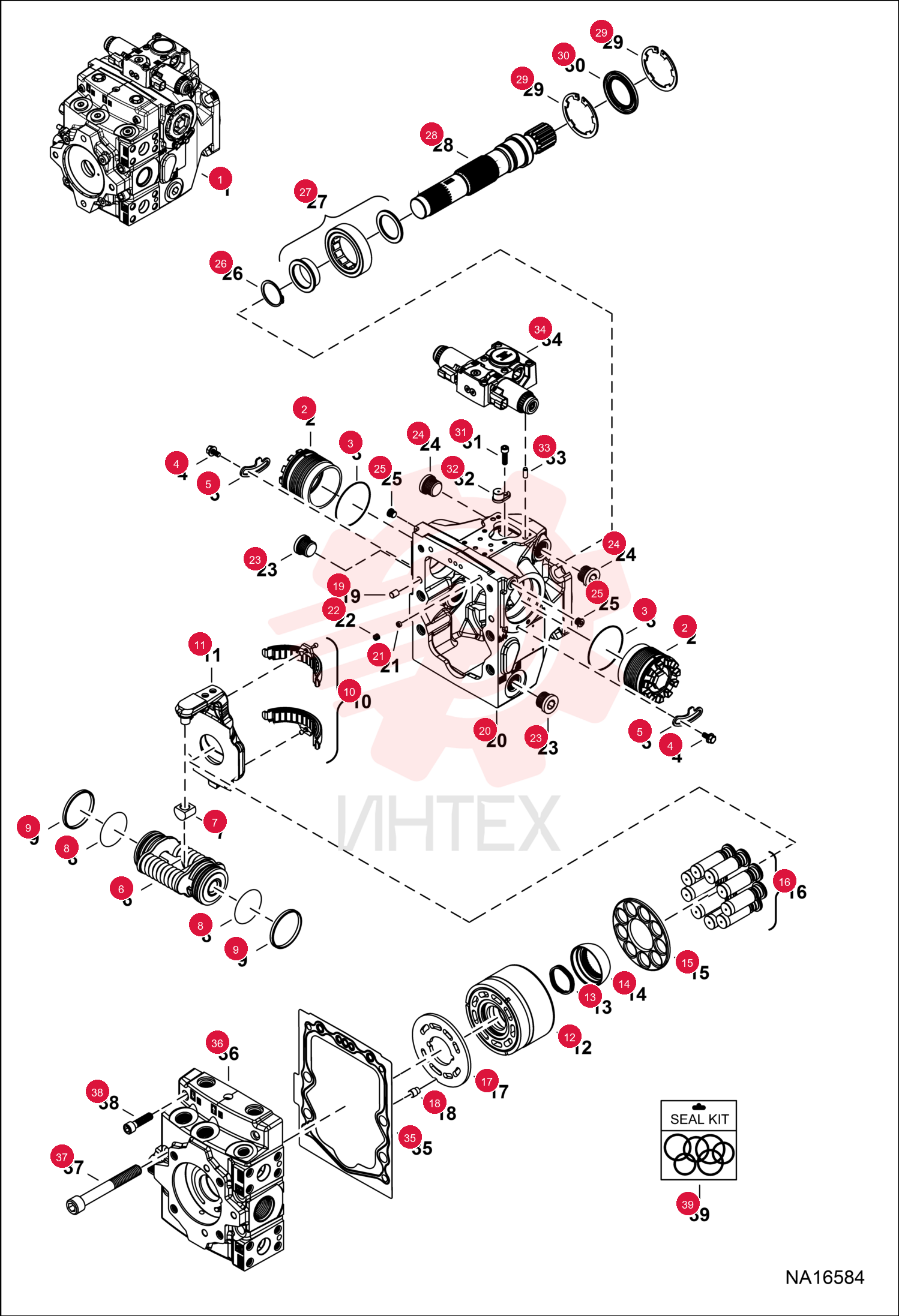

PUMP HYDST 78 CC

PUMP HYDST 78 CC

PUMP HYDST 78 CC

1 7329983

  • 7329983 - PUMP HYDST 78 CC

2 7031334

  • 7031334 - KIT PISTON SERVO

3 7021886

  • 7021886 - O-RING

4 6921543

  • 6921543 - SCREW

5 7031335

  • 7031335 - PLATE LOCK

6 7021882

  • 7021882 - KIT PISTON SERVO

7 7353663

  • 7353663 - BLOCK SLIDER

8 7031416

  • 7031416 - O-RING

9 7027453

  • 7027453 - KIT SEAL

10 7021881

  • 7021881 - KIT SWASHPLATE

11 7031338

  • 7031338 - SWASHPLATE

12 7353672

  • 7353672 - KIT CYLINDER BLOCK

13 7031422

  • 7031422 - VALVE PLATE

14 7021878

  • 7021878 - PIN

15 6518460

  • 6518460 - PIN

16 7021894

  • 7021894 - HOUSING

17 7008839

  • 7008839 - SCREEN

18 7031337

  • 7031337 - SCREEN

19 7353676

  • 7353676 - PLUG ASSEMBLY

20 47K7

  • 47K7 - PLUG

21 6662103

  • 6662103 - PLUG

22 7021898

  • 7021898 - RING RETAINING

23 7021896

  • 7021896 - BEARING ROLLER

24 7353669

  • 7353669 - ASSY SHAFT

25 7021897

  • 7021897 - RING RETAINING

26 7021799

  • 7021799 - O-RING

27 7031331

  • 7031331 - SCREW

28 7031332

  • 7031332 - MAGNET

29 7008855

  • 7008855 - DOWEL PIN

30 7021891

  • 7021891 - GASKET END CAP

31 7021892

  • 7021892 - SCREW

32 7021893

  • 7021893 - SCREW

33 7353668

  • 7353668 - KIT SEAL
