Bobcat
/
V723
/

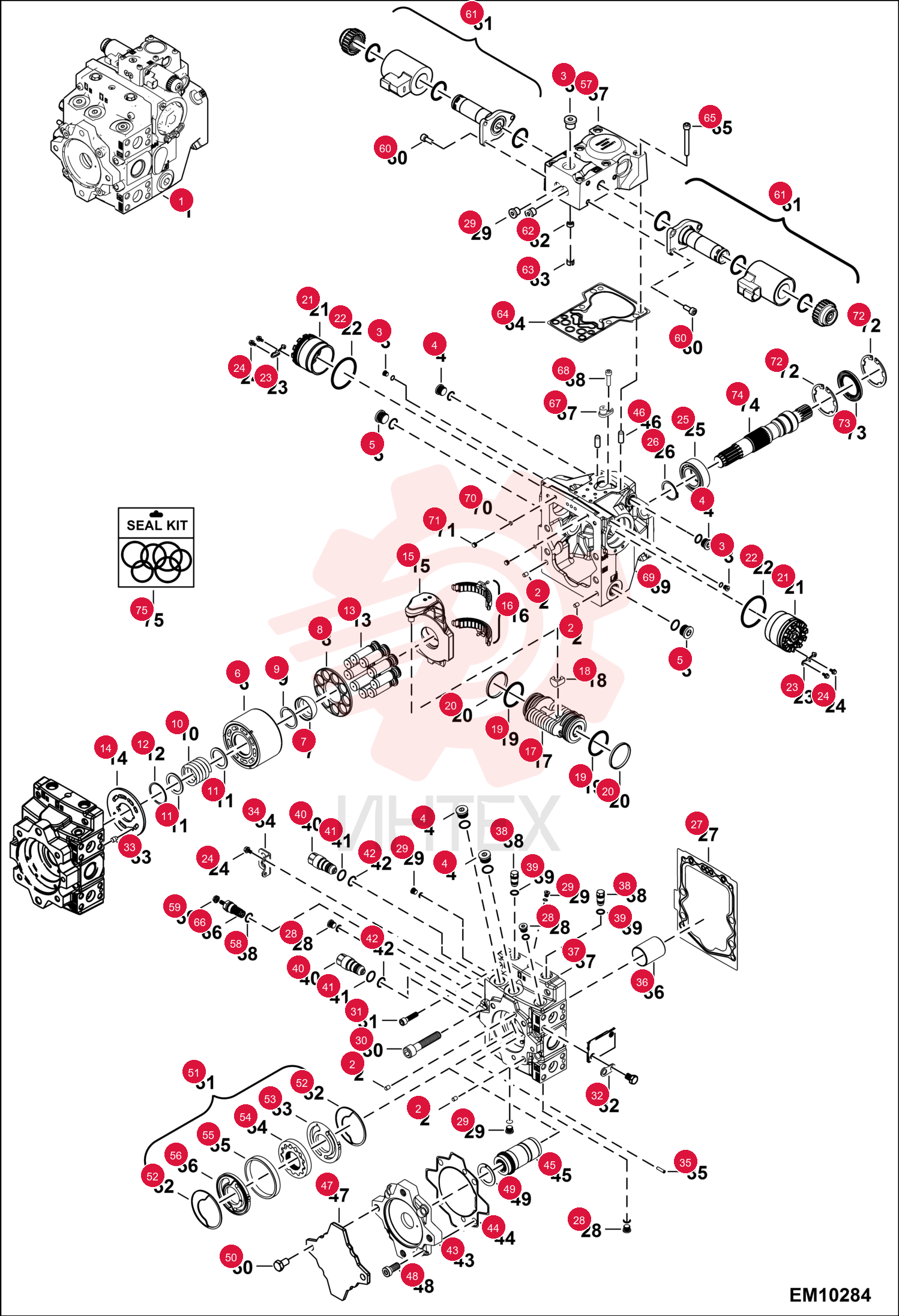

PUMP HYDST 78CC

PUMP HYDST 78CC

PUMP HYDST 78CC

1 7236348

  • 7236348 - PUMP HYDST 78CC

2 6518460

  • 6518460 - PIN

3 7008837

  • 7008837 - PLUG

4 6921563

  • 6921563 - PLUG

5 7031336

  • 7031336 - PLUG

6 7031349

  • 7031349 - BLOCK CYLINDER

7 7031421

  • 7031421 - GUIDE RETAINER

8 7021873

  • 7021873 - RETAINER SLIPPER

9 7031348

  • 7031348 - WAVE SPRING

10 7021875

  • 7021875 - SPRING

11 7021876

  • 7021876 - WASHER

12 7021877

  • 7021877 - RING RETAINING

13 7021880

  • 7021880 - PISTON

14 7031422

  • 7031422 - VALVE PLATE

15 7031338

  • 7031338 - SWASHPLATE

16 7021881

  • 7021881 - KIT SWASHPLATE

17 7021882

  • 7021882 - KIT PISTON SERVO

18 7021883

  • 7021883 - BLOCK SLIDER

19 7031416

  • 7031416 - O-RING

20 7027453

  • 7027453 - KIT SEAL

21 7031334

  • 7031334 - KIT PISTON SERVO

22 7031335

  • 7031335 - PLATE LOCK

23 7008858

  • 7008858 - SCREW

24 7021896

  • 7021896 - BEARING ROLLER

25 7021898

  • 7021898 - RING RETAINING

26 7021891

  • 7021891 - GASKET END CAP

27 6921561

  • 6921561 - PLUG

28 7022520

  • 7022520 - PLUG

29 7021892

  • 7021892 - SCREW

30 7021893

  • 7021893 - SCREW

31 6662126

  • 6662126 - BRACKET

32 7021878

  • 7021878 - PIN

33 6645066

  • 6645066 - BRK.LIFT

34 7021890

  • 7021890 - ORIFICE

35 7031417

  • 7031417 - BUSHING

36 7021888

  • 7021888 - CAP END ASSY

37 7021904

  • 7021904 - PLUG PRESSURE

38 7024697

  • 7024697 - O-RING

39 7031419

  • 7031419 - VALVE

40 7031339

  • 7031339 - O-RING

41 7021903

  • 7021903 - O-RING

42 7008841

  • 7008841 - ADAPTER FLANGE
  • SAE B

43 7021899

  • 7021899 - SEAL

44 7021900

  • 7021900 - COUPLING ELEMENT

45 7008855

  • 7008855 - DOWEL PIN

46 7008866

  • 7008866 - SCREW

47 7008840

  • 7008840 - THRUST PLATE

48 7021906

  • 7021906 - CHARGE PUMP KIT

49 7021907

  • 7021907 - O-RING

50 7031343

  • 7031343 - PLATE

51 7031344

  • 7031344 - GEAR

52 7031345

  • 7031345 - PUMP CHARGE

53 7031346

  • 7031346 - PLATE

54 7031330

  • 7031330 - KIT
  • CONTROL

55 7024698

  • 7024698 - O-RING

56 7031341

  • 7031341 - NUT

57 7008859

  • 7008859 - SCREW

58 7008838

  • 7008838 - PROPORTIONAL SOLENOID

59 7008867

  • 7008867 - DEUTSCH CONNECTOR

60 7008839

  • 7008839 - SCREEN

61 7022350

  • 7022350 - RING

62 7022351

  • 7022351 - GASKET

63 7008857

  • 7008857 - SCREW

64 7008874

  • 7008874 - CHARGE RELIEF VALVE KIT

65 7031332

  • 7031332 - MAGNET

66 7031331

  • 7031331 - SCREW

67 7021894

  • 7021894 - HOUSING

68 7021897

  • 7021897 - RING RETAINING

69 7021799

  • 7021799 - O-RING

70 7031418

  • 7031418 - SHAFT

71 7021917

  • 7021917 - KIT
  • SEAL
