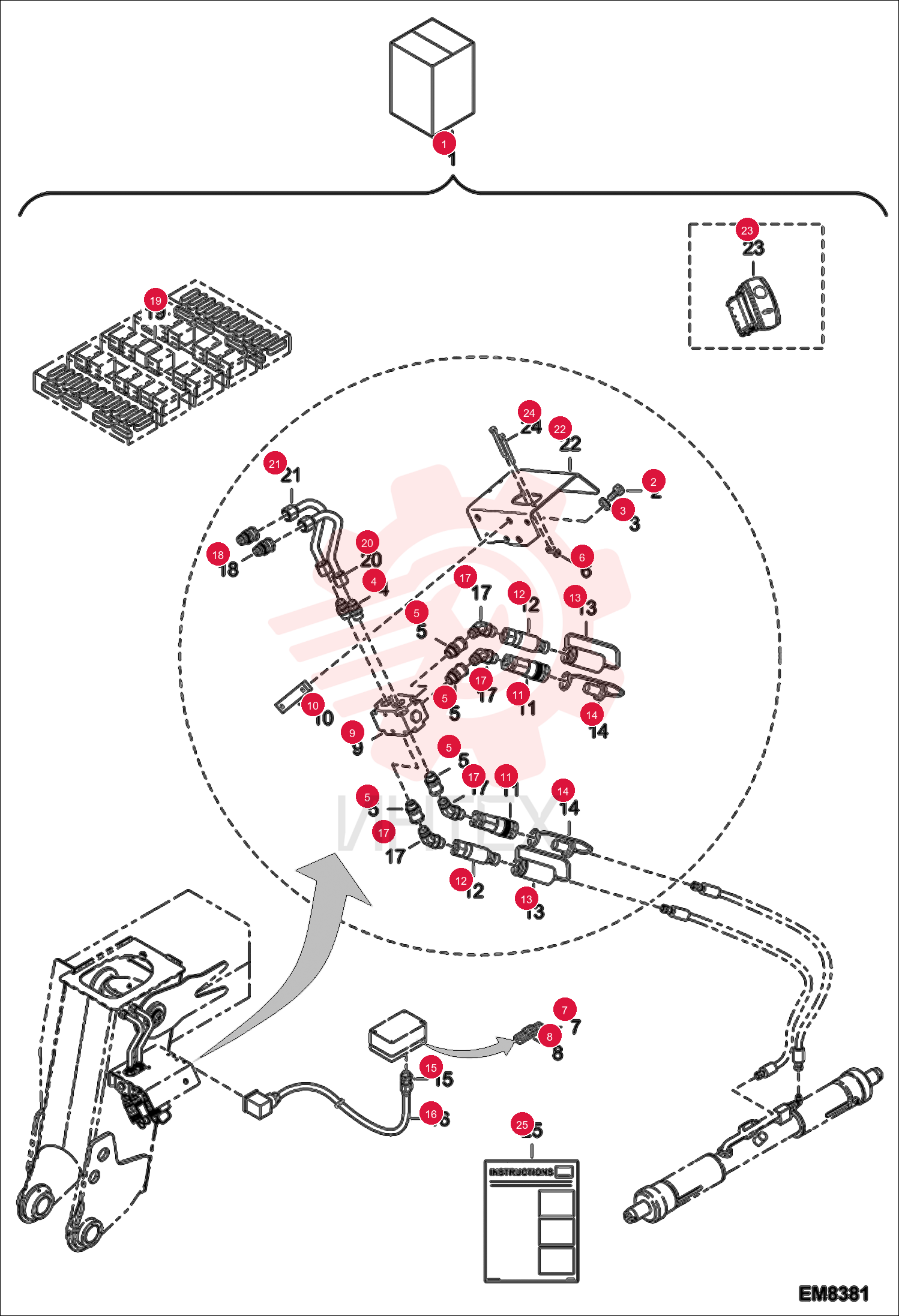

KIT, 2ND HYDRAULIC FUNCTION ON BOOM

KIT, 2ND HYDRAULIC FUNCTION ON BOOM

KIT, 2ND HYDRAULIC FUNCTION ON BOOM

1 6925381

  • 6925381 - KIT
  • 2ND HYDRAULIC FUNCTION ON BOOM

2 6924319

  • 6924319 - KIT
  • 2ND HYDRAULIC FUNCTION ON BOOM

3 1CM1025

  • 1CM1025 - BOLT

4 1EM100

  • 1EM100 - WASHER PLAIN

5 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

6 7225156

  • 7225156 - FITTING
  • HYD

7 01681-6

  • 01681-6 - NUT

8 79531-0

  • 79531-0 - CONNECTOR

9 79532-8

  • 79532-8 - CONNECTOR

10 92131-2

  • 92131-2 - ELECTRO VALVE

11 95791-0

  • 95791-0 - PLATE

12 7225158

  • 7225158 - COUPLER

13 7225159

  • 7225159 - COUPLER

14 7225160

  • 7225160 - CAP

15 7225161

  • 7225161 - CAP

16 7239436

  • 7239436 - GLAND
  • CABLE

17 97721-5

  • 97721-5 - CABLE

18 100371-06X

  • 100371-06X - ELBOW

19 100375-52H

  • 100375-52H - UNION

20 6910955

  • 6910955 - RELAY
  • MICRO

21 6914645

  • 6914645 - PIPE

22 6914646

  • 6914646 - PIPE

23 6925741

  • 6925741 - HOUSING

24 6927713

  • 6927713 - SWITCH

25 96604-4

  • 96604-4 - SWITCH

26 01511-5

  • 01511-5 - SCREW

27 6986829

  • 6986829 - INSTRUCTIONS
  • INSTALLATION
