Bobcat
/
V723
/

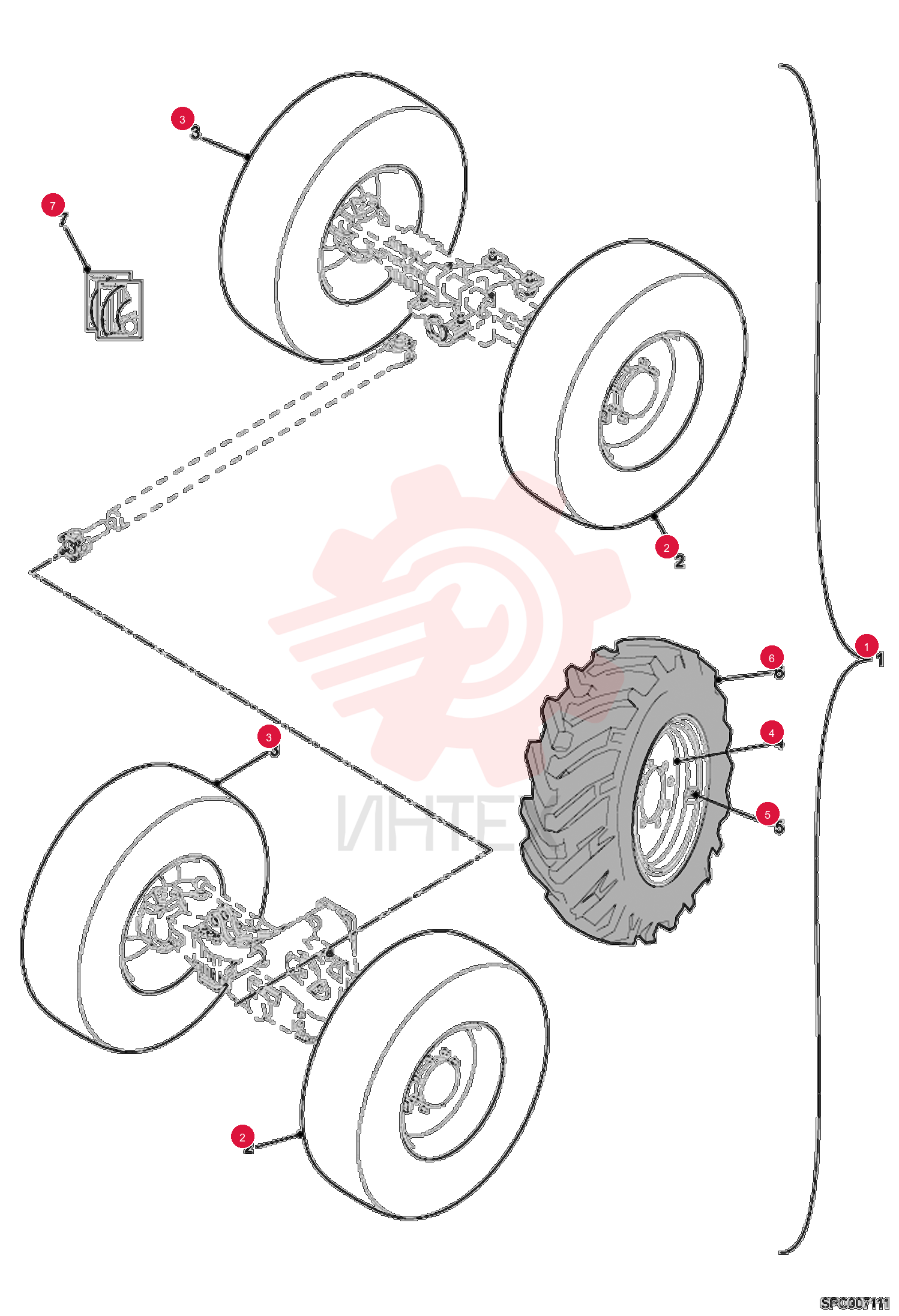

SET OF 4 WHEEL ASSY

SET OF 4 WHEEL ASSY

SET OF 4 WHEEL ASSY

1 6915052

  • 6915052 - SET OF 4 WHEEL ASSY

2 89699-3

  • 89699-3 - RIM

3 7192607

  • 7192607 - VALVE

4 7230672

  • 7230672 - TIRE 400/80-24

5 6913173

  • 6913173 - CHART
  • NON LOAD

6 6913186

  • 6913186 - CHART
  • ANGLE BOOM

7 6914101

  • 6914101 - CHART
  • FRAME TILT CARRIAGE

8 6914185

  • 6914185 - V723 48/60 INCH SIDE TILT FRAME

9 6913184

  • 6913184 - CHART
  • BALE CARRIER

10 6913183

  • 6913183 - CHART
  • BUCKET

11 6913182

  • 6913182 - CHART
  • PALLET FORK

12 6913181

  • 6913181 - CHART
  • FRAME GRAPPLE AND FORK

13 6913180

  • 6913180 - CHART
  • BALE HANDLER

14 6913178

  • 6913178 - CHART
  • BUCKET

15 6913177

  • 6913177 - CHART
  • BUCKET COMBO

16 6913176

  • 6913176 - CHART
  • TRUSS BOOM

17 6913175

  • 6913175 - CHART
  • BUCKET

18 6913940

  • 6913940 - CHART
  • PALLET FORK

19 6913939

  • 6913939 - CHART
  • COVER

20 6913938

  • 6913938 - KIT LOAD CHART V723FL

21 6913173

  • 6913173 - CHART
  • NON LOAD

22 6913186

  • 6913186 - CHART
  • ANGLE BOOM

23 6914101

  • 6914101 - CHART
  • FRAME TILT CARRIAGE

24 6914185

  • 6914185 - V723 48/60 INCH SIDE TILT FRAME

25 6913179

  • 6913179 - CHART
  • GRAPPLE

26 6913184

  • 6913184 - CHART
  • BALE CARRIER

27 6913183

  • 6913183 - CHART
  • BUCKET

28 6913182

  • 6913182 - CHART
  • PALLET FORK

29 6913181

  • 6913181 - CHART
  • FRAME GRAPPLE AND FORK

30 6913158

  • 6913158 - KIT LOAD CHART V723

31 6913180

  • 6913180 - CHART
  • BALE HANDLER

32 6913179

  • 6913179 - CHART
  • GRAPPLE

33 6913178

  • 6913178 - CHART
  • BUCKET

34 6913177

  • 6913177 - CHART
  • BUCKET COMBO

35 6913176

  • 6913176 - CHART
  • TRUSS BOOM

36 6913175

  • 6913175 - CHART
  • BUCKET

37 6913940

  • 6913940 - CHART
  • PALLET FORK

38 6913939

  • 6913939 - CHART
  • COVER

39 6913938

  • 6913938 - KIT LOAD CHART V723FL

40 6913173

  • 6913173 - CHART
  • NON LOAD

41 6913186

  • 6913186 - CHART
  • ANGLE BOOM

42 6914101

  • 6914101 - CHART
  • FRAME TILT CARRIAGE

43 6914185

  • 6914185 - V723 48/60 INCH SIDE TILT FRAME

44 6913184

  • 6913184 - CHART
  • BALE CARRIER

45 6913183

  • 6913183 - CHART
  • BUCKET

46 6913182

  • 6913182 - CHART
  • PALLET FORK

47 6913181

  • 6913181 - CHART
  • FRAME GRAPPLE AND FORK

48 6913180

  • 6913180 - CHART
  • BALE HANDLER

49 6913179

  • 6913179 - CHART
  • GRAPPLE

50 6913178

  • 6913178 - CHART
  • BUCKET

51 6913177

  • 6913177 - CHART
  • BUCKET COMBO

52 6913176

  • 6913176 - CHART
  • TRUSS BOOM

53 6913175

  • 6913175 - CHART
  • BUCKET

54 6913174

  • 6913174 - CHART
  • PALLET FORK

55 6913160

  • 6913160 - CHART
  • COVER
