Bobcat
/
V723
/

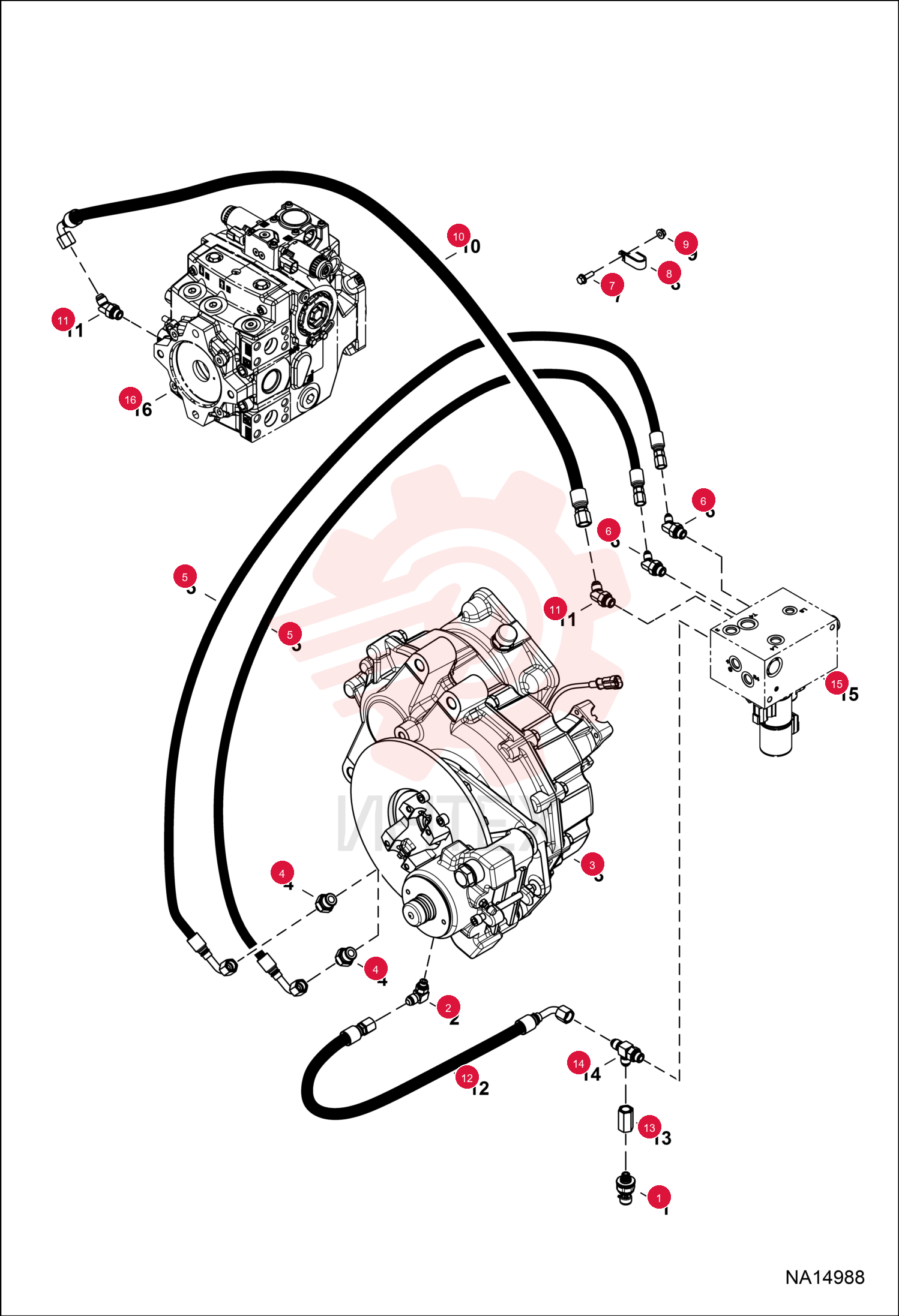

O RING 10

O RING 10

O RING 10

1 79K4

  • 79K4 - O RING 10

2 7323780

  • 7323780 - SENSOR PRESSURE

3 17KB0604

  • 17KB0604 - ELBOW UNION

4 79K4

  • 79K4 - O RING 10

5 15KB0608

  • 15KB0608 - FITTING
  • HYD CONNECTOR

6 79K8

  • 79K8 - O RING 10

7 7163252

  • 7163252 - HOSE HYDRAULIC ASSY

8 18KB0406

  • 18KB0406 - FITTING
  • HYD ELBOW

9 79K6

  • 79K6 - O RING 10

10 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

11 31H25

  • 31H25 - HOSE CLAMP

12 43DM6

  • 43DM6 - NUT FLANGED HEX

13 7269692

  • 7269692 - HOSE HYDRAULIC ASSY

14 18KB0606

  • 18KB0606 - FITTING
  • HYD ELBOW

15 79K6

  • 79K6 - O RING 10

16 7226753

  • 7226753 - HOSE HYDRAULIC ASSY

17 7214282

  • 7214282 - FITTING HYDRAULIC

18 21KB0606

  • 21KB0606 - FITTING
  • HYD TEE

19 79K6

  • 79K6 - O RING 10
