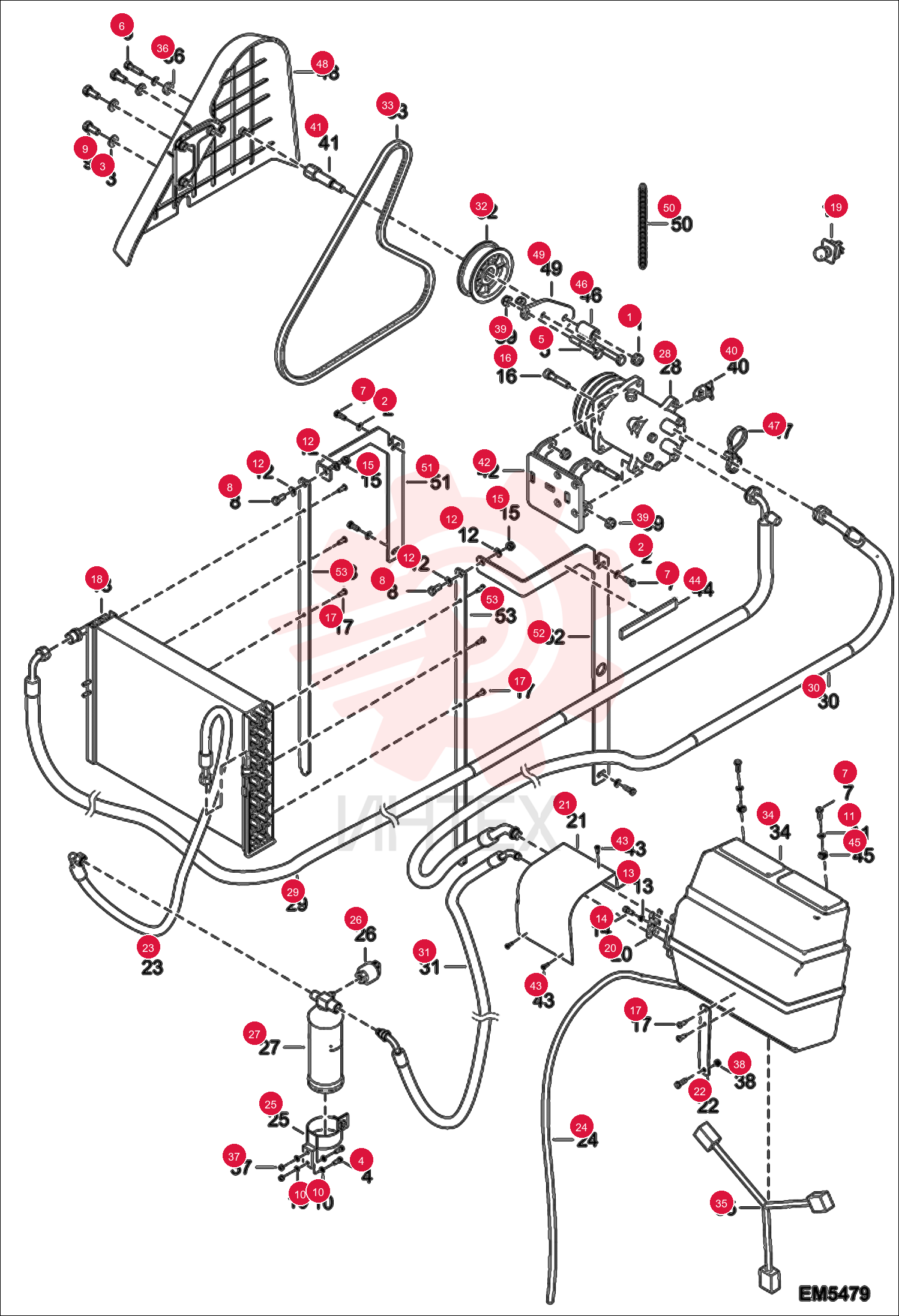

NUT 000345-96E (2)

NUT 000345-96E (2)

NUT 000345-96E (2)

1 000345-96E

  • 000345-96E - NUT

2 000350-01U

  • 000350-01U - WASHER

3 000350-03W

  • 000350-03W - WASHER

4 01478-7

  • 01478-7 - SCREW

5 01522-2

  • 01522-2 - SCREW

6 01578-4

  • 01578-4 - SCREW

7 01591-7

  • 01591-7 - SCREW

8 4CM820

  • 4CM820 - SCREW HEX HD 8.8

9 1CM1025

  • 1CM1025 - BOLT

10 01695-6

  • 01695-6 - WASHER

11 01696-4

  • 01696-4 - WASHER

12 01697-2

  • 01697-2 - WASHER

13 13416-3

  • 13416-3 - WASHER

14 15354-4

  • 15354-4 - SCREW

15 01681-6

  • 01681-6 - NUT

16 54009-6

  • 54009-6 - SCREW

17 66679-2

  • 66679-2 - RIVET

18 81439-2

  • 81439-2 - CONDENSOR

19 88825-5

  • 88825-5 - SWITCH

20 88826-3

  • 88826-3 - BRACKET

21 88827-1

  • 88827-1 - COVER

22 88830-5

  • 88830-5 - PLATE

23 88844-6

  • 88844-6 - HOSE

24 88848-7

  • 88848-7 - HOSE
  • WATER 79" (2 m) LONG

25 89641-5

  • 89641-5 - BRACKET

26 89642-3

  • 89642-3 - CONNECTOR

27 89643-1

  • 89643-1 - FILTER

28 89644-9

  • 89644-9 - COMPRESSOR
  • A/C

29 89647-2

  • 89647-2 - HOSE

30 89648-0

  • 89648-0 - HOSE

31 89649-8

  • 89649-8 - HOSE

32 90531-5

  • 90531-5 - ROLLER

33 90545-5

  • 90545-5 - BELT

34 7310385

  • 7310385 - CONDITIONER AIR

35 96083-1

  • 96083-1 - HARNESS

36 97610-0

  • 97610-0 - WASHER

37 7248549

  • 7248549 - NUT

38 100345-06W

  • 100345-06W - NUT

39 7252655

  • 7252655 - NUT LOCK

40 6679034

  • 6679034 - MOUNT

41 6908181

  • 6908181 - SPINDLE

42 6909391

  • 6909391 - COMPRESSOR BRACKET

43 6910951

  • 6910951 - SCREW

44 6913148

  • 6913148 - ADHESIVE SPONGE

45 6914086

  • 6914086 - NUT

46 6914328

  • 6914328 - SPACER

47 6915851

  • 6915851 - COLLAR

48 6919502

  • 6919502 - BELT PROTECTOR

49 6919954

  • 6919954 - PULLEY SUPPORT

50 6921416

  • 6921416 - PROTECTOR

51 6927964

  • 6927964 - BRACKET
  • CONDENSER

52 6927965

  • 6927965 - BRACKET
  • CONDENSER

53 6927966

  • 6927966 - BRACKET
  • CONDENSER
