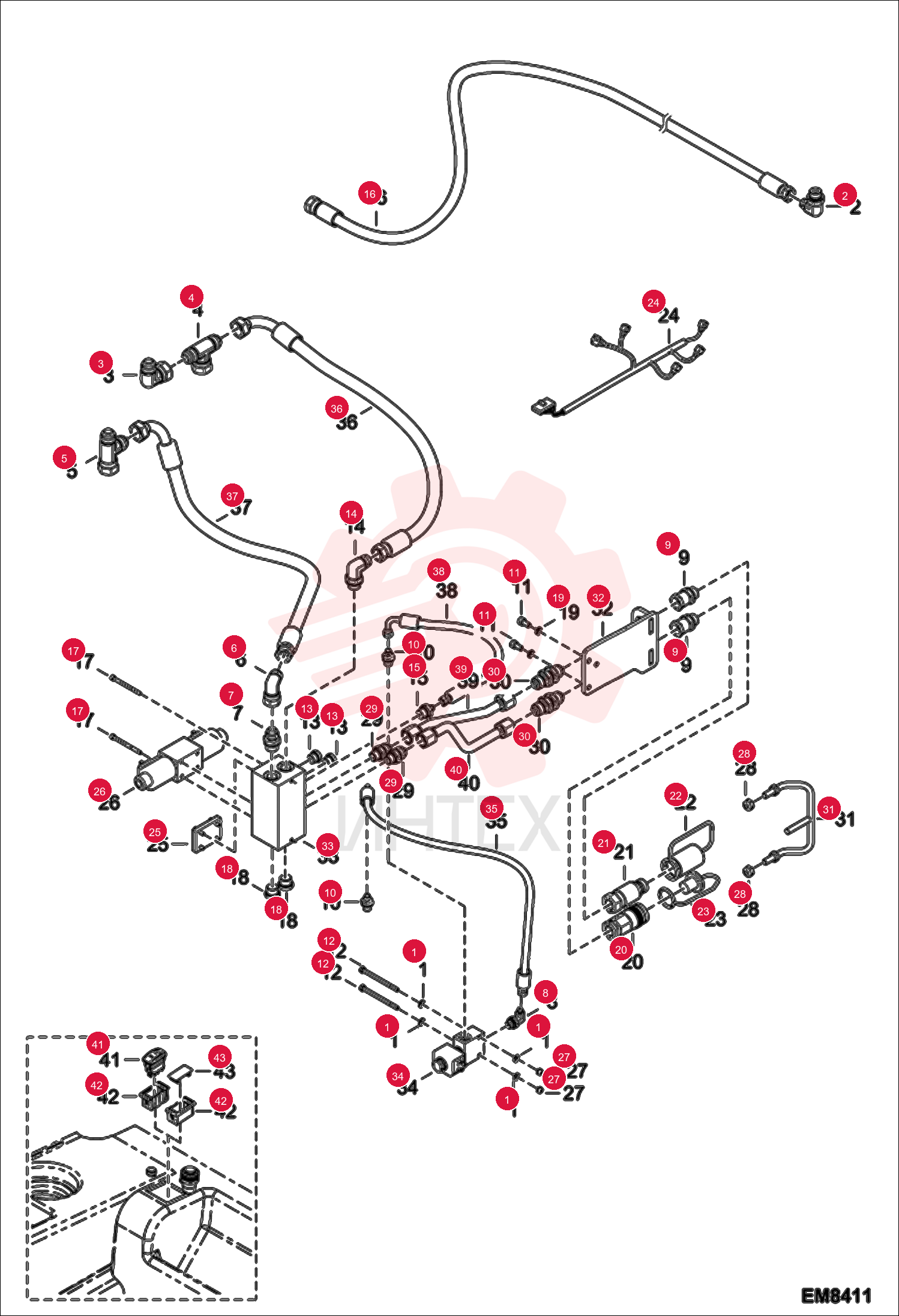

WASHER 000350-01U (6)

WASHER 000350-01U (6)

WASHER 000350-01U (6)

1 000350-01U

  • 000350-01U - WASHER

2 008372-01B

  • 008372-01B - ELBOW PIECE

3 008372-14Q

  • 008372-14Q - ELBOW

4 008372-21X

  • 008372-21X - TEE

5 008372-34M

  • 008372-34M - UNION

6 010370-90W

  • 010370-90W - ELBOW PIECE

7 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

8 015370-11P

  • 015370-11P - ELBOW PIECE

9 7225156

  • 7225156 - FITTING
  • HYD

10 022375-28V

  • 022375-28V - UNION

11 6GM816

  • 6GM816 - SCREW HEX SOCKT 10.9

12 1CM650

  • 1CM650 - SCREW HEX CAP

13 56029-2

  • 56029-2 - PLUG MALE 3/8 BSP ALLEN

14 7244882

  • 7244882 - FITTING HYDRAULIC

15 65614-0

  • 65614-0 - UNION

16 65715-5

  • 65715-5 - HOSE

17 74602-4

  • 74602-4 - HOSE

18 68566-9

  • 68566-9 - SCREW

19 78743-2

  • 78743-2 - PLUG

20 7225260

  • 7225260 - WASHER

21 7225158

  • 7225158 - COUPLER

22 7225159

  • 7225159 - COUPLER

23 7225160

  • 7225160 - CAP

24 7225161

  • 7225161 - CAP

25 96589-7

  • 96589-7 - WIRE HARNESS

26 98353-6

  • 98353-6 - PLATE

27 98360-1

  • 98360-1 - VALVE
  • CONTROL

28 100345-06W

  • 100345-06W - NUT

29 7252655

  • 7252655 - NUT LOCK

30 100375-39T

  • 100375-39T - UNION 7/8 JIC 3/8 BSP

31 100375-52H

  • 100375-52H - UNION

32 6910517

  • 6910517 - PROTECTOR

33 6910523

  • 6910523 - SUPPORT

34 6911079

  • 6911079 - HYDRAULIC BLOCK

35 6911845

  • 6911845 - SOLENOID 2-2

36 6912226

  • 6912226 - FLEXIBLE

37 6913675

  • 6913675 - FLEXIBLE

38 6913675

  • 6913675 - FLEXIBLE

39 6916079

  • 6916079 - HOSE

40 6922003

  • 6922003 - HYDRAULIC TUBE

41 6922004

  • 6922004 - HYDRAULIC TUBE

42 6927725

  • 6927725 - SWITCH
  • REAR HYD

43 7178511

  • 7178511 - SOCKET
  • END

44 7178513

  • 7178513 - CAP
  • SOCKET
