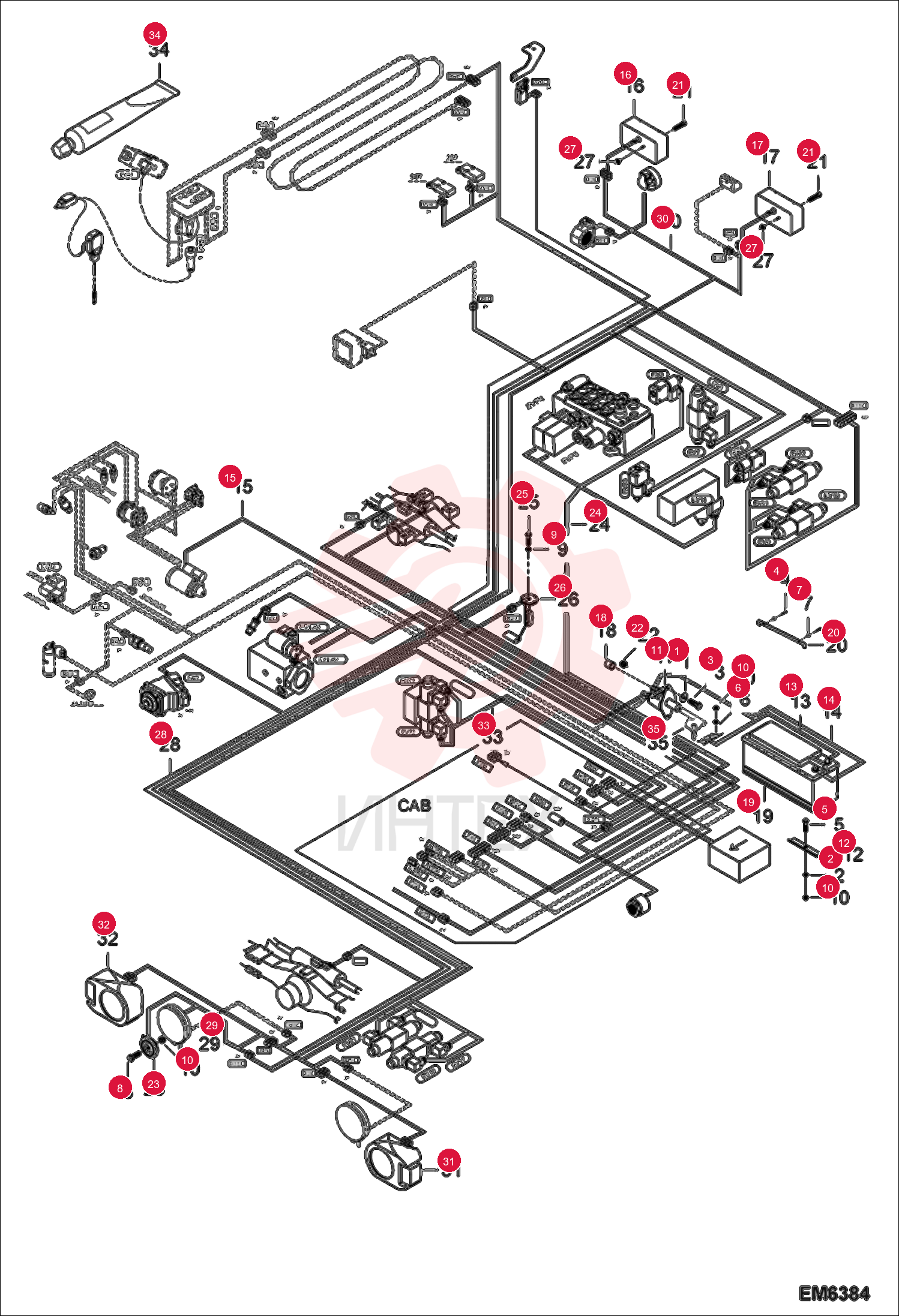

WASHER 000350-01U (4)

WASHER 000350-01U (4)

WASHER 000350-01U (4)

1 000350-01U

  • 000350-01U - WASHER

2 000350-02V

  • 000350-02V - WASHER

3 01591-7

  • 01591-7 - SCREW

4 4CM816

  • 4CM816 - SCREW HEX HD 8.8

5 01598-2

  • 01598-2 - SCREW

6 01697-2

  • 01697-2 - WASHER

7 01718-6

  • 01718-6 - WASHER

8 10947-0

  • 10947-0 - SCREW

9 13415-5

  • 13415-5 - WASHER

10 01681-6

  • 01681-6 - NUT

11 65764-3

  • 65764-3 - BATTERY
  • DISCONNECT

12 77136-0

  • 77136-0 - BRACKET

13 78869-5

  • 78869-5 - HARNESS
  • WIRE

14 79862-9

  • 79862-9 - WIRE HARNESS

15 7225546

  • 7225546 - LIGHT REAR RIGHT

16 7225545

  • 7225545 - LIGHT
  • REAR

17 85837-3

  • 85837-3 - NUT

18 7312553

  • 7312553 - BATTERY 1000 CCA DRY

19 96421-3

  • 96421-3 - PLATE

20 100329-01C

  • 100329-01C - SCREW

21 100345-06W

  • 100345-06W - NUT

22 100417-11D

  • 100417-11D - HORN

23 6932955

  • 6932955 - HARNESS MAIN VALVE

24 6911357

  • 6911357 - HARNESS
  • VALVE

25 6918271

  • 6918271 - SCREW

26 6933959

  • 6933959 - FUEL GAUGE

27 7225547

  • 7225547 - WASHER

28 6923912

  • 6923912 - MACHINE HARNESS

29 6932953

  • 6932953 - HARNESS FRAME

30 6927788

  • 6927788 - HARNESS
  • KLAXON

31 6927789

  • 6927789 - HARNESS
  • LIGHT

32 7164373

  • 7164373 - LIGHT
  • LEFT

33 7022666

  • 7022666 - BULB H4 60/55W 12V

34 7022668

  • 7022668 - BULB PY21W 12V

35 7022667

  • 7022667 - BULB W5W 12V

36 7164374

  • 7164374 - LIGHT
  • RIGHT

37 7022666

  • 7022666 - BULB H4 60/55W 12V

38 7022668

  • 7022668 - BULB PY21W 12V

39 7022667

  • 7022667 - BULB W5W 12V

40 6910891

  • 6910891 - WIRE HARNESS

41 6901596

  • 6901596 - GREASE

42 66181-9

  • 66181-9 - HANDLE
