New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

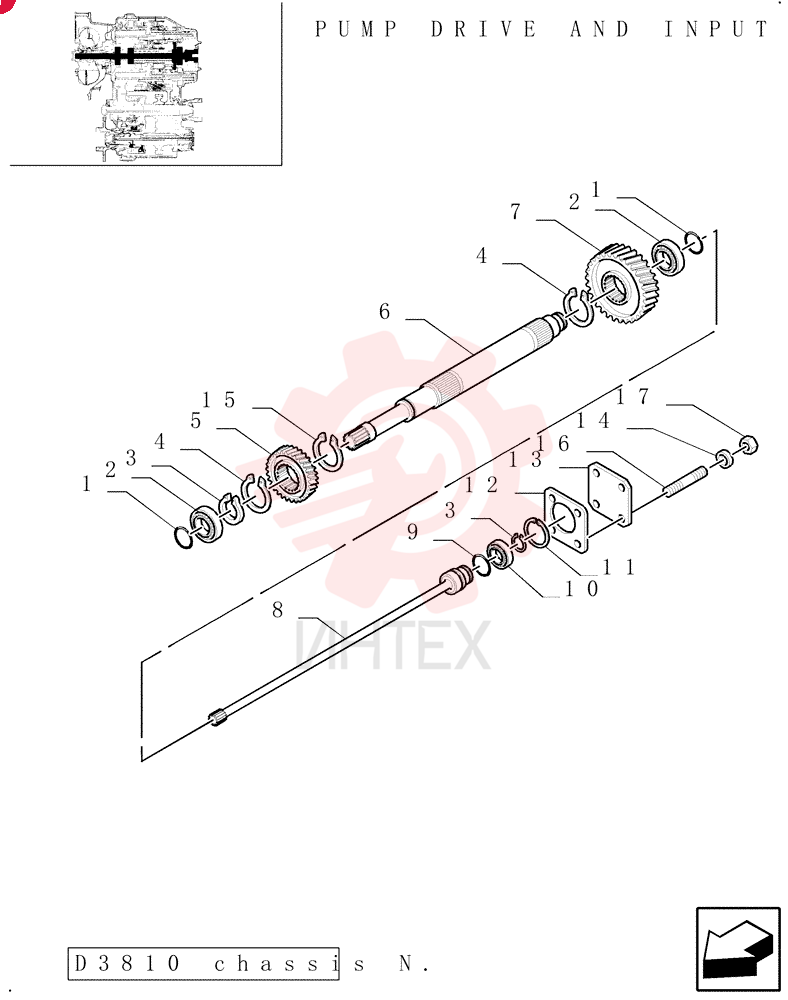

RING 9969070 (1)

RING 9969070 (1)

RING 9969070 (1)

1 9969070

  • 9969070 - RING

2 9970010

  • 9970010 - BEARING

3 9969023

  • 9969023 - SNAP RING

4 9969059

  • 9969059 - CIRCLIP

5 85808356

  • 85808356 - GEAR

6 85808354

  • 85808354 - SHAFT

7 85808357

  • 85808357 - GEAR

8 85808333

  • 85808333 - ROD

9 9969021

  • 9969021 - PISTON RING

10 9969022

  • 9969022 - BEARING

11 9969024

  • 9969024 - SNAP RING

12 9970015

  • 9970015 - SEAL

13 9969027

  • 9969027 - COVER

14 9970016

  • 9970016 - LOCK WASHER

15 85808355

  • 85808355 - SNAP RING

16 9970109

  • 9970109 - STUD

17 9970110

  • 9970110 - NUT
