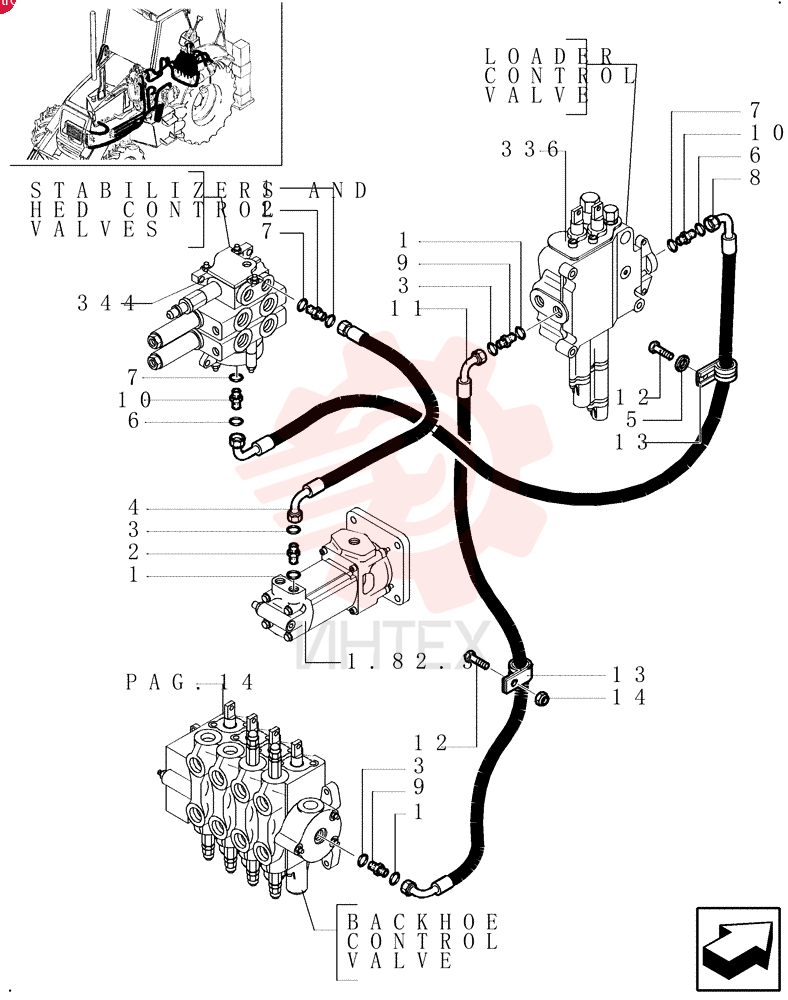

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro 9992069 (2)
1 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
2 83963000
- 83963000 - FITTING
- 1" - 14 ORFS x 7/8" - 14 ORB
3 89626929
- 89626929 - O-RING
- 0.116" Thk x 1.048" ID
- -914
- Cl 6
- 90 Duro
4 85812149
- 85812149 - FLEXIBLE HOSE
- 15.88mm ID x 650mm L
5 11190574
- 11190574 - BELLEVILLE WASHER
- M10 Bolt Size x 20mm OD x 2.3mm Thk
6 9991976
- 9991976 - O-RING
- 0.07" Thk x 0.739" ID
- -18
- Cl 6
- 90 Duro
7 167269
- 167269 - O-RING
- 0.097" Thk x 0.755" ID
- -910
- Cl 6
- 90 Duro
8 85812161
- 85812161 - FLEXIBLE HOSE
- 15.88mm ID x 1250mm L
9 85802958
- 85802958 - HYD CONNECTOR
10 85802642
- 85802642 - HYD CONNECTOR
11 85802776
- 85802776 - HYDRAULIC HOSE
- 19mm ID x 1150mm L
- SAE 100R2
12 15970724
- 15970724 - SCREW
- Hex
- M10 x 1.25 x 25mm
- Cl 8.8
- Full Thd
13 16204524
- 16204524 - BOLT
- Hex
- M10 x 1.25 x 35mm
- Cl 8.8
14 85802890
- 85802890 - CLAMP
- 28mm
- Coat
- 12.5mm Bolt Hole
- P Type
15 12574511
- 12574511 - LOCK NUT
- M10 x 1.25
- Cl 8
