New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

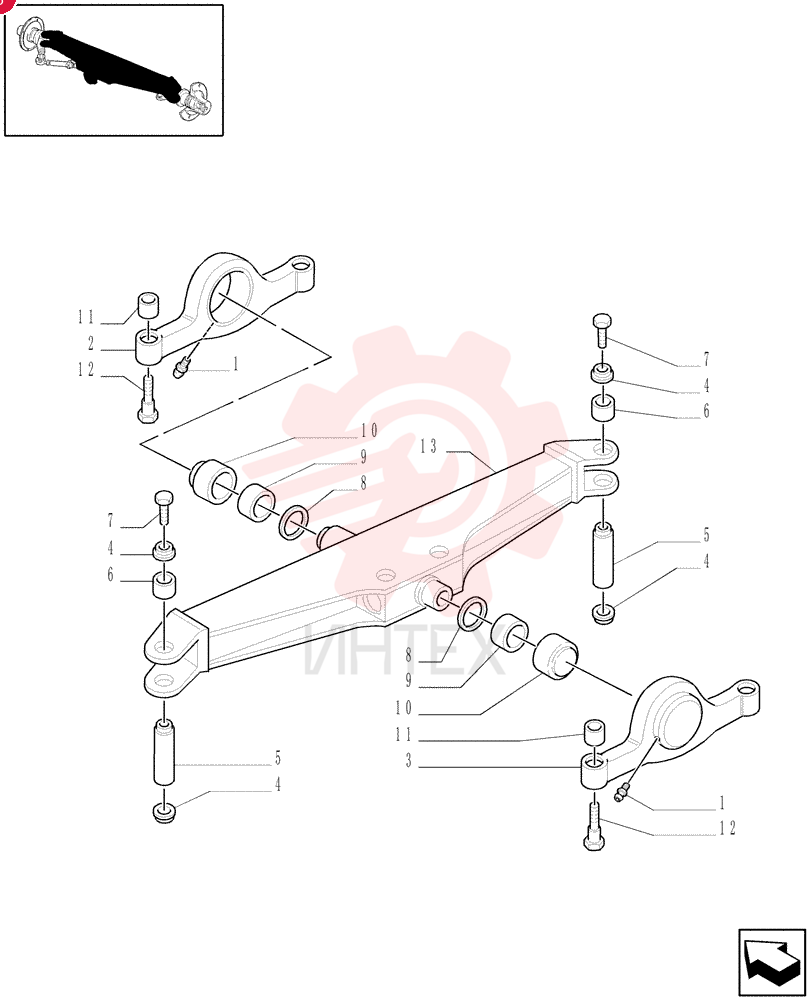

LUBE NIPPLE,Straight, 1/4"-28 x 0.54" 13406911 (1)

LUBE NIPPLE,Straight, 1/4"-28 x 0.54" 13406911 (1)

LUBE NIPPLE,Straight, 1/4"-28 x 0.54" 13406911 (1)

1 13406911

  • 13406911 - LUBE NIPPLE
  • Straight
  • 1/4"-28 x 0.54"

2 85801070

  • 85801070 - SUPPORT

3 85801069

  • 85801069 - SUPPORT

4 83964585

  • 83964585 - SEAL
  • 10.5mm ID x 54.8mm OD x 4.25mm Thk

5 83962803

  • 83962803 - PIN
  • 39.96mm OD x 171mm L

6 83962798

  • 83962798 - BUSHING

7 300383

  • 300383 - BOLT
  • Hex
  • M10 x 1.5 x 16mm
  • Cl 8.8
  • Full Thd

8 83961704

  • 83961704 - DISC

9 83961695

  • 83961695 - BUSHING
  • 66.9mm ID x 76.37mm OD x 40mm L

10 83961738

  • 83961738 - BUSHING
  • 76.71mm ID x 86.06mm OD x 40mm L

11 E2NN3N297AA

  • E2NN3N297AA - BUSHING

12 280344

  • 280344 - BOLT
  • Hex
  • 3/4" - 10 x 2 3/4"
  • Gr 8

13 85803081

  • 85803081 - STEERING AXLE
