New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

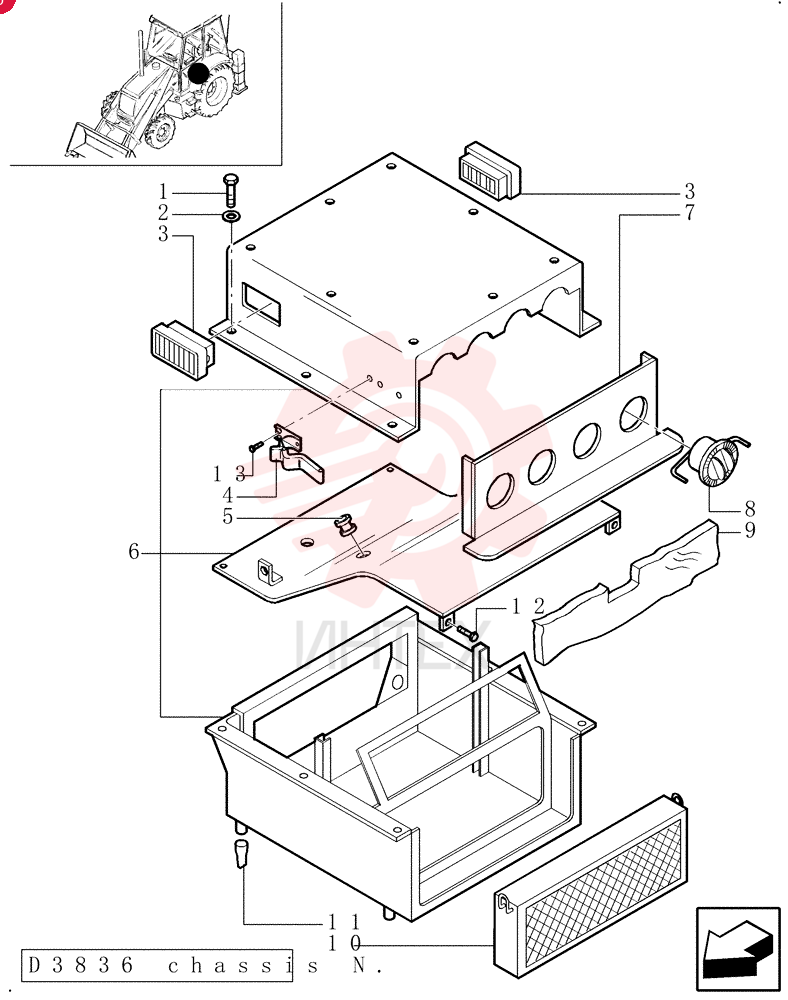

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd 16043624 (1)

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd 16043624 (1)

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd 16043624 (1)

1 16043624

  • 16043624 - SCREW
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

2 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

3 85804044

  • 85804044 - DIFFUSER

4 85801853

  • 85801853 - HANDLE

5 85804412

  • 85804412 - GROMMET

6 85804028

  • 85804028 - HOUSING

7 85811968

  • 85811968 - HOUSING

8 85804029

  • 85804029 - SUPPORT

9 85811969

  • 85811969 - GRILLE

10 85804030

  • 85804030 - DIFFUSER

11 85804073

  • 85804073 - CAB FILTER

12 85811970

  • 85811970 - CAB FILTER

13 85804072

  • 85804072 - CAB FILTER

14 85804043

  • 85804043 - DRAIN VALVE

15 85804992

  • 85804992 - SELF-TAP SCREW

16 85804993

  • 85804993 - SELF-TAP SCREW

17 85811972

  • 85811972 - RIVET
