New Holland Construction
/

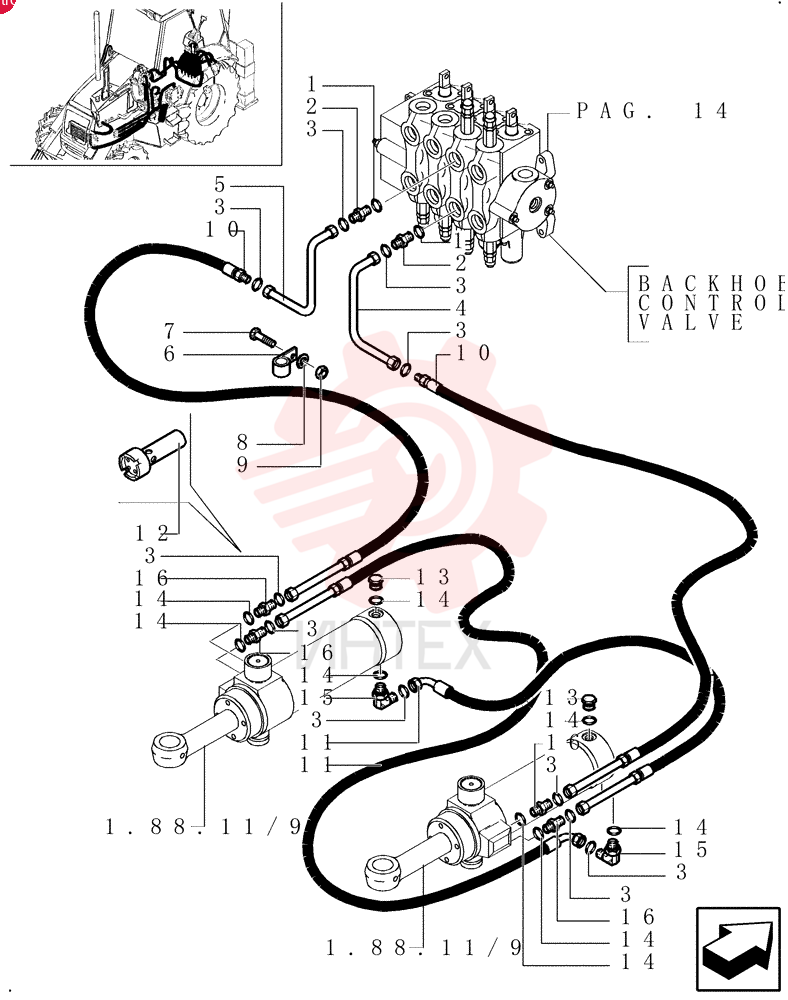

(575E) - TRACTOR LOADER BACKHOE (1/96-)
/
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro 167269 (4)

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro 167269 (4)

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro 167269 (4)

1 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro

2 390955S36

  • 390955S36 - HYD CONNECTOR

3 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

4 85802700

  • 85802700 - HYD TUBE

5 85802701

  • 85802701 - HYD TUBE

6 85802954

  • 85802954 - CLAMP
  • 12mm ID

7 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

8 14496404

  • 14496404 - WASHER
  • M6 x 12 x 2 Thk

9 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8

10 85812198

  • 85812198 - HYDRAULIC HOSE
  • 9.53mm ID x 550mm L

11 85812197

  • 85812197 - HYDRAULIC HOSE
  • 9.53mm ID x 750mm L

12 85802851

  • 85802851 - BANJO BOLT

13 85802955

  • 85802955 - PLUG
  • 3/4" Male

14 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

15 9992307

  • 9992307 - 90 ELBOW
  • 90 Degree
  • 13/16"-16 x 3/4"-16 Adj
  • ORFS

16 9992305

  • 9992305 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 3/4" - 16 ORB
