New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

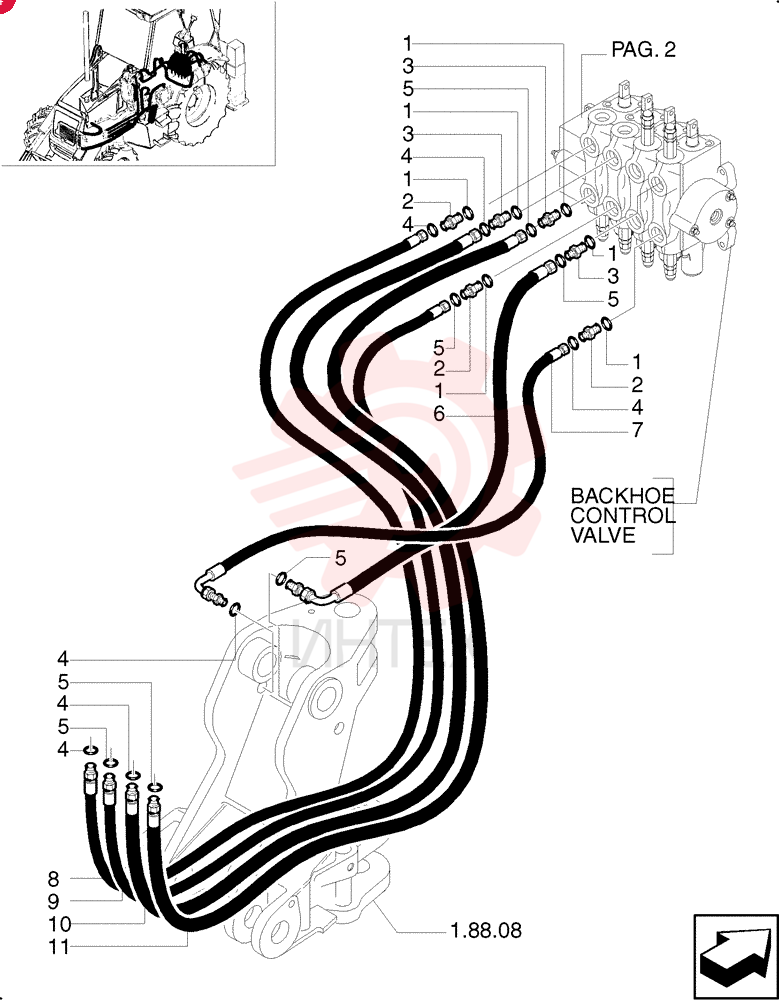

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro 167269 (1)

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro 167269 (1)

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro 167269 (1)

1 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro

2 83963000

  • 83963000 - FITTING
  • 1" - 14 ORFS x 7/8" - 14 ORB

3 85802642

  • 85802642 - HYD CONNECTOR

4 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

5 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro

6 85812151

  • 85812151 - FLEXIBLE HOSE
  • 590mm lg

7 85812143

  • 85812143 - FLEXIBLE HOSE
  • 590mm lg

8 85812176

  • 85812176 - FLEXIBLE HOSE
  • 12.7mm ID x 1250mm L

9 85812152

  • 85812152 - FLEXIBLE HOSE
  • 15.88mm ID x 1200mm L

10 85812177

  • 85812177 - FLEXIBLE HOSE
  • 12.7mm ID x 1200mm L

11 85812153

  • 85812153 - FLEXIBLE HOSE
  • 15.88mm ID x 1240mm L
