(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

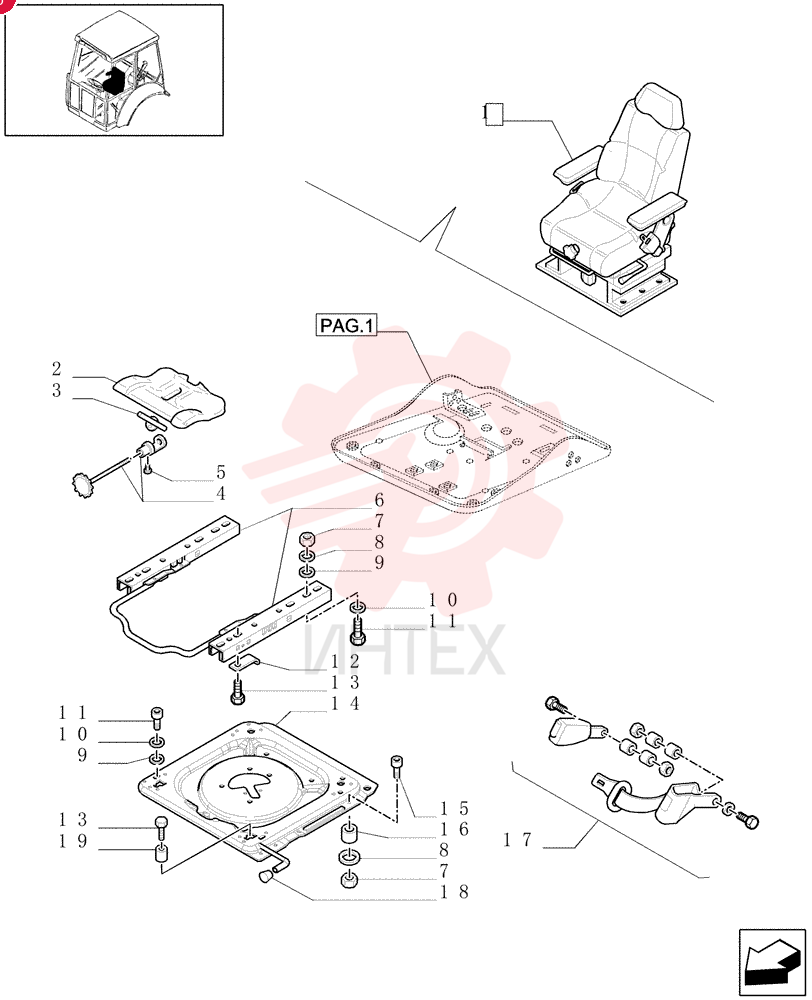

DRIVER SEAT 85815543 (2)

DRIVER SEAT 85815543 (2)

DRIVER SEAT 85815543 (2)

1 85815543

  • 85815543 - DRIVER SEAT

2 71485488

  • 71485488 - CONTROL

3 85817463

  • 85817463 - PLATE

4 85817464

  • 85817464 - ADJUSTMENT SCREW

5 9962962

  • 9962962 - SCREW
  • M5 x 10mm
  • M5 x 10

6 85817484

  • 85817484 - KIT

7 85817458

  • 85817458 - NUT

8 9960692

  • 9960692 - WASHER

9 9958776

  • 9958776 - SPACER

10 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

11 14306321

  • 14306321 - HEX SOC SCREW
  • M8 x 20mm
  • Cl 8.8

12 85817457

  • 85817457 - STOP

13 85817467

  • 85817467 - SCREW
  • M8 x 1.25 x 1.25mm
  • M8 x 25

14 85817483

  • 85817483 - ADJUSTING PLATE

15 85817465

  • 85817465 - SCREW
  • M8 x 40mm
  • M8 x 40

16 85817456

  • 85817456 - SPACER

17 85815578

  • 85815578 - SAFETY BELT
  • 2"

18 85817482

  • 85817482 - KNOB

19 85819813

  • 85819813 - BUSHING
