(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

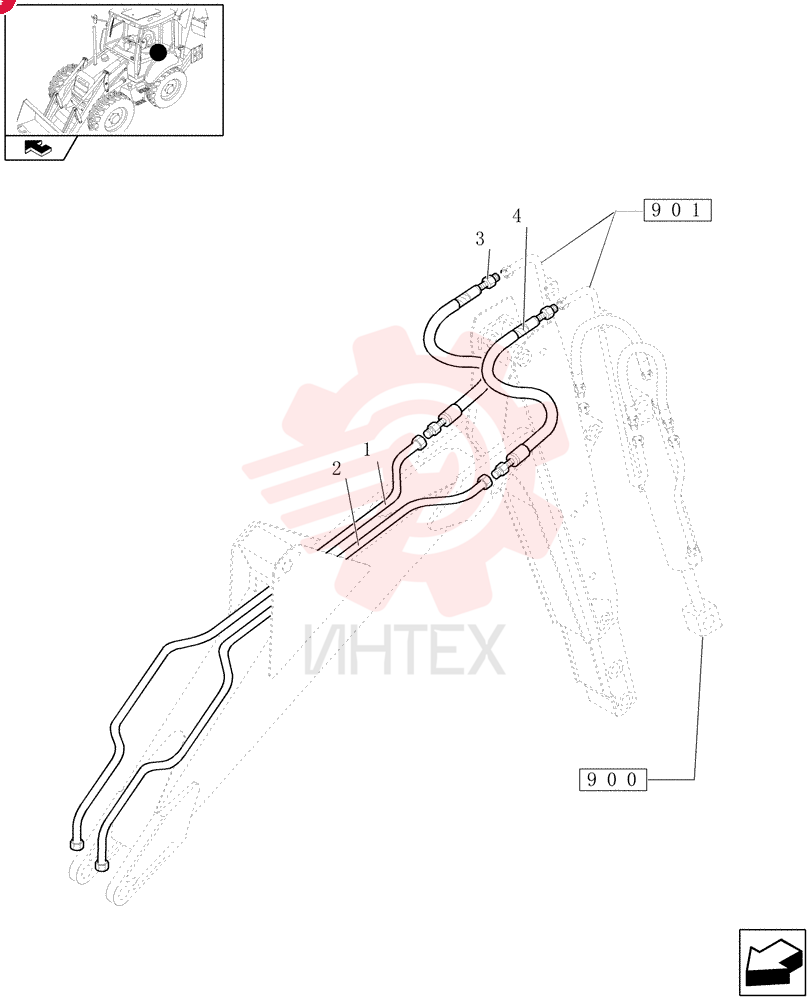

TUBE 85815674 (1)

TUBE 85815674 (1)

TUBE 85815674 (1)

1 85815674

  • 85815674 - TUBE

2 85815676

  • 85815676 - HYD TUBE

3 85817106

  • 85817106 - FLEXIBLE HOSE
  • 15.88mm ID x 1100mm L

4 85817107

  • 85817107 - FLEXIBLE HOSE
  • 12.7mm ID x 1090mm L
