New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

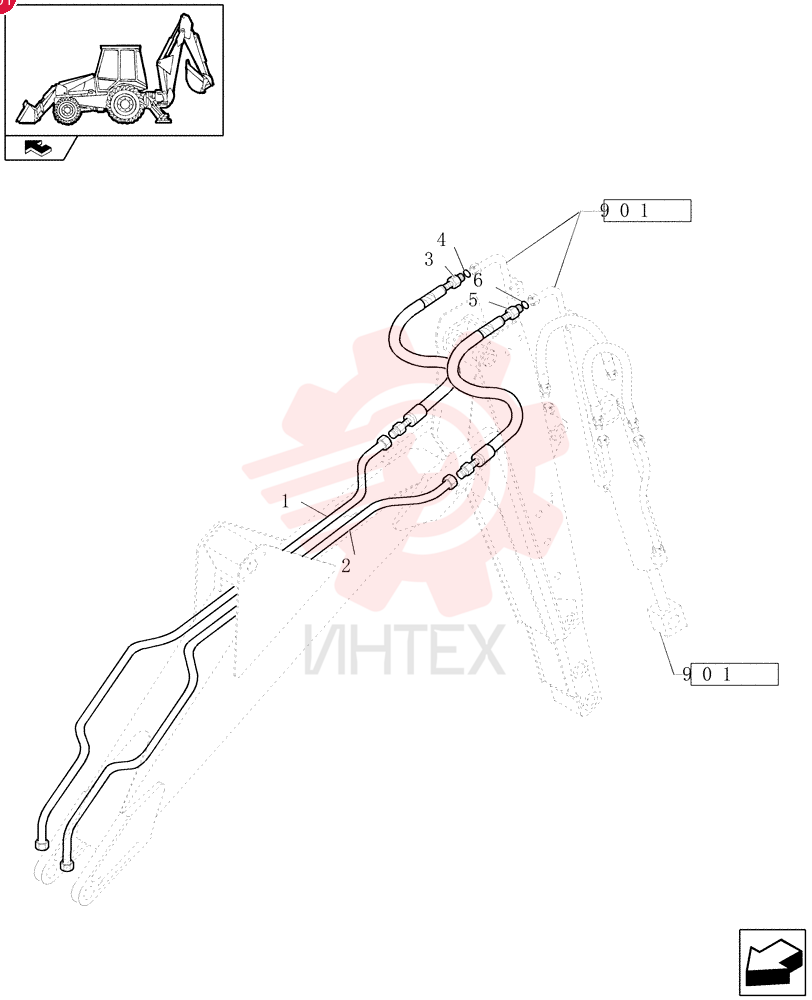

TUBE 85815674 (3)

TUBE 85815674 (3)

TUBE 85815674 (3)

1 85815674

  • 85815674 - TUBE

2 85815676

  • 85815676 - HYD TUBE

3 85817106

  • 85817106 - FLEXIBLE HOSE
  • 15.88mm ID x 1100mm L

4 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro

5 85817107

  • 85817107 - FLEXIBLE HOSE
  • 12.7mm ID x 1090mm L

6 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro
