New Holland Construction
/
(B110B) - BACKHOE LOADER TIER 3 (2008)
/

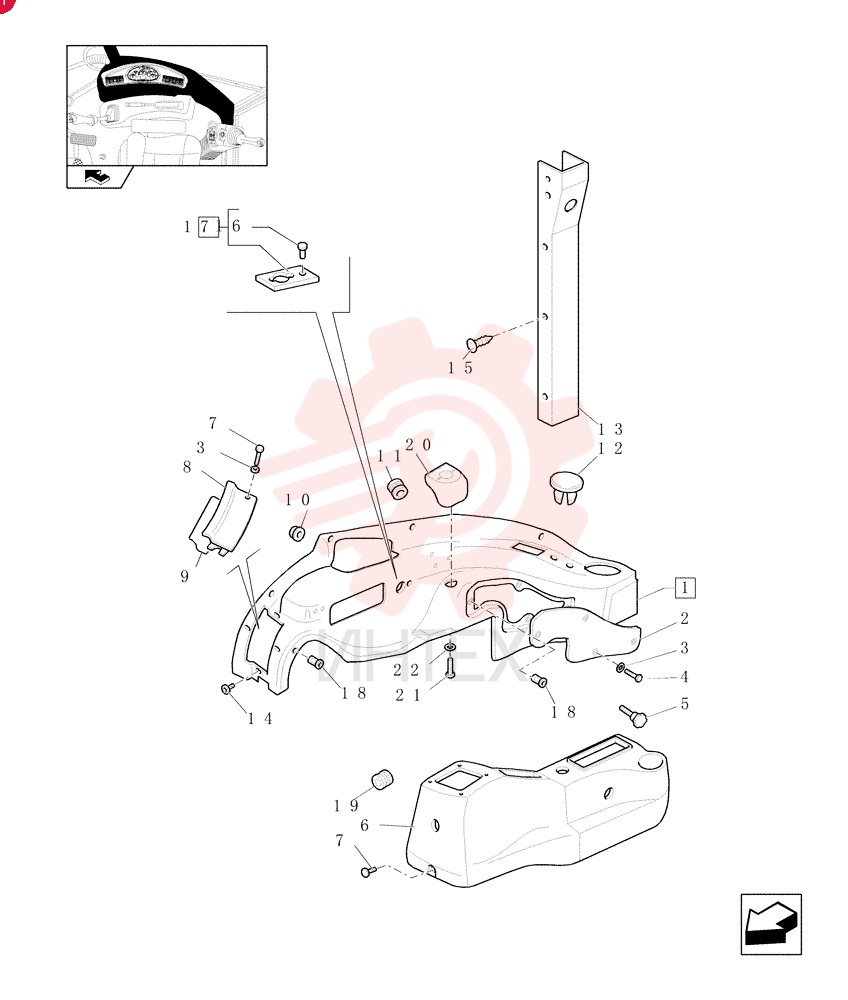

SOFT TRIM 87543600

SOFT TRIM 87543600

SOFT TRIM 87543600

1 87543600

  • 87543600 - SOFT TRIM

2 87743161

  • 87743161 - COVER

3 85801649

  • 85801649 - SOFT TRIM

4 12647701

  • 12647701 - WASHER
  • 6.15mm ID x 21mm OD x 1mm Thk

5 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

6 85805323

  • 85805323 - KNOB

7 87319785

  • 87319785 - SOFT TRIM

8 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

9 85825191

  • 85825191 - COVER

10 85806023

  • 85806023 - SEALING STRIP

11 14084814

  • 14084814 - FLANGE NUT
  • M8 x 1.25
  • Flg

12 14059314

  • 14059314 - FLANGE NUT
  • Hex
  • M8 x 1
  • Cl 8

13 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

14 79111815

  • 79111815 - PLUG
  • 14-15mm OD

15 85819285

  • 85819285 - SOFT TRIM

16 85805819

  • 85805819 - THREADED BUSHING
  • M5 x 17mm L

17 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

18 10427201

  • 10427201 - RIVET
  • 4mm OD x 5mm L

19 85827548

  • 85827548 - PLATE

20 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

21 87517471

  • 87517471 - INSULATING RING
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk
  • Not Split without Diaphragm
  • CA

22 87540633

  • 87540633 - DASHBOARD

23 13274217

  • 13274217 - SCREW
  • Pozidriv Pan Hd
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

24 12647701

  • 12647701 - WASHER
  • 6.15mm ID x 21mm OD x 1mm Thk
