(B110B) - BACKHOE LOADER TIER 3 (2008)
/

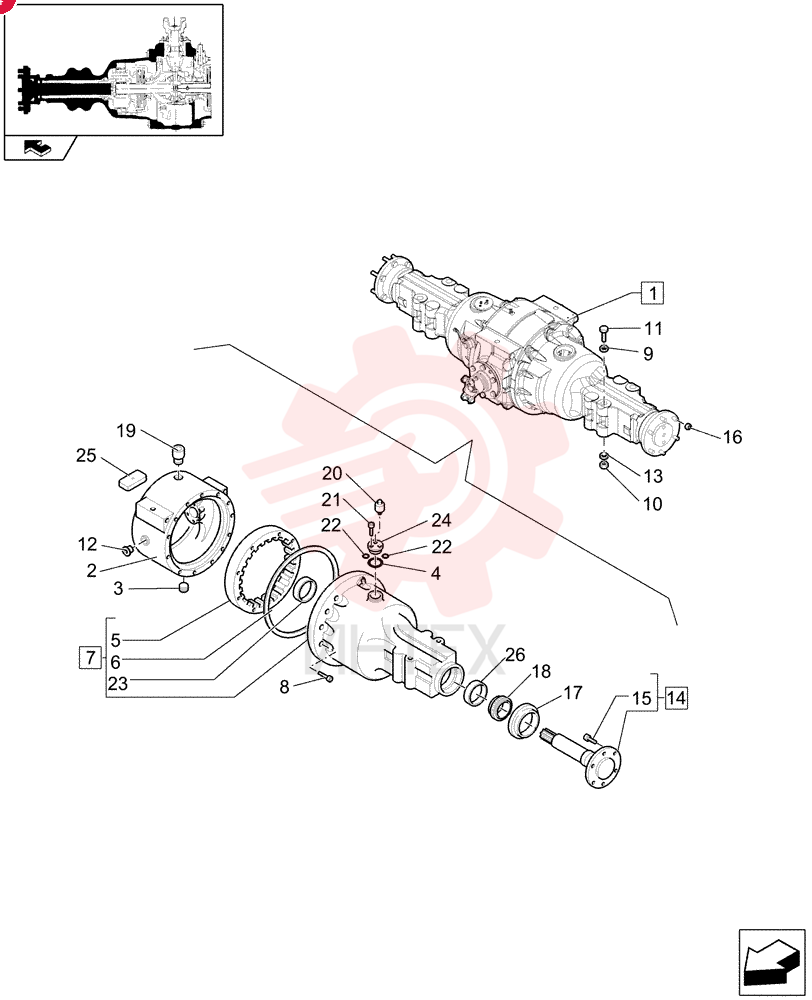

REAR AXLE 87542397

REAR AXLE 87542397

REAR AXLE 87542397

1 87542397

  • 87542397 - REAR AXLE

2 86517774

  • 86517774 - HOUSING

3 83909107

  • 83909107 - DRAIN PLUG
  • Hdls Sq Skt
  • 3/4" - 14

4 81845041

  • 81845041 - O-RING
  • 2.625" ID x 0.21" Width

5 86536749

  • 86536749 - PLANETARY GEAR

6 83417133

  • 83417133 - O-RING
  • 3.63mm Thk x 336.91mm ID

7 86552795

  • 86552795 - AXLE HOUSING

8 86552794

  • 86552794 - AXLE HOUSING

9 81809406

  • 81809406 - BOLT
  • Hex
  • 5/8" - 11 x 2-3/4"
  • Grade 5

10 86505999

  • 86505999 - BOLT
  • Hex
  • 5/8" - 11 x 2"
  • Gr 5

11 14497331

  • 14497331 - WASHER
  • 25mm ID x 44mm OD x 4mm Thk

12 12575321

  • 12575321 - NUT
  • M24 x 2
  • Cl 10

13 15999434

  • 15999434 - SCREW
  • M24 x 2 x 220mm
  • Cl 10.9

14 80263136

  • 80263136 - MAGNETIC PLUG

15 11200679

  • 11200679 - LOCK WASHER
  • 24mm ID x 46mm OD x 6mm Thk

16 86511646

  • 86511646 - AXLE

17 83955490

  • 83955490 - SCREW
  • 3/4"-16 x 59mm

18 87348000

  • 87348000 - NUT

19 81866390

  • 81866390 - OIL SEAL
  • 88.52mm ID x 123.29mm OD x 22.94mm Thk

20 81818397

  • 81818397 - BEARING ASSY
  • 66.67mm ID x 22mm W

21 81812912

  • 81812912 - BREATHER

22 81820047

  • 81820047 - BLEEDER
  • Bleeder
  • 3/8" - 24 x 1.1.7"

23 82895716

  • 82895716 - SCREW
  • 1/4" - 20 x 1 3/4"

24 83925620

  • 83925620 - O-RING
  • 0.103" Thk x 0.362" ID
  • -110
  • Cl 6
  • 90 Duro

25 82959373

  • 82959373 - CUP

26 81878514

  • 81878514 - MANIFOLD

27 328955A1

  • 328955A1 - MAGNET
  • 22.23mm W x 47.63mm L x 9.91mm Thk

28 163044

  • 163044 - BEARING CUP
  • 110.03mm OD x 18.82mm W
