(B110B) - BACKHOE LOADER TIER 3 (2008)
/

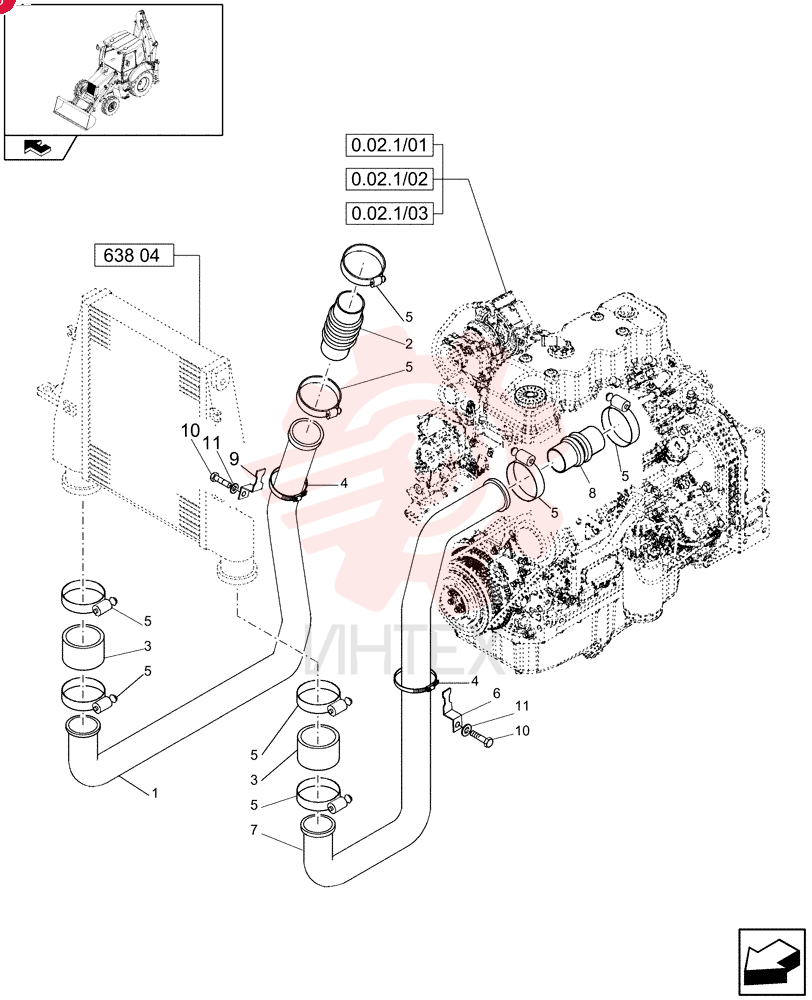

TUBE,2" OD 87548192 (1)

TUBE,2" OD 87548192 (1)

TUBE,2" OD 87548192 (1)

1 87548192

  • 87548192 - TUBE
  • 2" OD

2 86982962

  • 86982962 - INTAKE AIR HOSE
  • 50.84 mm ID x 174.00 mm

3 86982960

  • 86982960 - A/C HOSE
  • 50.80 mm ID x 75.00 mm

4 86624194

  • 86624194 - HOSE CLAMP
  • 1.81" - 2.75"
  • Worm

5 87410724

  • 87410724 - CLAMP
  • 44.45mm - 66.67mm

6 87561489

  • 87561489 - BRACKET

7 87554030

  • 87554030 - TUBE
  • 47.5 mm ID x 50.8 mm OD x 576.2
  • 520 mm L

8 86994498

  • 86994498 - AIR HOSE
  • 50.80 mm ID x 127.00 mm

9 86983163

  • 86983163 - BRACKET

10 47042342

  • 47042342 - SCREW

11 47048992

  • 47048992 - LOCK WASHER
  • 8mm ID
